06-449714 (131-689G372) - Hechinger Lawn Tractor (1991) 689g372 Parts Diagram

Lawn Tractor

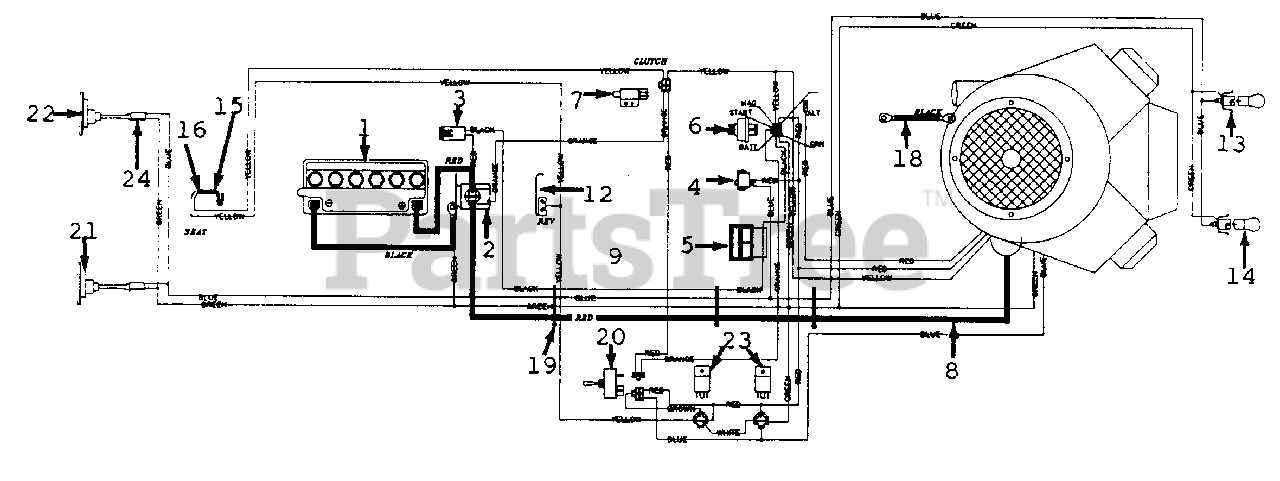

689g372 Parts Diagram

  • Title

1

MTD 725-1430

Battery
(Superseded to 753-0608)

Note: (275 Cold Crank Amps)

$

$

Not available

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

MTD 725-1625

Fuse 7.5 Amp.

$8.49

$

Usually ships in 3-6 days

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

6

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

7

MTD 725-3169A

Safety Switch
(Superseded to 925-04039)

Note: (Clutch)

$24.99

$

In Stock, Qty 9

0

8

MTD 725-1081

Electric Wire 30" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

MTD 629-0052

Wire Hamess

$

$

Not available

MTD 725-0803C

Safety Switch
(Superseded to 725-0803B)

Note: (Deck)

$33.99

$

In Stock, only 1 left!

0

12

MTD 725-0759

Safety Switch
(Superseded to 753-0579)

Note: (Reverse)

$

$

Not available

13

MTD 725-1058A

Socket
(Superseded to 925-1058A)

$

$

Not available

14

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

15

MTD 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$6.49

$

In Stock, Qty 7

0

16

MTD 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 8

0

18

MTD 725-0980

Ground Wire - 7.5" Lg.

$

$

Not available

19

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

20

MTD 725-0893

PTO Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

21

MTD 725-3018

Taillight Ass'y.

$

$

Currently unavailable

22

MTD 725-3020

Taillight Bulb

$

$

Not available

23

MTD 725-1375

Relay
(Superseded to 925-1375)

$71.99

$

In Stock, Qty 6

0

24

MTD 725-1380

Taillight Harness

$

$

Not available
