06-42ST07 - Toro 42" Snow Thrower Attachment (SN: 020000001 - 029999999) (1992) AUGER ASSEMBLY Parts Diagram

42" Snow Thrower Attachment

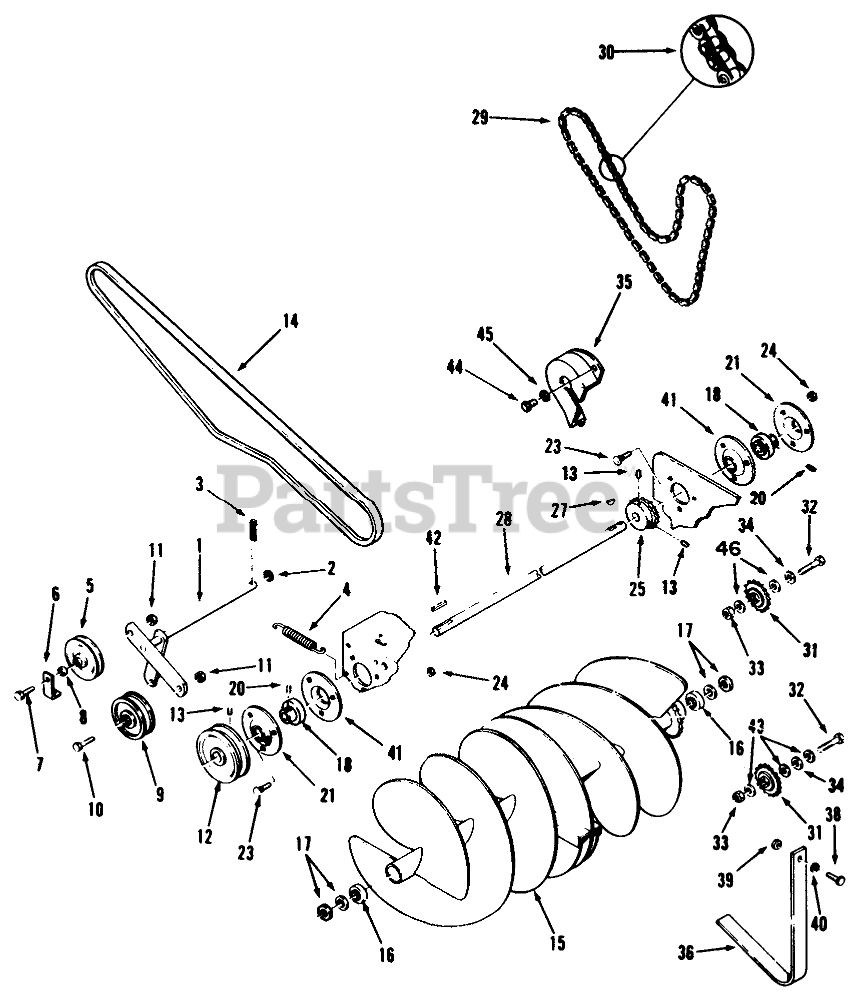

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 78-0480

Arm Idler
(Superseded to 78-0480-01)

$102.99

$

Usually ships in 3-6 days

0

2

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

3

Toro 932009

Cotter Pin
(Superseded to 3272-9)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 78-7480

SPRING-EXTENSION

$33.99

$

Usually ships in 3-6 days

0

5

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$22.99

$

In Stock, only 1 left!

0

6

Toro 7450

Spacer
(Superseded to 7450-01)

$13.99

$

Usually ships in 3-6 days

0

7

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 104662

SPACER

$8.99

$

Usually ships in 3-6 days

0

9

Toro 112425

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 1 left!

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 113356

PULLEY

$89.99

$

In Stock, only 1 left!

0

13

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 9750

V-BELT

$50.99

$

In Stock, only 1 left!

0

15

Toro 4467

Auger
(Superseded to 105-1478)

$

$

Not available

16

Toro 101480

BEARING-BALL

$49.99

$

In Stock, only 1 left!

0

17

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

18

Toro 110569

BEARING AND COLLAR

$108.99

$

In Stock, only 3 left!

0

20

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 110568

Flange

$18.99

$

In Stock, only 3 left!

0

23

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 78-0850

SPROCKET-14T H.T.
(Superseded to 78-0850-01)

$146.99

$

Usually ships in 3-6 days

0

27

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

28

Toro 113320

Shaft
(Superseded to 113320-01)

$279.99

$

Usually ships in 3-6 days

0

29

Toro 6416

CHAIN

$188.99

$

In Stock, only 1 left!

0

30

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

$5.99

$

In Stock, only 1 left!

0

31

Toro 2174

Idler Sprocket
(Superseded to 93-1614)

$54.99

$

In Stock, Qty 8

0

32

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 5

0

33

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

34

Toro 6417

SPACER

$

$

Not available

35

Toro 109218

GUARD-CHAIN

$74.99

$

Usually ships in 3-6 days

0

36

Toro 109244

Guard
(Superseded to 109244-01)

$80.99

$

Usually ships in 3-6 days

0

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

40

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

41

Toro 110568

Flange

$18.99

$

In Stock, only 3 left!

0

42

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.49

$

In Stock, only 4 left!

0

43

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

45

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0
