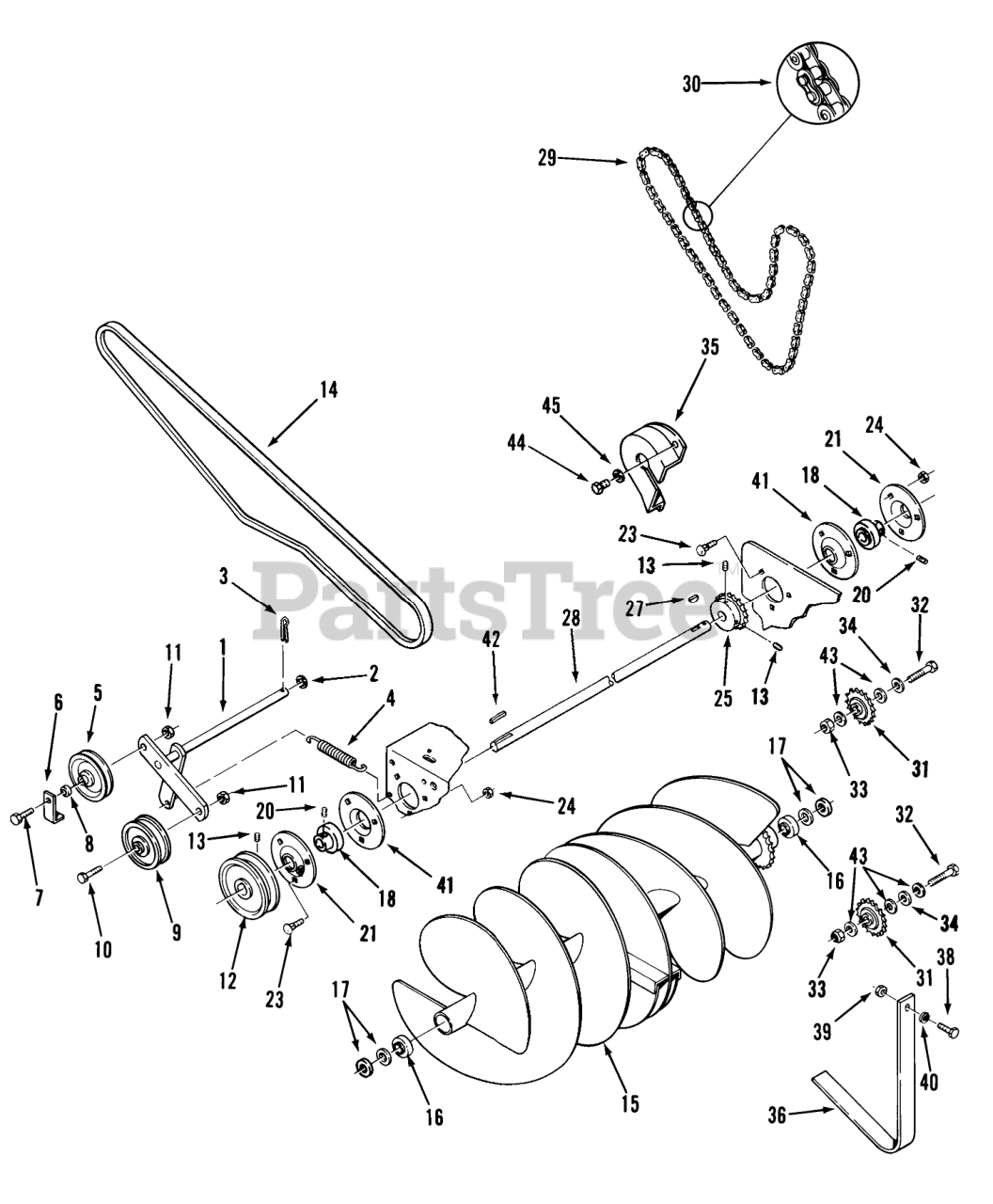

06-42ST05 - Toro 42" Snow Thrower Attachment (1988) SNOWTHROWER-42 IN. (107CM) VEHICLE IDENTIFICATION NUMBER 06-42ST05 Parts Diagram

42" Snow Thrower Attachment

SNOWTHROWER-42 IN. (107CM) VEHICLE IDENTIFICATION NUMBER 06-42ST05 Parts Diagram

  • Title

1

Toro 9596

ASSY IDLER ARM R

$

$

Not available

2

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

3

Toro 932009

Cotter Pin
(Superseded to 3272-9)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 6651

SPRING R

Note: Indicates Part of Loose Parts Package 807140.

$24.99

$

In Stock, only 1 left!

0

5

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$25.99

$

In Stock, only 2 left!

0

6

Toro 7450

Spacer
(Superseded to 7450-01)

$14.99

$

Usually ships in 3-6 days

0

7

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

8

Toro 104662

SPACER

$8.99

$

In Stock, only 2 left!

0

9

Toro 112425

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 2 left!

0

10

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

11

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

12

Toro 113356

PULLEY

$100.99

$

In Stock, only 1 left!

0

13

Toro 909862

Set Screw
(Superseded to 3246-2)

Note: Indicates Part of Loose Parts Package 807140.

$0.99

$

Usually ships in 3-6 days

0

14

Toro 9750

V-BELT

$56.99

$

In Stock, only 2 left!

0

15

Toro 4467

Auger
(Superseded to 105-1478)

$

$

Not available

16

Toro 101480

BEARING-BALL

$56.99

$

In Stock, only 3 left!

0

17

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

18

Toro 110569

BEARING AND COLLAR

$110.99

$

In Stock, only 2 left!

0

20

Toro 909963

SET SCREW

$

$

Not available

21

Toro 110567

FLANGE-ZERK RELUBE

$25.99

$

In Stock, only 2 left!

0

23

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

24

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

25

Toro 113321

Sprocket 14T x 40
(Superseded to 78-0850-01)

$170.99

$

Usually ships in 3-6 days

0

27

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

28

Toro 113320

Shaft
(Superseded to 113320-01)

$319.99

$

Usually ships in 3-6 days

0

29

Toro 6416

CHAIN

$219.99

$

In Stock, only 1 left!

0

30

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

$6.49

$

In Stock, only 1 left!

0

31

Toro 2174

Idler Sprocket
(Superseded to 93-1614)

$63.99

$

In Stock, Qty 8

0

32

Toro 908061

Bolt 1/2-13 X 2
(Superseded to 325-8)

$5.49

$

In Stock, Qty 17

0

33

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

34

Toro 6417

SPACER

$

$

Not available

35

Toro 109218

GUARD-CHAIN

$76.99

$

Usually ships in 3-6 days

0

36

Toro 109244

Guard
(Superseded to 109244-01)

$82.99

$

Usually ships in 3-6 days

0

38

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

39

Toro 915968

Nut 1/4-20
(Superseded to 32149-2)

$2.99

$

In Stock, Qty 20+

0

40

Toro 920037

WASHER

$

$

Not available

41

Toro 110568

Flange

$19.99

$

In Stock, only 3 left!

0

42

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

Note: Indicates Part of Loose Parts Package 807140.

$6.99

$

In Stock, Qty 12

0

43

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

44

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

45

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0
