42" Snow Blade

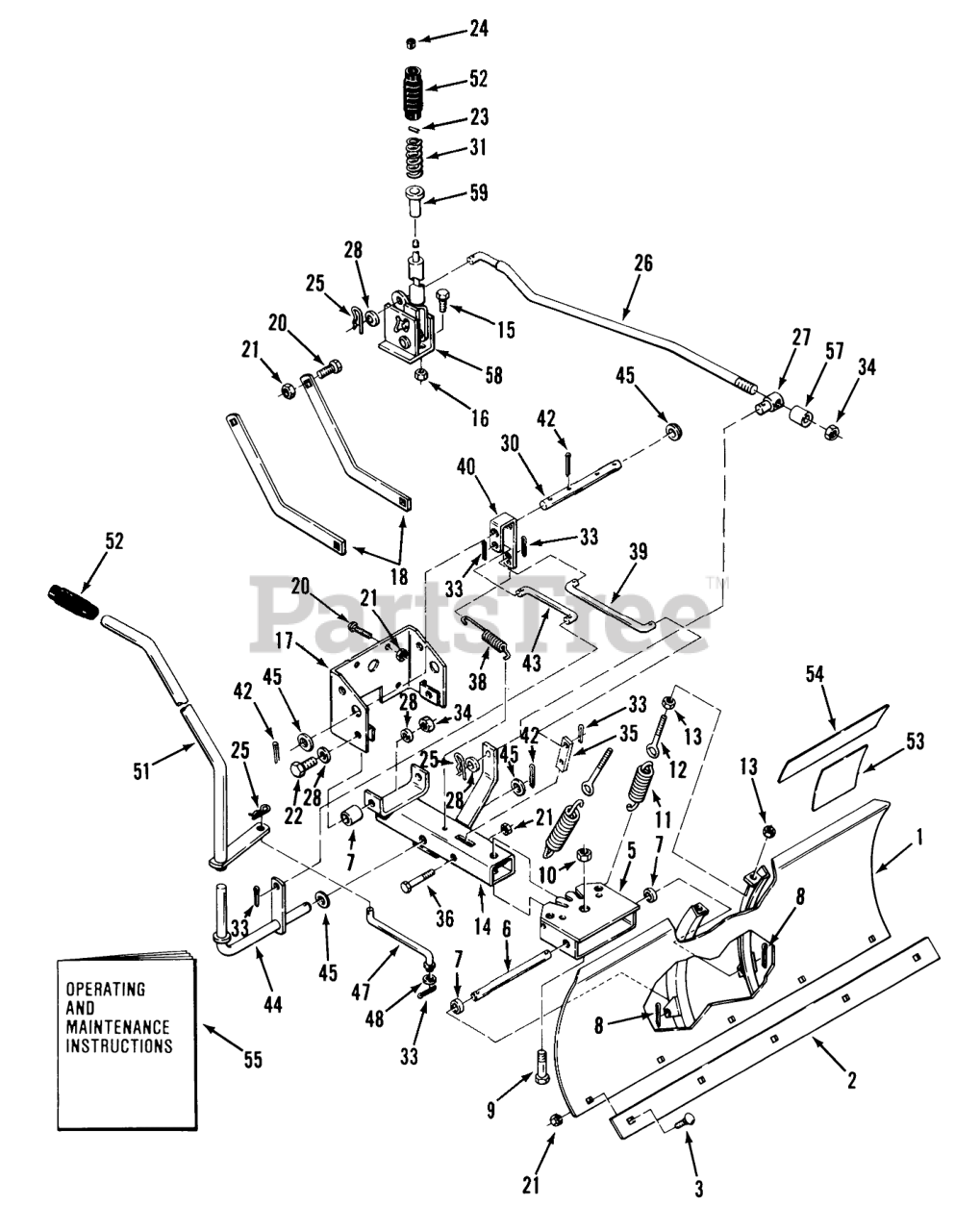

SNOW BLADE-42" (107 CM) VEHICLE IDENTIFICATION NUMBER 16-42BL02 Parts Diagram

  • Title

1

Toro 108727

Blade
(Superseded to 92-6037-03)

$

$

Not available

2

Toro 2346

Plate
(Superseded to 92-6034-03)

$94.99

$

Usually ships in 3-6 days

0

3

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

5

Toro 114152

ASS'Y-QUADRANT R
(Superseded to 92-6043-03)

$

$

Not available

6

Toro 4564

ROD-LOWER

Note: Indicates part of Loose Parts Package 807196.

$39.99

$

Usually ships in 3-6 days

0

7

Toro 106898

Spacer
(Superseded to 92-6035)

Note: Indicates part of Loose Parts Package 807196.

$

$

Not available

8

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

Note: Indicates part of Loose Parts Package 807196.

$0.99

$

Usually ships in 3-6 days

0

9

Toro 908254

HEX HD CAP SCREW

$

$

Not available

10

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

11

Toro 4629

SPRING

Note: Indicates part of Loose Parts Package 807196.

$82.99

$

In Stock, only 2 left!

0

12

Toro 100653

EYEBOLT

Note: Indicates part of Loose Parts Package 807196.

$25.99

$

Usually ships in 3-6 days

0

13

Toro 915236

Nut
(Superseded to 9152366)

Note: Indicates part of Loose Parts Package 807196.

$3.49

$

In Stock, only 1 left!

0

14

Toro 114980

Frame

$

$

Not available

15

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

Note: Indicates part of Loose Parts Package 807196.

$1.49

$

In Stock, Qty 14

0

16

Toro 915662

Nut
(Superseded to 3296-29)

Note: Indicates part of Loose Parts Package 807196.

$2.49

$

In Stock, Qty 20+

0

17

Toro 114976

Front Support

$

$

Not available

18

Toro 114902

BRACE R

$

$

Not available

20

Toro 900063

Bolt
(Superseded to 323-12)

Note: Indicates part of Loose Parts Package 807196.

$2.99

$

In Stock, Qty 20+

0

21

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates part of Loose Parts Package 807196.

$2.99

$

In Stock, Qty 20+

0

22

Toro 908059

Hhcs
(Superseded to 325-6)

Note: Indicates part of Loose Parts Package 807196.

$3.49

$

In Stock, only 4 left!

0

23

Toro 933148

PIN-SPIROL

Note: Indicates part of Loose Parts Package 807196.

$0.99

$

In Stock, only 3 left!

0

24

Toro 105316

CAP-ROD, PLUNGER

Note: Indicates part of Loose Parts Package 807196.

$1.49

$

In Stock, Qty 20+

0

25

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

26

Toro 114978

ASS'Y-LIFT ROD

$

$

Not available

27

Toro 102213

TRUNION

Note: Indicates part of Loose Parts Package 807196.

$78.99

$

Usually ships in 3-6 days

0

28

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates part of Loose Parts Package 807196.

$0.99

$

In Stock, Qty 20+

0

30

Toro 114975

SHAFT R
(Superseded to 92-6044)

$53.99

$

Usually ships in 3-6 days

0

31

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

33

Toro 932016

Pop Rivet
(Superseded to 3272-10)

Note: Indicates part of Loose Parts Package 807196.

$1.49

$

In Stock, Qty 11

0

34

Toro 915665

Nut
(Superseded to 3296-23)

Note: Indicates part of Loose Parts Package 807196.

$1.49

$

In Stock, Qty 20+

0

35

Toro 108745

LATCH-QUADRANT R
(Superseded to 92-6038-03)

$

$

Not available

36

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, Qty 20+

0

38

Toro 102572

SPRING

$23.99

$

Usually ships in 3-6 days

0

39

Toro 108747

ROD-LATCH

$

$

Not available

40

Toro 112483

BELLCRANK-LATCH R
(Superseded to 92-6041-03)

$

$

Not available

42

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

43

Toro 108749

ROD-BELLCRANK

$

$

Not available

44

Toro 114150

ASS'Y-HANDLE PIVO R
(Superseded to 92-6042-03)

$

$

Not available

45

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

47

Toro 108753

ROD-ANGLING

$

$

Not available

48

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

51

Toro 108754

ASSY-HANDLE R
(Superseded to 92-6039-03)

$

$

Not available

52

Toro 6542

HANDGRIP

$16.99

$

Usually ships in 3-6 days

0

53

Toro 113915

DECAL-DANGER

$

$

Not available

54

Toro 117516

Decal
(Superseded to 76-1330)

$9.99

$

In Stock, only 1 left!

0

55

Toro 810454R1

Operating and Maintenance Instructions

$

$

Currently unavailable

56

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

57

Toro 111580

Spacer
(Superseded to 92-6036)

Note: Indicates part of Loose Parts Package 807196.

$9.99

$

Usually ships in 3-6 days

0

58

Toro 112349

ASS'Y-LIFT HANDLE R

$

$

Not available

59

Toro 8130

RETAINER-SPRING

$23.99

$

Usually ships in 3-6 days

0
