06-37SK01 - Toro 37" Snow Thrower Attachment (1988) SNOWTHROWER-37" (94 CM) VEHICLE IDENTIFICATION NUMBER 06-37SK01 Parts Diagram

37" Snow Thrower Attachment

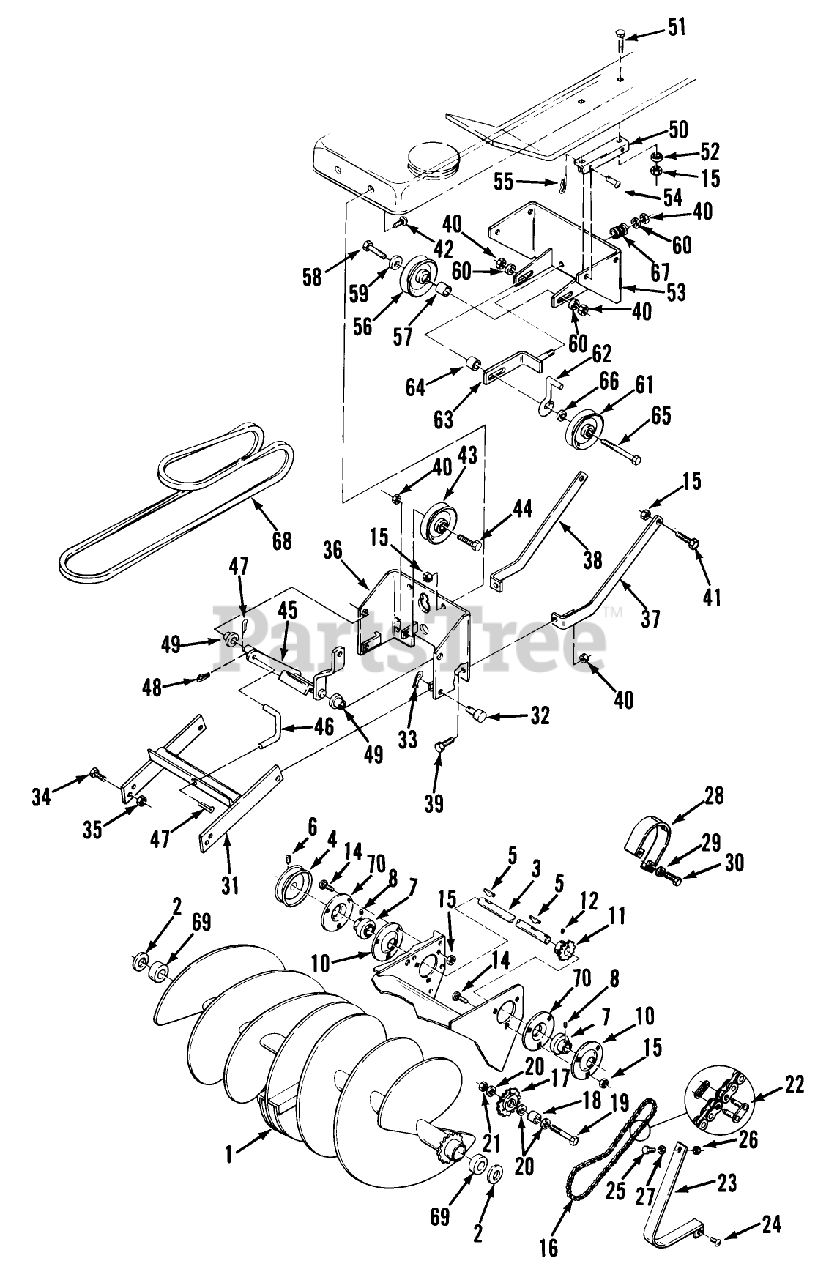

SNOWTHROWER-37" (94 CM) VEHICLE IDENTIFICATION NUMBER 06-37SK01 Parts Diagram

  • Title

1

Toro 4467

Auger
(Superseded to 105-1478)

$

$

Not available

2

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

3

Toro 113851

SHAFT

$307.99

$

Usually ships in 3-6 days

0

4

Toro 113356

PULLEY

$100.99

$

In Stock, only 1 left!

0

5

Toro 937159

Key
(Superseded to 937225)

$5.49

$

Usually ships in 3-6 days

0

6

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

7

Toro 110569

BEARING AND COLLAR

$110.99

$

In Stock, only 2 left!

0

8

Toro 909963

SET SCREW

$

$

Not available

10

Toro 110567

FLANGE-ZERK RELUBE

$25.99

$

In Stock, only 2 left!

0

11

Toro 113321

Sprocket 14T x 40
(Superseded to 78-0850-01)

$170.99

$

Usually ships in 3-6 days

0

12

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

14

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

15

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

16

Toro 112715

Chain

$

$

Not available

17

Toro 2174

Idler Sprocket
(Superseded to 93-1614)

$63.99

$

In Stock, Qty 8

0

18

Toro 6417

SPACER

$

$

Not available

19

Toro 908061

Bolt 1/2-13 X 2
(Superseded to 325-8)

$5.49

$

In Stock, Qty 17

0

20

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

21

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

22

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

$6.49

$

In Stock, only 1 left!

0

23

Toro 109219

Guard-Outer
(Superseded to 93-1619-01)

$46.99

$

In Stock, only 1 left!

0

24

Toro 1391

SCREW

$

$

Not available

25

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

26

Toro 915968

Nut 1/4-20
(Superseded to 32149-2)

$2.99

$

In Stock, Qty 20+

0

27

Toro 920037

WASHER

$

$

Not available

28

Toro 109214

GUARD-CHAIN R

$115.99

$

Usually ships in 3-6 days

0

29

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

30

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

31

Toro 109211

Mounting Frame

$

$

Not available

32

Toro 932124

PIN

Note: Indicates part of Loose Parts Package Num 807155.

$5.49

$

Usually ships in 3-6 days

0

33

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates part of Loose Parts Package Num 807155.

$1.99

$

In Stock, Qty 20+

0

34

Toro 908034

BOLT
(Superseded to 323-6)

Note: Indicates part of Loose Parts Package Num 807155.

$2.99

$

In Stock, Qty 20+

0

35

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates part of Loose Parts Package Num 807155.

$2.99

$

In Stock, Qty 20+

0

36

Toro 113850

ASS'Y-FRONT SUPPO R

$

$

Not available

37

Toro 108605

BRACE-FRAME MT LH R

$

$

Not available

38

Toro 108606

BRACE-FRAME MT RH R

$

$

Not available

39

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

40

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

41

Toro 908020

Bolt
(Superseded to 322-6)

Note: Indicates part of Loose Parts Package Num 807155.

$4.49

$

In Stock, Qty 20+

0

42

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

Note: Indicates part of Loose Parts Package Num 807155.

$1.49

$

In Stock, Qty 14

0

43

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

44

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

45

Toro 109234

ASSY BELLCRANK LI R

$

$

Not available

46

Toro 109206

Frame Lift Rod
(Superseded to 114824)

$

$

Not available

47

Toro 932016

Pop Rivet
(Superseded to 3272-10)

Note: Indicates part of Loose Parts Package Num 807155.

$1.49

$

In Stock, Qty 11

0

48

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

49

Toro 6254

BUSHING

$20.99

$

In Stock, only 2 left!

0

50

Toro 108963

Quick Attach Plate

Note: Indicates part of Loose Parts Package Num 807155.

$

$

Not available

51

Toro 900037

Bolt
(Superseded to 3230-1)

Note: Indicates part of Loose Parts Package Num 807155.

$1.99

$

In Stock, Qty 20+

0

52

Toro 920008

WASHER 5/16 SAE

Note: Indicates part of Loose Parts Package Num 807155.

$0.99

$

In Stock, Qty 8

0

53

Toro 109231

Idler Support Bracket

Note: Indicates part of Loose Parts Package Num 807155.

$

$

Not available

54

Toro 932121

PIN

Note: Indicates part of Loose Parts Package Num 807155.

$

$

Not available

55

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

56

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

57

Toro 1982

Spacer

$

$

Not available

58

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

59

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

60

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

61

Toro 106144

Idler Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, Qty 20+

0

62

Toro 109230

RETAINER BELT R

$

$

Not available

63

Toro 109226

ASSY IDLER SLIDE R

$

$

Not available

64

Toro 100283

SPACER

Note: Indicates part of Loose Parts Package Num 807155.

$16.99

$

Usually ships in 3-6 days

0

65

Toro 908039

Bolt
(Superseded to 323-11)

Note: Indicates part of Loose Parts Package Num 807155.

$2.49

$

In Stock, Qty 20+

0

66

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates part of Loose Parts Package Num 807155.

$0.99

$

In Stock, Qty 20+

0

67

Toro 109229

SPRING-COMPRESSION

Note: Indicates part of Loose Parts Package Num 807155.

$60.99

$

Usually ships in 3-6 days

0

68

Toro 109221

Drive Belt (127)
(Superseded to 115192)

$

$

Not available

69

Toro 101480

BEARING-BALL

$56.99

$

In Stock, only 3 left!

0

70

Toro 110568

Flange

$19.99

$

In Stock, only 3 left!

0
