06-37SB01 - Toro 37" Snow Thrower Attachment (1987) SNOWTHROWER-37" (94CM) VEHICLE IDENTIFICATION NUMBER 06-37SB01 Parts Diagram

37" Snow Thrower Attachment

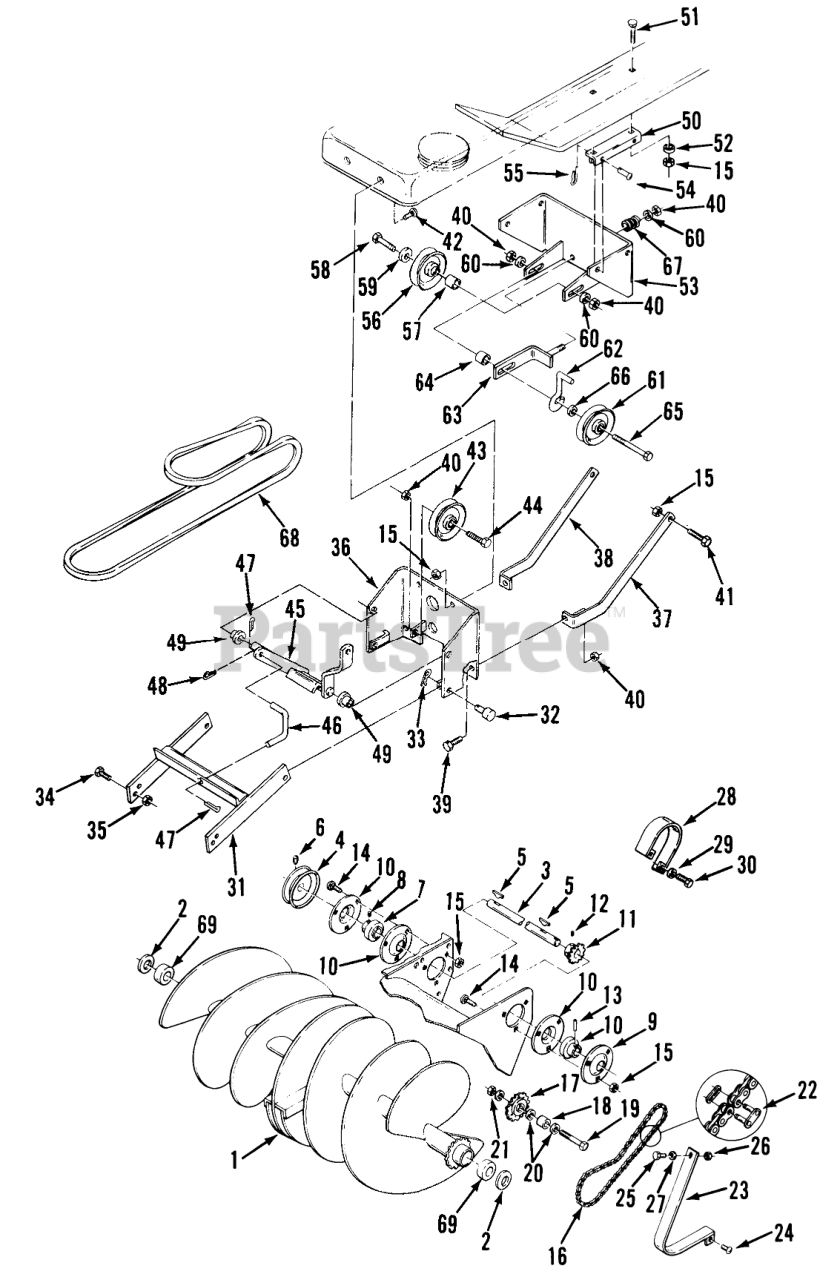

SNOWTHROWER-37" (94CM) VEHICLE IDENTIFICATION NUMBER 06-37SB01 Parts Diagram

  • Title
1

Toro 4467

Auger
(Superseded to 105-1478)

$

$

Not available

2

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

3

Toro 109213

Drive Shaft

$

$

Not available

4

Toro 8158

Pulley
(Superseded to 88-2190)

$139.99

$

Usually ships in 3-6 days

0

5

Toro 937159

Key
(Superseded to 937225)

$4.99

$

Usually ships in 3-6 days

0

6

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

7

Toro 107743

BALL BEARING

$153.99

$

Usually ships in 3-6 days

0

8

Toro 909963

SET SCREW

$

$

Not available

9

Toro 107744

LUTCO BALL BEARING

$

$

Not available

10

Toro 100906

FLANGE

$22.99

$

Usually ships in 3-6 days

0

11

Toro 109207

SPROCKET 12T R

$

$

Not available

12

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

13

Toro 933216

PIN-ROLL, SPIROL

$2.99

$

In Stock, only 1 left!

0

14

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

15

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

16

Toro 109235

Chain-1/2 Pitch #40-62 Pitches

$

$

Not available

17

Toro 2174

Idler Sprocket
(Superseded to 93-1614)

$54.99

$

In Stock, Qty 8

0

18

Toro 6417

SPACER

$

$

Not available

19

Toro 908061

Bolt 1/2-13 X 2
(Superseded to 325-8)

$5.49

$

In Stock, Qty 5

0

20

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

21

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

22

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

$5.99

$

In Stock, only 1 left!

0

23

Toro 109219

Guard-Outer
(Superseded to 93-1619-01)

$46.99

$

In Stock, only 1 left!

0

24

Toro 1391

SCREW

$

$

Not available

25

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

26

Toro 915968

Nut 1/4-20
(Superseded to 32149-2)

$2.99

$

In Stock, Qty 20+

0

27

Toro 920037

WASHER

$

$

Not available

28

Toro 109214

GUARD-CHAIN R

$101.99

$

Usually ships in 3-6 days

0

29

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

30

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

31

Toro 109211

Mounting Frame

$

$

Not available

32

$5.49

$

Usually ships in 3-6 days

0

33

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

34

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

35

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

36

Toro 109210

Front Support
(Superseded to 11-3850)

$

$

Not available

37

Toro 108605

BRACE-FRAME MT LH R

$

$

Not available

38

Toro 108606

BRACE-FRAME MT RH R

$

$

Not available

39

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

40

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

41

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

42

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

Usually ships in 3-6 days

0

43

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

44

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

45

Toro 109234

ASSY BELLCRANK LI R

$

$

Not available

46

Toro 109206

Frame Lift Rod
(Superseded to 114824)

$

$

Not available

47

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

48

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

49

Toro 6254

BUSHING

$18.99

$

In Stock, only 2 left!

0

50

Toro 108963

Quick Attach Plate

$

$

Not available

51

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

52

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

53

Toro 109231

Idler Support Bracket

$

$

Not available

54

$

$

Not available

55

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

56

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 4 left!

0

57

Toro 1982

Spacer

$

$

Not available

58

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

59

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

60

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

61

Toro 106144

Idler Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 2 left!

0

62

Toro 109230

RETAINER BELT R

$

$

Not available

63

Toro 109226

ASSY IDLER SLIDE R

$

$

Not available

64

Toro 100283

SPACER

$17.99

$

Usually ships in 3-6 days

0

65

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

66

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

67

Toro 109229

SPRING-COMPRESSION

$61.99

$

Usually ships in 3-6 days

0

68

Toro 109221

Drive Belt (127)
(Superseded to 115192)

$

$

Not available

69

Toro 101480

BEARING-BALL

$49.99

$

In Stock, only 1 left!

0
