06-322655 (123-478A372) - Hechinger Walk-Behind Mower (1993) Handle And Wheel Assembly Parts Diagram

Walk-Behind Mower

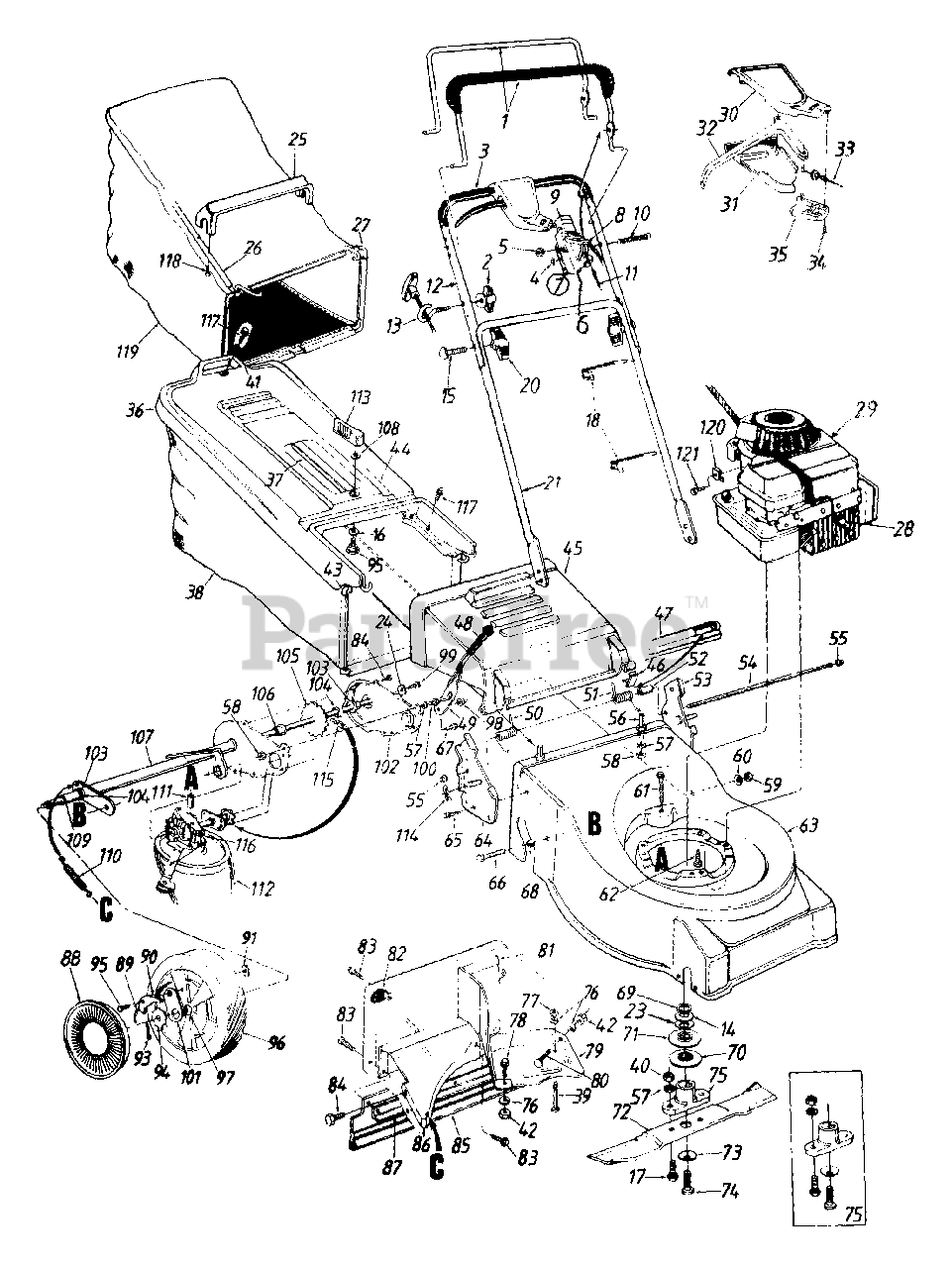

Handle And Wheel Assembly Parts Diagram

  • Title

1

MTD 647-0004A

Control Handle
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 712-0397A

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (Optional)

$7.49

$

In Stock, Qty 5

0

4

MTD 936-0501

Spr. Wash..66" I.D.

$6.99

$

Usually ships in 3-6 days

0

5

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

6

MTD 946-0671A

Throttle Cable - 55" (B&S)

$14.99

$

Usually ships in 3-6 days

0

6

MTD 946-0671A

Throttle Cable - 51" (Tecumseh)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 811-0185

Throttle Box Comp.

Note: (Incl. Ref. 4, 5, 8, 9, 10)

$36.99

$

In Stock, only 1 left!

0

8

MTD 946-0876

Throttle Lever

$8.49

$

In Stock, only 3 left!

0

9

MTD 946-0875

Throttle Body

$9.49

$

In Stock, only 3 left!

0

10

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 2 left!

0

11

MTD 946-0554

Control Cable - 40.5" (B&S)

$21.99

$

In Stock, only 4 left!

0

11

MTD 946-0737

Control Cable - 51" (Tecumseh)

$28.99

$

In Stock, only 4 left!

0

12

MTD 749-0539C-0637

Upper Handle

$53.99

$

Usually ships in 3-6 days

0

13

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

14

MTD 936-0513

Spr. Wash..89" I.D.

Note: (Used w/Keyed Adapter)

$

$

Not available

14

MTD 736-0450

Bell-Wash. 1.01" I.D.

Note: (Used w/ Splined Adapter)(B&S Engine)

$

$

Not available

14

MTD 936-0447

Wave Wash. 1" I.D. (Tec. Engine)
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

16

MTD 936-0286

Bowed Washer

$6.99

$

In Stock, only 2 left!

0

17

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

18

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

MTD 920-0276

Hand Knob

$3.99

$

In Stock, Qty 9

0

21

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

23

MTD 936-0514

Fl-Wash..88" I.D. x 1.85"
(Superseded to 736-0514)

Note: (Used w/Keyed Adapter)

$

$

Not available

24

MTD 736-0270

Bell-Wash..265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

25

MTD 731-0801

Bag Handle

$

$

Not available

26

MTD 749-0764A-0637

Rear Catcher Frame

$40.99

$

Usually ships in 3-6 days

0

27

MTD 764-0412-0637

Front Catcher Frame

$

$

Not available

28

MTD 735-0639

Spark Plug Boot

Note: No Longer Available

$

$

Not available

29

Engine

$

$

Not available

30

MTD 753-0833

Control Cover Half - Upper

$50.99

$

In Stock, only 2 left!

0

31

MTD 753-0833

Control Cover Half - Lower

$50.99

$

In Stock, only 2 left!

0

32

MTD 731-0620A

Control Lever

$15.99

$

In Stock, only 1 left!

0

33

MTD 946-0711B

Drive Cable - 51" Lg.

$32.99

$

Usually ships in 3-6 days

0

34

MTD 710-0841

Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

MTD 753-0833

Cable Mtg. Cap

$50.99

$

In Stock, only 2 left!

0

36

MTD 631-0003

Hardtop Bag Covering

$104.99

$

Usually ships in 3-6 days

0

37

MTD 631-0003

Hardtop Handle

$104.99

$

Usually ships in 3-6 days

0

38

MTD 964-0252

Grass Bags

$143.99

$

Usually ships in 3-6 days

0

39

MTD 710-0166A

Truss Mach. Scr. 1/4-20 x 1.0" Lg.

$7.49

$

In Stock, only 1 left!

0

40

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

41

MTD 936-0463

Fl-Wash..281" I.D. x .62"
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

42

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

43

MTD 764-0411-0637

Front Catcher Frame

$41.99

$

Usually ships in 3-6 days

0

44

MTD 749-0736A

Rear Catcher Frame

Note: No Longer Available

$

$

Not available

45

MTD 931-0859A

Chute Deflector

$120.99

$

Usually ships in 3-6 days

0

46

MTD 731-0970B

Deflector Plug

$

$

Not available

47

MTD 731-0858

Seal - Extrusion

$

$

Not available

48

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

49

MTD 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

MTD 732-0578B

Torsion Spring - R.H.

$

$

Not available

51

MTD 732-0577B

Torsion Spring - L.H.
(Superseded to 932-0577B)

Note: No Longer Available

$

$

Not available

52

MTD 750-0566A

Spacer .255" I.D.

$9.99

$

In Stock, only 1 left!

0

53

MTD 12297B

Handle Brkt. Ass'y.- L.H.

Note: No Longer Available

Variations

MTD 12297B-0637

Handle Brkt. Ass'y.-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 747-0698B

Hinge Pin 17.75" Lg.

$

$

Not available

55

MTD 926-0106

Cap Speed Nut
(Superseded to 726-0106)

$

$

Not available

56

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

59

MTD 912-0296

Hex L-Nut 3/8-24 Thd.

$2.99

$

In Stock, only 1 left!

0

60

MTD 736-0105

Bell-Wash..38" I.D. x.88"

$4.49

$

In Stock, Qty 20+

0

61

MTD 710-0778

Hex Wash. Hd. Tap Scr. 1 4-20 x 1.5" Lg.

$4.49

$

In Stock, only 2 left!

0

62

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

63

MTD 16997

21" Deck Ass'y.

Note: No Longer Available

$

$

Currently unavailable

64

MTD 12296B-0637

Handle Brkt. Ass'y.- R.H.

$

$

Not available

65

MTD 910-0892

Hex L-Wash. Hd. AH-Tap Scr. 1/4 x .62" Lg.

$

$

Not available

66

MTD 910-1006

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg.

$

$

Not available

67

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 750-0736

Spacer .383" I.D.
(Superseded to 950-0736)

Note: 950-0736

$5.49

$

Usually ships in 3-6 days

0

69

MTD 748-0358

Crankshaft Spacer

Note: (Keyed)

$

$

Not available

69

MTD 748-0332

Crankshaft Spacer

Note: (Splined) (B&S Engine)

$

$

Not available

69

MTD 936-0409

Serr.-Wash. 1" I.D.

Note: (Tec. Engine)

$

$

Not available

70

MTD 756-0961

Pulley Half - Lower

Note: (Keyed)

$

$

Not available

71

MTD 756-0962

Pulley Half - Upper

Note: (Keyed)

$

$

Not available

71

MTD 956-0502

Pulley Half

Note: (Used wl Splined Adapter)

$

$

Not available

72

MTD 942-0621

21" Blade

$29.99

$

In Stock, only 1 left!

0

73

MTD 936-0452

Bell-Wash..39" I.D.
(Superseded to 736-0452)

Note: (Used w/Keyed Adapter)

$4.99

$

In Stock, Qty 5

0

73

MTD 936-0453

Bell-Wash..46" I.D.

Note: (Used w/Splined Adapter)

$3.49

$

Usually ships in 3-6 days

0

74

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

Note: (Used w/Keyed Adapter)

$3.99

$

In Stock, Qty 7

0

74

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

Note: (Used w/Splined Adapter)

$9.99

$

In Stock, only 1 left!

0

75

MTD 753-0484

Blade Adapter Kit

Note: (Keyed)

$23.99

$

In Stock, only 1 left!

0

75

MTD 753-0485

Blade Adapter Kit

Note: (Splined)

$46.99

$

Usually ships in 3-6 days

0

76

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

77

MTD 912-0298

Hex Jam Nut 1/4-20 Thd.

$6.49

$

Usually ships in 3-6 days

0

78

MTD 710-3015

Hex Bolt 1/4-20 x .85" Lg.

$3.99

$

In Stock, Qty 20+

0

79

MTD 17013

Rear Belt Baffle

Note: No Longer Available

$

$

Not available

80

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

MTD 17006

Rear Panel Baffle

Note: No Longer Available

Variations

MTD 17006-0637

No Longer Available BAFFLE-RR- - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 731-0931

Corner Plug

Note: No Longer Available

$

$

Not available

83

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

84

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

MTD 731-0669

Rear Flap

$50.99

$

Usually ships in 3-6 days

0

86

MTD 17008-0637

Rear Chute Baffle

$

$

Not available

87

MTD 14847

Retaining Strip

Note: No Longer Available

Variations

MTD 14847-0637

Retaining Strip - POWDER BLACK (0637)

$

$

Not available

$

$

88

Hub Cap

Note: (Optional)

$

$

Not available

89

MTD 10622BP

Plastic Spring
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

90

MTD 748-0188B

Pawl .345" I.D.
(Superseded to 948-0188B)

$

$

Not available

91

MTD 912-0414

Weld Top L-Nut 1/4-20 Thd.
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

93

MTD 914-0115

Cotter Pin 1/8" Dia.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

94

MTD 948-0318

Ratchet Wheel 1.62" O.D.

$10.99

$

In Stock, Qty 15

0

95

MTD 738-0137

Shld. Bolt .342" Dia. x .268"

Note: No Longer Available

$

$

Not available

96

Wheel Ass'y. Comp.- Rear

$

$

Not available

97

Bearing 1/2" I.D.

$

$

Not available

98

MTD 750-0624

Shld. Spacer .50" Dia.

$

$

Not available

99

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

100

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

102

MTD 17053A

Chain Cover Ass'y.

Note: No Longer Available

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

103

MTD 741-0324A

Hex Flange Brg..506" I.D.

$7.99

$

In Stock, Qty 5

0

104

MTD 936-0160

Fl-Wash..531" I.D. x .93"

$4.49

$

In Stock, Qty 9

0

105

MTD 938-0719A

Rear Axle Ass'y.

$

$

Not available

106

MTD 941-0522

Hex Flange Bearing
(Superseded to 741-0522)

$

$

Not available

107

MTD 17009

Chain Axle Ass'y.

Note: No Longer Available

Variations

MTD 17009-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

108

MTD 736-0498

Internal L-Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

109

MTD 748-0190

Spacer .513" I.D.

$6.49

$

In Stock, Qty 11

0

110

MTD 932-0481

Extension Spring 3.8" Lg.

$

$

Not available

111

MTD 950-0589

Spacer .325" I.D.

$6.49

$

Usually ships in 3-6 days

0

112

MTD 954-0346

V-Belt

$28.99

$

In Stock, Qty 20+

0

113

MTD 920-0224

Grass Catcher Locking Knob

$

$

Not available

114

MTD 914-0104

Internal Cotter Pin 8/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

115

MTD 913-0353

#48 Chain .50" Pitch x 30 Links

$

$

Not available

116

MTD 917-0417B

Transmission Comp. (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

117

MTD 910-0892

Hex L-Wash. H.D. AB-Tap Scr. 1 4 x .62" Lg.$$

$

$

Not available

118

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25" Lg t

$6.49

$

Usually ships in 3-6 days

0

119

MTD 764-0246

Grass Bags

Note: No Longer Available

$

$

Not available

120

MTD 751B213146

Cable Clamp (B&S)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

121

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62" Lg. (B&S)

$4.49

$

Usually ships in 3-6 days

0

MTD 920-0249

Gray (3-1/2" Dia.)

$

$

Not available

MTD 731-0981C

Gray (5-1/2" Dia.)

$10.99

$

In Stock, only 2 left!

0

MTD 731-0982C

Beige (5-1/2" Dia.)

$11.99

$

In Stock, Qty 18

0
