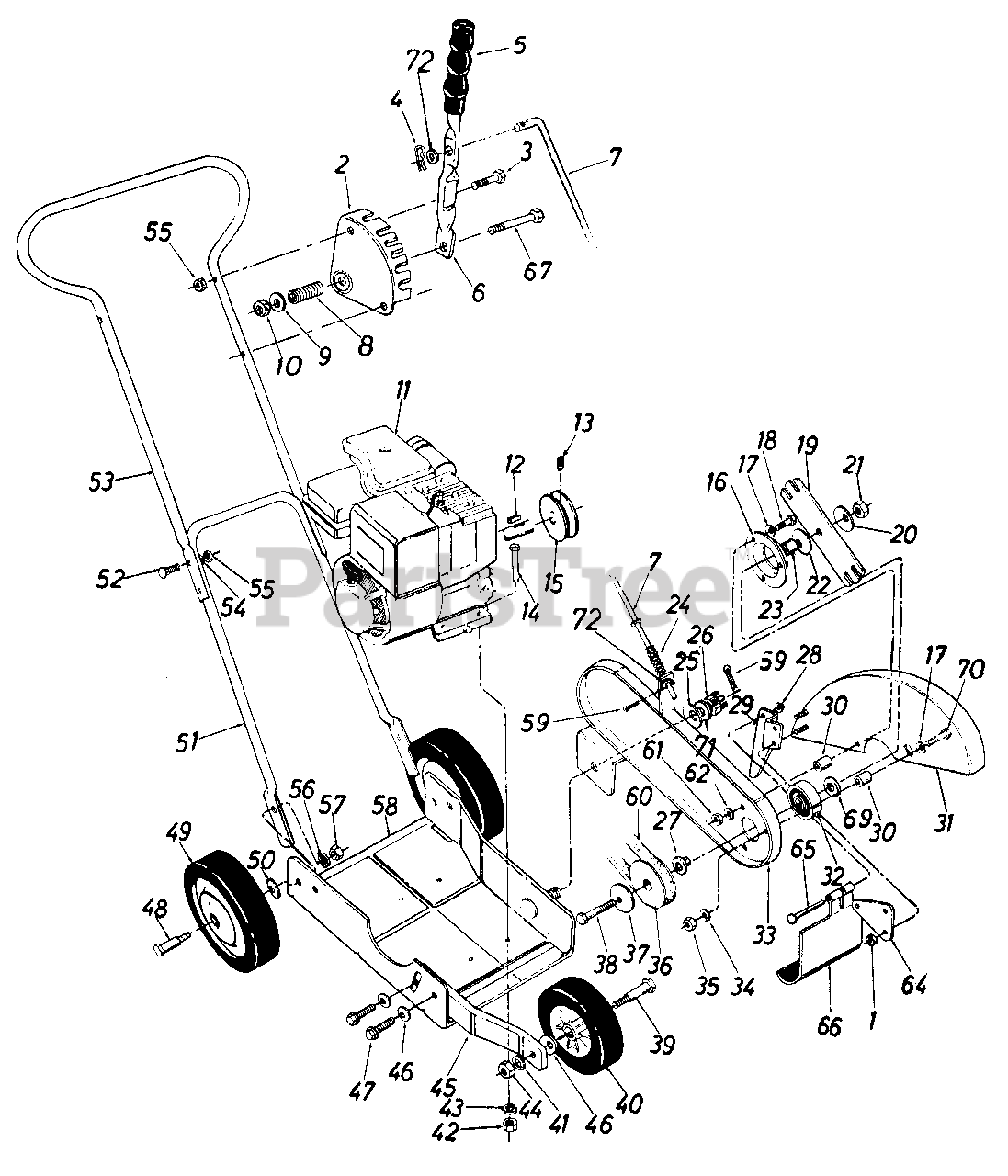

06-010706 (249-596-372) - Hechinger Edger (1989) Parts Parts Diagram

Edger

Parts Parts Diagram

  • Title

1

MTD 712-0107

Hex Cent. L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

2

MTD 781-0081

Clutch Plate

Variations

MTD 781-0081-0480

BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0081-0483

BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0081-0498

No Longer Available BRACKET-AD - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

MTD 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0081-0662

No Longer Available BRACKET-AD - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0081-0691

No Longer Available BRACKET-AD - BLACK JACK (0691)

$

$

Not available

MTD 781-0081-0692

BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

3

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.*

$3.99

$

In Stock, only 2 left!

0

4

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.0" Lg. *

$3.99

$

Usually ships in 3-6 days

0

5

MTD 07071

Grip

$12.99

$

Usually ships in 3-6 days

0

6

MTD 749-0666

Clutch Handle
(Superseded to 749-0666-0637)

Variations

MTD 749-0666-0637

Engagement Handle, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

7

MTD 747-0358

Clutch Rod

$

$

Not available

8

MTD 732-0369

Compression Spring .50" O.D. x 1 38" Lg.
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

9

MTD 736-0264

Fl.-Wash. 34" 1 D. x .62" O.D. .063

$6.99

$

In Stock, only 1 left!

0

10

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

11

Engine

$

$

Not available

12

MTD 714-0105

Sq.Key 3/16 x 1.0" Lg.*
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

13

MTD 710-0938

Set Scr. 1/4-28 x 1/4" Lg.

$

$

Not available

14

MTD 710-0442

Hex Bolt 5/16-18 x 1.50' Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

15

MTD 711-0421

Engine Pulley

$

$

Not available

16

MTD 741-0163

Bearing Housing
(Superseded to 741-0163A)

$48.99

$

Usually ships in 3-6 days

0

17

MTD 736-0242

Bell.-Wash. .34" I.D. x 88" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.*

$4.49

$

In Stock, Qty 20+

0

19

MTD 09954

Blade
(Superseded to 09954-0637)

Variations

MTD 09954-0637

Edger Blade, 1/2-HL - POWDER BLACK (0637)

$20.99

$

In Stock, only 4 left!

0

$20.99

$

In Stock, only 4 left!

0

20

MTD 736-0112

Bell.-Wash. .535" I.D. x 1.50" O.D. x.052

$9.99

$

Usually ships in 3-6 days

0

21

MTD 712-0239

Hex Cent. L.-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

22

MTD 736-0112

Bell.-Wash. .535" I.D. x 1.50" O.D. x.052

$9.99

$

Usually ships in 3-6 days

0

23

MTD 711-0564

Spacer
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

24

MTD 732-0330

Compression Spring.57" O.D. x 1.92" Lg.
(Superseded to 932-0330)

$

$

Not available

25

MTD 736-0112

Bell.-Wash. .535" I.D. x 1.50" O.D. x.052

$9.99

$

Usually ships in 3-6 days

0

26

MTD 712-0114

Hex Castle Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

27

MTD 711-0716

Shoulder Spacer

$

$

Not available

28

MTD 726-0111

Push Cap

$

$

Not available

29

MTD 09952

Guide

$

$

Not available

30

MTD 748-0298

Spacer .354" I.D. x .635" O.D. x .510" Lg.

$

$

Not available

31

MTD 14341

Blade Guard Ass'y.

Variations

MTD 14341-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 741-0919

Ball Bearing .787" I.D. x 1.85" O.D. x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

33

MTD 13333

Spindle Bracket Ass'y.

$

$

Not available

34

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 756-0361

Pulley Half

$

$

Currently unavailable

37

MTD 736-0112

Bell. Wash. .535" I.D. x 1.50" O.D. x.052

$9.99

$

Usually ships in 3-6 days

0

38

MTD 710-0515

Hex Bolt 1/2-20 x 3.50" kJ.

$11.99

$

Usually ships in 3-6 days

0

39

MTD 738-0108

Shoulder Bolt .498" Dia. x 1 .450
(Superseded to 938-0108)

$6.99

$

In Stock, Qty 6

0

40

MTD 734-1175

Wheel Ass'y. Comp. 6" Dia. x 1.50

$

$

Not available

41

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

42

MTD 712-0267

Hex u t 5/16-18 Thd. *
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

43

MTD 736-0119

L.-Wash. 5/16" I.L) .
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

45

MTD 13332

Front Wheel Support

$

$

Currently unavailable

46

MTD 736-0105

Bell.-Wash. .400" I.D. x 88" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

47

MTD 710-0623

Hex Wash. Hd. Self Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

48

MTD 738-0108

Shoulder Bolt. 498" Dia. x 1.150
(Superseded to 938-0108)

$6.99

$

In Stock, Qty 6

0

49

MTD 734-1161A

Wheel Ass y. Comp. 7" Dia. x 1.50

$

$

Not available

50

MTD 736-0105

Bell.-Wash. .400" I.D. x 88" 0. D .

$4.49

$

In Stock, Qty 20+

0

51

MTD 749-0453

L.ower Handle

$

$

Not available

52

MTD 710-0111

Carriage Bolt 1/4-20 x 1.25" Lg. *

$3.99

$

Usually ships in 3-6 days

0

53

MTD 749-0452

Upper Handle

$

$

Not available

54

MTD 736-0329

L-. Wash. 1/4" 1.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

55

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

56

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

57

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

58

MTD 13330

Base Ass'y.

$

$

Currently unavailable

59

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.0" Lg. *

$3.99

$

Usually ships in 3-6 days

0

60

MTD 754-0142

3V-Belt 31.2" Lg.
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

61

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 14427

Flap Bracket

$

$

Currently unavailable

65

MTD 711-0720

Hinge Pin

$

$

Not available

66

MTD 731-0532A

Debris Deflector

$

$

Not available

67

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

69

MTD 736-0272

Fl.-Wash. .51 I.D. x 1.00 O.D. x.060

$4.99

$

In Stock, Qty 20+

0

70

MTD 710-0116

Hex Bolt 5/16-18 x 2.00" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

71

MTD 736-0192

Fl-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 8

0

72

MTD 736-0262

Fl-Wash. 3/8" I.D.

$3.99

$

Usually ships in 3-6 days

0
