0595063 (113-092A331) - Central Park Walk-Behind Mower (1993) (Handy Andy) Wheel And Deck Assembly Parts Diagram

Walk-Behind Mower

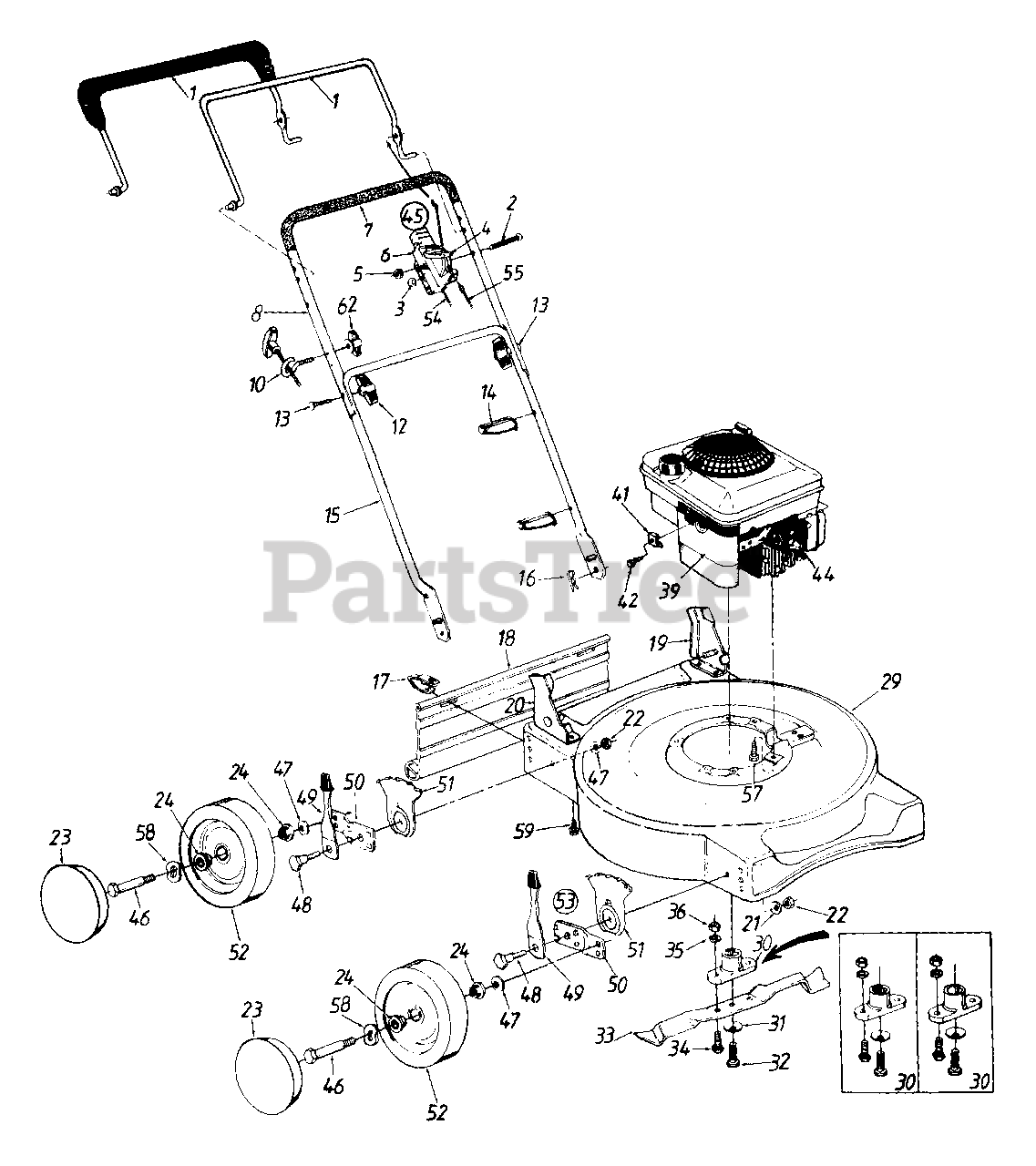

Wheel And Deck Assembly Parts Diagram

  • Title

1

MTD 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

MTD 747-0824

Control Handle Ass'y
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 2 left!

0

3

MTD 736-0501

Spr. Wash..66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

4

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

5

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

6

MTD 746-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

7

MTD 720-0226

Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

8

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

12

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

13

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-0872

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

MTD 12935B

Handle Bracket Ass'y.- L.H.

Variations

MTD 12935B-0637

Handle Brkt. Ass'y L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 12936B

Handle Bracket Ass'y.- R.H.

Variations

MTD 12936B-0637

Handle Brkt. Ass'y R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 736-0356

Bell-Wash. 39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

23

Hub Cap

$

$

Not available

24

Bearing

Note: (Optional)

$

$

Not available

29

MTD 682-0002

20" Deck Ass'y.

$

$

Currently unavailable

30

MTD 753-0484

Blade Adapter Kit

Note: (Keyed)

$23.99

$

In Stock, only 1 left!

0

MTD 753-0485

Blade Adapter Kit

Note: (Splined)

$46.99

$

Usually ships in 3-6 days

0

31

MTD 736-0452

Bell-Wash..39" I.D.

Note: (Used w/Keyed Adapter)

$4.99

$

In Stock, Qty 5

0

MTD 736-0453

Bell-Wash..46" I.D.
(Superseded to 936-0453)

Note: (Used w/Splined Adapter)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

Note: (Used w/Keyed Adapter)

$3.99

$

Usually ships in 3-6 days

0

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

Note: (Used w/Splined Adapter)

$9.99

$

In Stock, only 1 left!

0

33

MTD 742-0720

20" Mulching Blade
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

34

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

35

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

Engine

$

$

Not available

41

MTD 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

42

MTD 710-1237

Hex Self-Tap Scr #10-32 x 62"

$4.49

$

Usually ships in 3-6 days

0

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 811-00185

Throttle Box Comp
(Superseded to 811-0185)

Note: (Incl Ref. 2, 3, 4, 5, 6)

$36.99

$

In Stock, only 1 left!

0

46

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 736-0105

Bell-Wash..400" I D. x 88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt 50" Dia. x 357"

$4.49

$

In Stock, only 4 left!

0

49

MTD 14832

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

Wheel Ass'y Comp

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp - R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y Camp - L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

MTD 746-0842

Throttle Cable - 51" (B&S)
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0844

Throttle Cable - 39" (Tec.)

$

$

Not available

55

MTD 746-0550

Control Cable - 39" (B&S)
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0552

Control Cable - 49" (Tec.)
(Superseded to 946-0552)

$41.99

$

Usually ships in 3-6 days

0

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 10" Lg.

$4.49

$

In Stock, only 3 left!

0

58

MTD 736-0504

Wave Washer 51" I.D.
(Superseded to 936-0504)

Note: (Used w/Ball Bearings)

$4.49

$

In Stock, Qty 9

0

59

MTD 710-0603

Hex Wash. Hd B-Tap Scr 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

62

MTD 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

MTD 734-1781

Wheels w/o Bearings (Gray - No Hub Cap)

$32.99

$

In Stock, Qty 7

0

MTD 734-1512A

(Gray)
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

MTD 634-0020

(Gray - Uses Hub Cap)

$39.99

$

In Stock, Qty 6

0

Wheels w/Plastic Brgs. (Brg. Part No. 741-0262)

$

$

Not available

MTD 734-1268

Wheels with Ball Brgs.

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1513B

Wheels with Ball Brgs. (Gray)
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

MTD 734-1517B

Wheels with Ball Brgs.(Beige) (Brg. Part No. 741-0484)

$68.99

$

Usually ships in 3-6 days

0
