0595020 (133E450F331) - Central Park Lawn Tractor (1993) (Handy Andy) Deck Assemblies Parts Diagram

Lawn Tractor

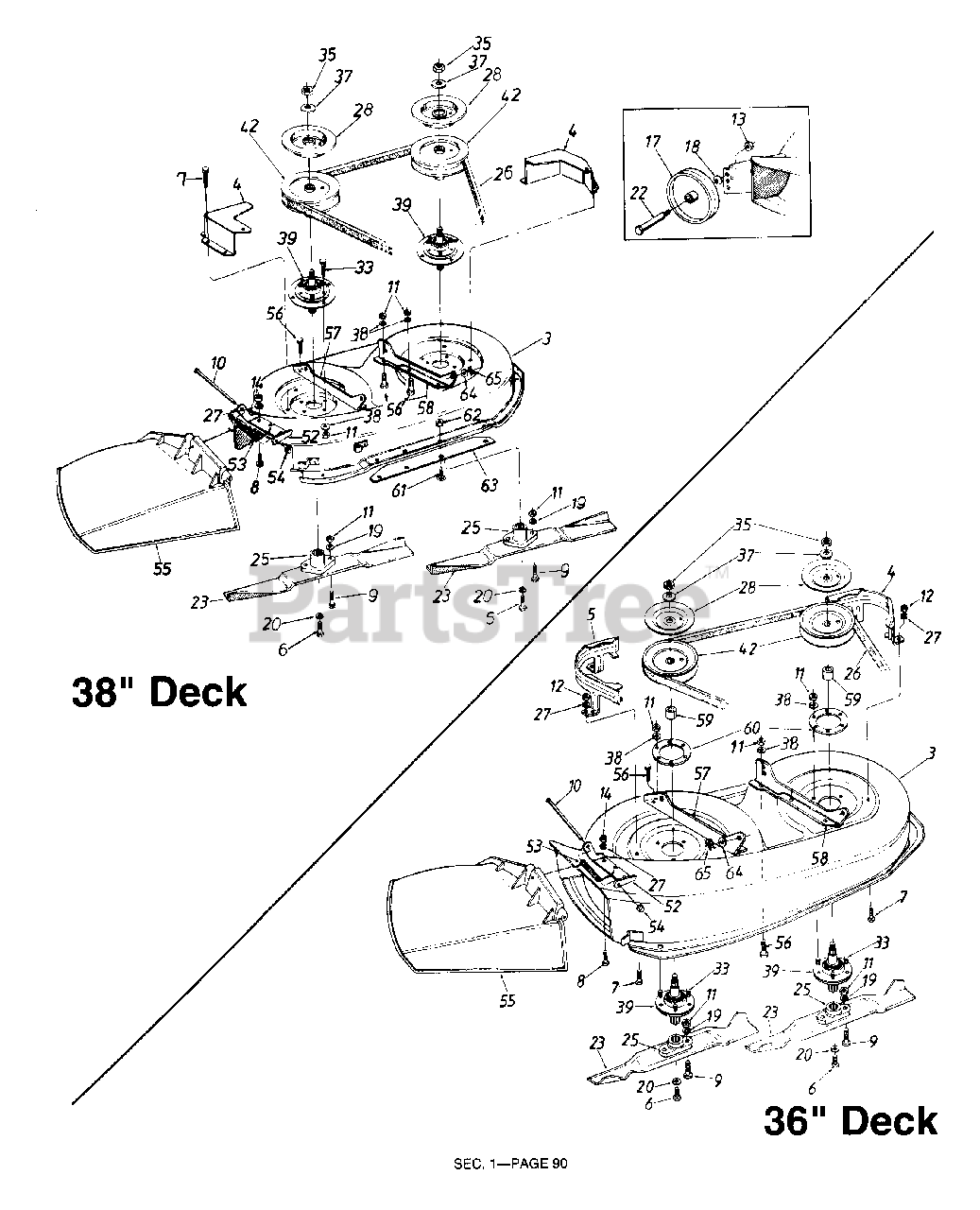

Deck Assemblies Parts Diagram

  • Title

3

MTD 16879A

36" Deck Ass'y.

$

$

Currently unavailable

MTD 813-04103

36" Deck Ass'y. Comp.

Note: (For Service Only)

Variations

MTD 813-04103-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 813-04103-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17717A

38" Deck Ass'y. w/o Deck Wheels

$

$

Currently unavailable

MTD 813-04119

38" Deck Ass'y. Comp. w/o Deck Wheels

Note: (For Service Only)

Variations

MTD 813-04119-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 813-04119-0637

No Longer Available KIT-DECK 3 - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17503B

38" Deck Ass'y. w/Deck Wheels
(Superseded to 753-04376)

Variations

MTD 17503B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17503B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 17503B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17503B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 813-04120

38" Deck Ass'y. Comp. w/Deck Wheels

Note: (For Service Only)

Variations

MTD 813-04120-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 813-04120-0637

No Longer Available KIT-DECK 3 - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 16607

Belt Guard Deck - L.H. (36" Deck)

Variations

MTD 16607-0637

Belt Guard Deck-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17665

Belt Guard Deck (38" Deck)
(Superseded to 17665-0637)

Variations

MTD 17665-0480

Belt Guard, Black - BRILLIANT GREEN (0480)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0483

Belt Guard, Black - CHARCOAL GRAY (0483)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0498

Belt Guard, Black - OLD CUB YELLOW (0498)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0637

Belt Guard, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0638

Belt Guard, Black - MTD/TROY-BILT RED (0638)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0648

Belt Guard, Black - TECH GRAY (0648)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0650

Belt Guard, Black - RED METALLIC (0650)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0662

Belt Guard, Black - OYSTER GRAY (0662)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0665

Belt Guard, Black - YARDMAN GREEN (0665)

$48.99

$

In Stock, only 2 left!

0

$48.99

$

In Stock, only 2 left!

0

5

MTD 16608A

Belt Guard Deck - R.H. (36" Deck)

Variations

MTD 16608A-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

7

MTD 710-0195

Hex Bolt 1/4-28 x .62" Lg. (36" Deck)
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

MTD 710-0599

Hex

Note: Wash. Hd. TT-Tap Scr. 1/4-20 Thd. (38" Deck)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" (36" Deck)
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg. (38" Deck)
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 5

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

11

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

12

MTD 712-0138

Hex Nut 1/4-28 Thd. (36" Deck)

$6.99

$

Usually ships in 3-6 days

0

13

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

Note: Optional Deck Assembly with Wheels

$4.49

$

In Stock, only 3 left!

0

14

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

17

MTD 734-0973

Deck Wheel - 5"

Note: Optional Deck Assembly with Wheels

$12.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

Bell-Wash..40" I.D. x .88" O.D.

Note: Optional Deck Assembly with Wheels

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0217

L-Wash. 3/8" I.D.- H.D.

$4.49

$

In Stock, Qty 9

0

22

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

Note: Optional Deck Assembly with Wheels

$9.49

$

In Stock, Qty 20+

0

23

MTD 742-0496

High-Lift Blade (36" Deck)

$

$

Not available

MTD 742-0473A

High-Lift Blade (38" Deck)
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 5

0

25

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

MTD 754-0364

"V"-Belt (36" Deck)
(Superseded to 954-0364)

$66.99

$

Usually ships in 3-6 days

0

MTD 754-0329A

V Belt (38" Deck)
(Superseded to 954-0329A)

$52.99

$

In Stock, only 2 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 09322

Brake Disc

$

$

Not available

33

MTD 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg. (36" Deck)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg. (38" Deck)

$4.49

$

In Stock, Qty 8

0

35

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

37

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

38

MTD 736-0242

Bell-Wash..345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

39

MTD 717-0900

Blade Spindle Ass'y. Comp.
(Superseded to 917-0900A)

Note: Incl. Ref. 33 (36" Deck)

$

$

Not available

MTD 717-0906

Blade Spindle Ass'y. Comp.
(Superseded to 753-05319)

Note: Incl. Ref. 33 (38" Deck)

$128.99

$

In Stock, Qty 10

0

42

MTD 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

52

MTD 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

MTD 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

56

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

57

MTD 17572

Deck Hanger Channel - R.H.
(Superseded to 17572-0637)

Variations

MTD 17572-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

58

MTD 17571

Deck Hanger Channel - L.H.
(Superseded to 17571-0637)

Variations

MTD 17571-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 750-0456

Spacer .79" I.D. x 1.0" O.D. (36" Deck)

$4.49

$

In Stock, Qty 20+

0

60

MTD 09164A

Reinforcement Plate (36" Deck)
(Superseded to 09164A-0637)

Variations

MTD 09164A-0637

Reinforcement Plate - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

61

MTD 710-0167

Carr. Bolt 1/4-20 x .5" Lg. (38" Deck)
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

62

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.(38" Deck)

$4.49

$

In Stock, Qty 10

0

63

MTD 17863

Deck Skirt Ext. (38" Deck)
(Superseded to 17863-0637)

Variations

MTD 17863-0637

Deck Skirt Ext. - POWDER BLACK (0637)

$

$

Not available

$

$

64

MTD 736-0185

Fl-Wash..406" 1.D. x.73" O.D.

$3.99

$

In Stock, only 3 left!

0

65

MTD 714-0104

Hairpin Clip 3/8" Dia.

$4.49

$

In Stock, Qty 20+

0
