058 (190-058-100) - Cub Cadet Grass Catcher (1987) att Parts For Grass Catcher For 36" Rear Discharge Decks Parts Diagram

Grass Catcher

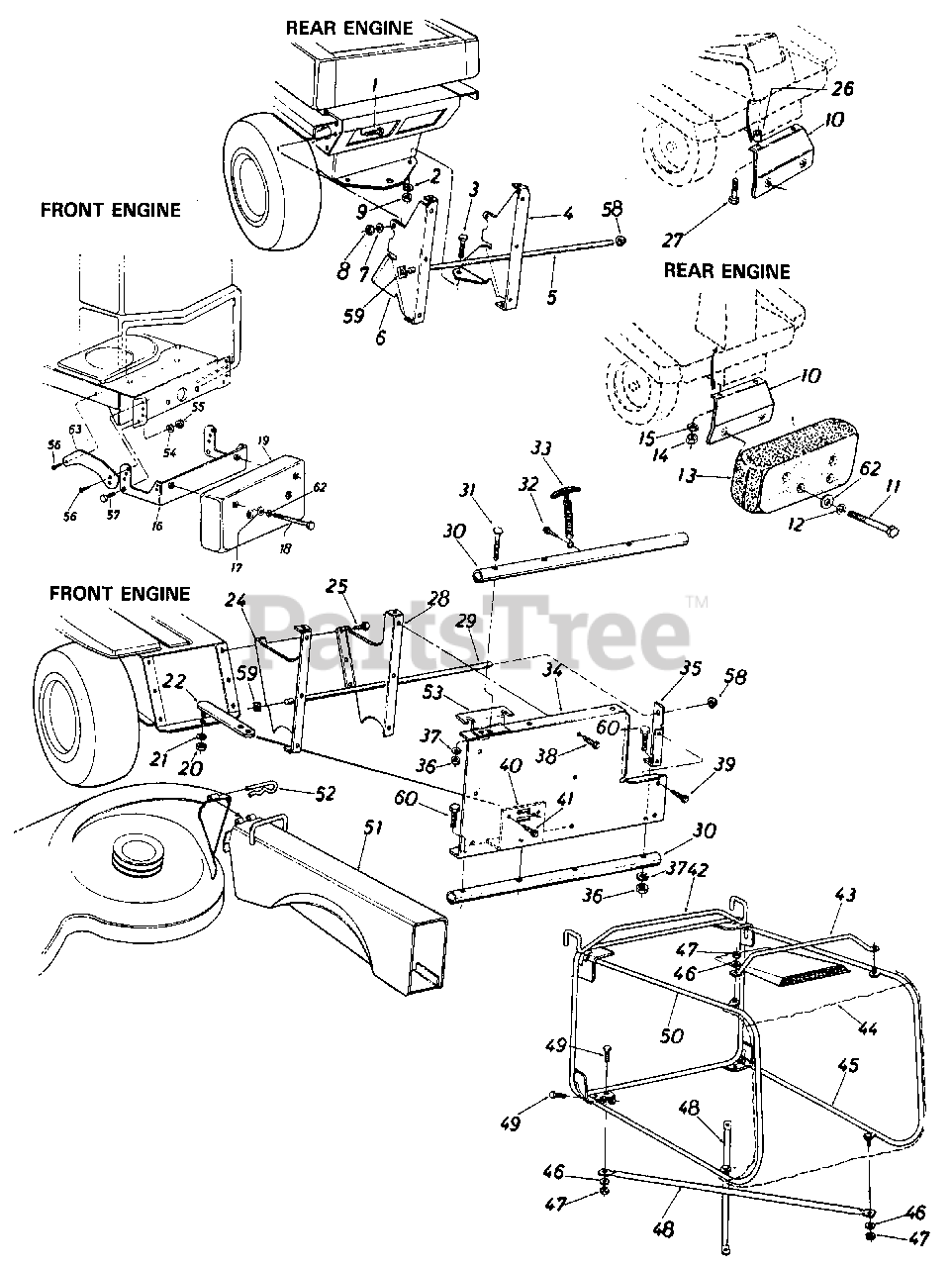

Parts For Grass Catcher For 36" Rear Discharge Decks Parts Diagram

  • Title

1

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1-00" Lg. *

$3.99

$

In Stock, Qty 5

0

2

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1.00" Lg. *

$3.99

$

In Stock, Qty 5

0

4

Cub Cadet 15970

Catcher Support Brkt R.H.
(Superseded to 15970A)

$

$

Not available

5

Cub Cadet 749-0613

Tubing.38" I.D. x .50" O.D. x 29" Lg.

Variations

Cub Cadet 749-0613-0637

TUBING - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 15971

Catcher Support Brk't.-L.H.

$

$

Not available

7

Cub Cadet 736-0119

L Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0267

Hex Nut 5/16 18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0267

Hex Nut 5/16 18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 15539

Counterweight Bracket

$

$

Not available

11

Cub Cadet 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$14.99

$

In Stock, only 2 left!

0

12

Cub Cadet 736-0105

Belleville Wash. .400" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 723-0367

Front Counterweight 381 bs.

$

$

Not available

14

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

L. Wash. 5/16" I. D. *
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 15873

Counterweight Bracket

$

$

Not available

17

Cub Cadet 736-0105

Belleville Wash. .400" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

19

Cub Cadet 723-0367

Front Counterweight 38 Ibs.

$

$

Not available

20

Cub Cadet 712-0922

Hex Jam Nut 1/2-13 Thd.*
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

21

Cub Cadet 736-0921

L. Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 16602

Hitch Bar Ass'y.

Variations

Cub Cadet 16602-0637

BAR ASSEMBLY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 15363

Catcher Support Brk't.-L.H.

$

$

Not available

25

Cub Cadet 710-0726

Hex Wash. Hd. Self Tap Scr. 5/16-18 x .75 Lg.*

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 711-0242

Spacer.380" I.D. x 1.00" O.D. x.320" Lg.

$4.49

$

In Stock, Qty 9

0

27

Not Part of Kit

$

$

Not available

28

Cub Cadet 15364

Catcher Support Brk't.R. H.

$

$

Not available

29

Cub Cadet 749-0613

Tubing.38" I.D. x.50" O.D. x 29" Lg. Lg

Variations

Cub Cadet 749-0613-0637

TUBING - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 749-0612

Tubing 1-1/8" O.D. x 20.12" lg.

$

$

Not available

31

Cub Cadet 710-0405

Curved Carriage Bolt 5/16-18 x 1.75 Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0776

Hex "AB"-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 723-0296

Hood Latch Ass'y.

$

$

Not available

34

Cub Cadet 15968

Grass Catcher Adapter

$

$

Currently unavailable

35

Cub Cadet 15362

Grass Catcher Support Brk't. R.H.

$

$

Currently unavailable

36

Cub Cadet 712-0267

Hex Nut 5/16-18Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0119

L.-Wash.5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 15459

Hitch Bracket

$

$

Currently unavailable

41

Cub Cadet 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 15981

Grass Bag Frame Ass'y.

$

$

Not available

43

Cub Cadet 749-0616

Grass Catcher Handle 26.75

$

$

Currently unavailable

44

Cub Cadet 764-0209

Grass Catcher Bag

$

$

Not available

45

Cub Cadet 15992

Catcher Side Frame Ass'y.

Variations

Cub Cadet 15992-0637

FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 736-0175

L.-Wash. .270" I.D. x .57" O . D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

47

Cub Cadet 712-0107

Hex L.-Nut 1/4-20Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

48

Cub Cadet 749-0615

Bottom Cross Brace 30.36" Lg. *

$

$

Not available

49

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 15993

Catcher Side Frame Ass'y. - L. H .

Variations

Cub Cadet 15993-0637

FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 15972

Chute Extension Ass'y.

$

$

Currently unavailable

52

Not Part of Kit

$

$

Not available

53

Cub Cadet 15995

Grass Catcher Support Plate

$

$

Not available

54

Cub Cadet 736-0171

L.-Wash. 7/16" I.D.*

$4.49

$

In Stock, only 4 left!

0

55

Cub Cadet 712-0240

Hex Nut 7/16-20 Thd.*
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 710-0915

Hex AB Tap Scr.5/16-18 x 9.

$

$

Not available

57

Cub Cadet 710-0314

Hex Bolt 7/16-20x 1.00" Lg. *

$4.49

$

In Stock, Qty 13

0

58

Cub Cadet 726-0221

Push Cap

$6.49

$

In Stock, only 2 left!

0

59

Cub Cadet 712-0247

Speed Nut

$

$

Currently unavailable

60

Cub Cadet 710-0380

Hex Bolt 5/16-18 x 1.75" Lg. *
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 11

0

Cub Cadet 748-0193

Spacer
(Superseded to 948-0193)

$

$

Not available

62

Cub Cadet 736-0280

Fl.-Wash. .390" I.D. x 1.12" O.D. x .187 Thk.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 16024

Tie Strap

$

$

Not available
