051322 (126-478C301) - MasterCut by MTD Walk-Behind Mower (1996) (Scotty's) General Assembly Parts Diagram

Walk-Behind Mower

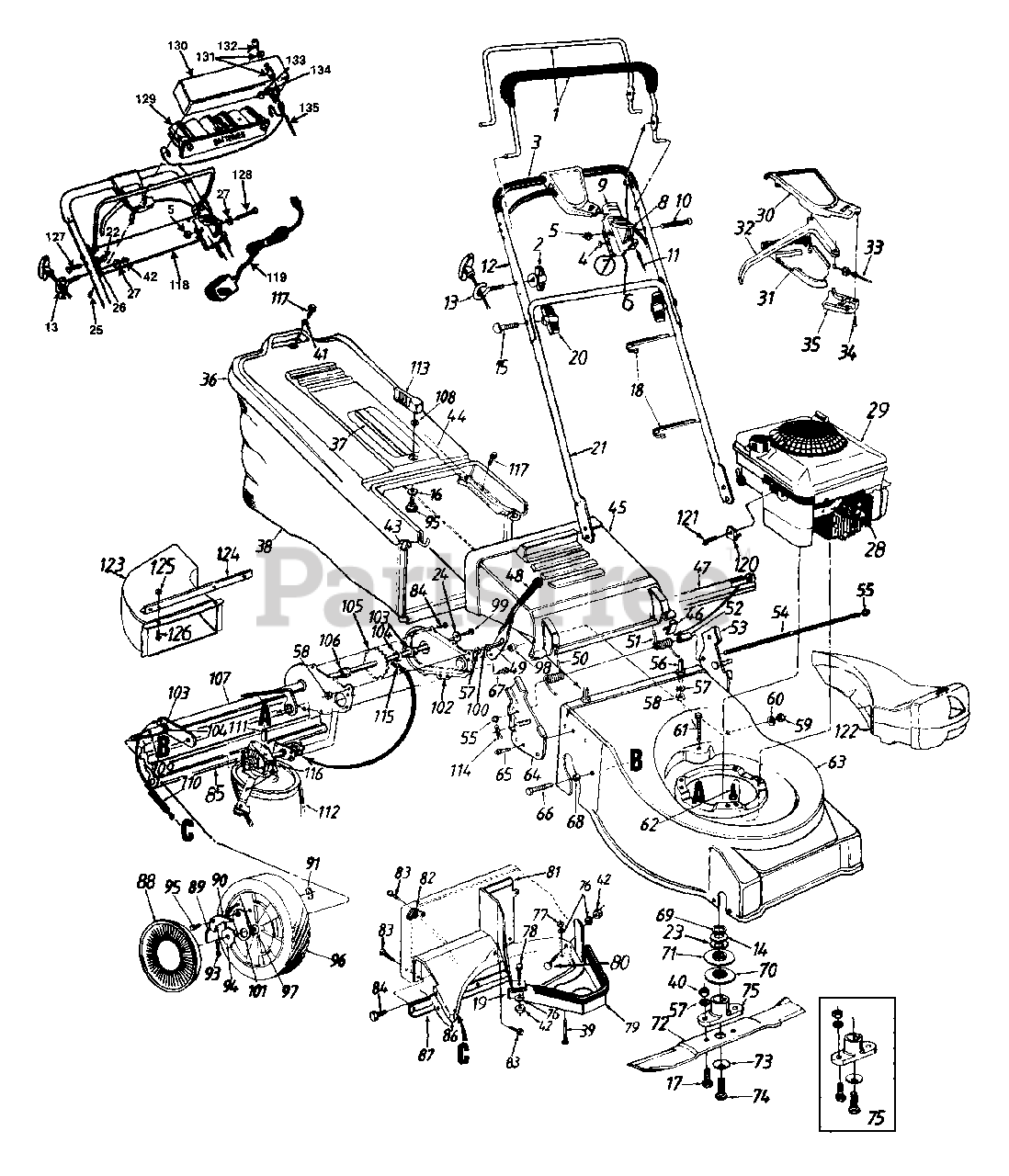

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Std. Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

3

MTD 720-0225

Foam Grip
(Superseded to 720-0294A)

Note: (Optional)

$7.49

$

In Stock, Qty 5

0

4

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

5

MTD 712-0324

Hex L-Nut 1/4 - 20 Thd.

$3.99

$

In Stock, Qty 16

0

6

MTD 746-0843

Throttle Cable - 55"
(Superseded to 946-0671A)

Note: For models (478 Series)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0845

Throttle Cable - 45"
(Superseded to 946-1115)

Note: For models (475 Series)

$28.99

$

In Stock, only 1 left!

0

7

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 4, 5, 8, 9, 10)

$36.99

$

In Stock, only 1 left!

0

8

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

9

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

10

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 2 left!

0

11

MTD 746-0554

Control Cable - 40.5"
(Superseded to 946-0554)

Note: For models (478 Series)

$21.99

$

In Stock, only 4 left!

0

MTD 746-0555

Control Cable - 55"
(Superseded to 946-0555)

Note: For models (475 Series)

$26.99

$

In Stock, only 4 left!

0

12

MTD 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

MTD 749-0539B-0637

HANDLE-UPPER - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

13

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

14

MTD 736-0513

Spr. Wash. .89" I.D.
(Superseded to 936-0513)

$

$

Not available

15

MTD 710-1174

Curved Hd. Bolt 5/16 - 18 x 2"

$7.49

$

In Stock, Qty 20+

0

16

MTD 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

17

MTD 710-1055

Hex Bolt 3/8 - 24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

18

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

19

MTD 782-7010

Stop Brkt.

$

$

Not available

20

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

21

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

22

MTD 712-0267

Hex Nut 5/16 - 18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0514

Fl-Wash. .88" I.D. x 1.85"

$

$

Not available

24

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-0969

Truss Mach. Tap Scr. 1" Lg.

$4.49

$

In Stock, only 2 left!

0

26

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

29

Engine

$

$

Not available

30

MTD 731-1057

Control Cover Half - Upper
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

31

MTD 731-1058

Control Cover Half - Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

32

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

33

MTD 746-0711A

Drive Cable - 51" Lg.
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

34

MTD 710-0841

Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

MTD 731-1059

Cable Mtg. Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

36

MTD 731-0857A

Hardtop Bag Cover
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

37

MTD 731-0856A

Hardtop Handle
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

38

MTD 764-0252

Grass Bag
(Superseded to 964-0252)

$143.99

$

In Stock, only 1 left!

0

39

MTD 710-0166

Truss Mach. Scr. 1/4 - 20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

40

MTD 712-0241

Hex Nut 3/8 - 24 Thd.

$4.49

$

In Stock, Qty 13

0

41

MTD 736-0463

Fl-Wash. .281" I.D. x .62"

$4.49

$

In Stock, Qty 12

0

42

MTD 712-0287

Hex Nut 1/4 - 20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

43

MTD 764-0411

Front Catcher Frame
(Superseded to 764-0411-0637)

Variations

MTD 764-0411-0637

CATCHER-FRT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

44

MTD 749-0736A

Rear Catcher Frame

$

$

Not available

45

MTD 731-0859

Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

46

MTD 731-0970B

Deflector Plug

$

$

Not available

47

MTD 731-0858

Seal - Extrusion

$

$

Not available

48

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

49

MTD 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

MTD 732-0578B

Torsion Spring - R.H.

$

$

Not available

51

MTD 732-0577B

Torsion Spring - L.H.
(Superseded to 932-0577B)

$

$

Not available

52

MTD 750-0566

Spacer .255" I.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

53

MTD 12297B

Handle Brkt. Ass'y. - L.H.

Variations

MTD 12297B-0637

Handle Brkt. Ass'y.-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 747-0698B

Hinge Pin 17.75" Lg.

$

$

Not available

55

MTD 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

56

MTD 711-0805

Shld. Pin 3/8 - 24 x 1.43" Lg.

$

$

Not available

57

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0711

Hex Jam Nut 3/8 - 24 Thd.

$4.49

$

In Stock, Qty 20+

0

59

MTD 712-0296

Hex L-Nut 3/8 - 24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

60

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

61

MTD 710-0778

Hex Tap Scr. 1/4 - 20 x 1.5" Lg.

$4.49

$

In Stock, only 1 left!

0

62

MTD 710-0654A

Hex Scr. 3/8 - 16 x 1" Lg.

$4.49

$

In Stock, only 4 left!

0

63

MTD 16997

21" Deck Ass'y.

$

$

Currently unavailable

64

MTD 12296B

Handle Brkt. Ass'y. - R.H.
(Superseded to 12296B-0637)

Variations

MTD 12296B-0637

BRACKET ASSY-HDLE - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 710-0896

Hex AB-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0623

Hex Tap Scr. 3/8 - 16 x .75" Lg.

Note: New Part

$4.49

$

In Stock, only 2 left!

0

67

MTD 710-0599

Hex Tap Scr. 1/4 - 20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 750-0736

Spacer.383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

69

MTD 748-0358

Crankshaft Spacer

$

$

Not available

70

MTD 756-0961

Pulley Half - Lower

$

$

Not available

71

MTD 756-0962

Pulley Half - Upper

$

$

Not available

72

MTD 742-0621

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

MTD 742-0721

21" Mulching Blade
(Superseded to 942-0721)

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0

73

MTD 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 5

0

74

MTD 710-1044

Hex Bolt 3/8 - 24 x 1.5" Lg.

$3.99

$

In Stock, only 1 left!

0

75

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

76

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

77

MTD 712-0298

Hex Jam Nut 1/4 - 20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

78

MTD 710-0166

Pan Head Mach. Scr. 1/4 - 20 x 1.0
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

79

MTD 682-5009

Ext. Baffle

$

$

Currently unavailable

80

MTD 710-0167

Carr. Bolt 1/4 - 20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

MTD 17006

Rear Panel Baffle

Variations

MTD 17006-0637

No Longer Available BAFFLE-RR- - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 731-0931

Corner Plug

$

$

Not available

83

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

84

MTD 710-0653

Hex Tap Scr. 1/4 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

85

MTD 731-1488

Rear Flap

$28.99

$

Usually ships in 3-6 days

0

86

MTD 17008

Rear Chute Baffle
(Superseded to 17008-0637)

Variations

MTD 17008-0637

BAFFLE-RR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

87

MTD 782-5010

Retaining Strip

$

$

Not available

88

Hub Cap

Note: (Optional)

$

$

Not available

89

MTD 10622B

Plastic Spring

$5.49

$

In Stock, Qty 20+

0

90

MTD 748-0381

Pawl .345" I.D.- R.H.

$11.99

$

Usually ships in 3-6 days

0

MTD 748-0188B

Pawl .345" I.D.- L.H.
(Superseded to 948-0188B)

Note: (Not Shown)

$

$

Not available

91

MTD 712-0414

Weld Top L-Nut 1/4 - 20 Thd.

$4.49

$

In Stock, Qty 20+

0

93

MTD 714-0115

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, only 2 left!

0

94

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 16

0

95

MTD 738-0137

Shld. Bolt .342" Dia. x .268"

$

$

Not available

96

Rear Wheel Ass'y. Comp.

$

$

Not available

97

Bearing 1/2" I.D.

$

$

Not available

98

MTD 750-0624

Shld. Spacer .50" Dia.

$

$

Not available

99

MTD 710-0751

Hex Bolt 1/4 - 20 x .62" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

100

MTD 711-0805

Shld. Pin 3/8 - 24 x 1.43" Lg.

$

$

Not available

101

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

102

MTD 17053A

Chain Cover Ass'y.

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

103

MTD 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

104

MTD 736-0160

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, only 2 left!

0

105

MTD 738-0719A

Rear Axle Ass'y.
(Superseded to 938-0719A)

$

$

Not available

106

MTD 741-0522

Hex Flange Bearing

$

$

Not available

107

MTD 17009

Chain Axle Ass'y.

Variations

MTD 17009-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

108

MTD 736-0498

Internal L-Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

109

MTD 748-0190

Spacer .513" I.D.

$6.49

$

In Stock, Qty 11

0

110

MTD 732-0481

Extension Spring 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

111

MTD 750-0589

Spacer .325" I.D.
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

112

MTD 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

113

MTD 720-0224

Grass Catcher Locking Knob
(Superseded to 920-0224)

$

$

Not available

114

MTD 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

115

MTD 713-0353

#48 Chain .50" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

116

MTD 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

Note: See Transmission For Breakdown

$234.99

$

Usually ships in 3-6 days

0

117

MTD 710-0892

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

118

MTD 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

MTD 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

119

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

120

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

Note: For model (478 Series)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007755

Cable Clamp

Note: For model (475 Series)

$

$

Not available

121

MTD 710-1237

Hex Self-Tap Scr. #10 - 32 x .62" Lg.

Note: For model (478 Series)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Sems Scr. #10 - 32 x .38" Lg.

Note: For model (475 Series)

$

$

Not available

122

MTD 731-1446

Mulching Plug
(Superseded to 931-1446)

Note: (Optional)

$

$

Not available

123

MTD 731-1461

Chute Deflector
(Superseded to 931-1461)

Note: (Optional)

$

$

Not available

124

MTD 782-7011

Chute Mounting Brkt.
(Superseded to 782-7011-0637)

Note: (Optional)

Variations

MTD 782-7011-0637

Chute Mounting Bracket - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

125

MTD 712-0324

Hex L-Nut 1/4 - 20 Thd.

$3.99

$

In Stock, Qty 16

0

126

MTD 710-0286

Mach. Scr. 1/4 - 20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

127

MTD 710-1250

Curved Carr. Bolt 5/16 - 18 x 1

$4.99

$

In Stock, Qty 5

0

128

MTD 710-0501

Hex Bolt 1/4 - 20 x 2" Lg.

$7.49

$

Usually ships in 3-6 days

0

129

MTD 725-1276

Battery Pack 12 Volt
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

130

MTD 731-0891A

Battery Tray

$

$

Not available

131

MTD 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

132

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

133

MTD 725-1428

Fuse Holder
(Superseded to 925-1428)

$

$

Not available

MTD 725-0298

Fuse 7-1/2 Amp
(Superseded to 925-0298)

Note: (Not Shown)

$

$

Not available

134

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

135

MTD 725-1442

Wire Harness
(Superseded to 925-1442)

$

$

Not available

MTD 725-1538

Ext. Harness

Note: (Not Shown)

$

$

Not available

MTD 720-0249

Hub Caps - Gray (3-1/2" Dia.)
(Superseded to 920-0249)

Note: Optional

$

$

Not available

MTD 731-0354

Hub Caps - Black (4-1/4" Dia.)

Note: Optional

$

$

Not available

MTD 731-0355A

Hub Caps - Gray (4-1/4" Dia.)

Note: Optional

$

$

Not available

MTD 731-0981A

Hub Caps - Gray (5-1/2" Dia)
(Superseded to 731-0981C)

Note: Optional

$10.99

$

In Stock, only 2 left!

0

MTD 731-1426

Hub Caps - Yellow (5-1/2" Dia.)
(Superseded to 731-1426B)

Note: Optional

$8.99

$

Usually ships in 3-6 days

0

MTD 741-0486B

8" x 1.75" "T" Wave Sleeve Brg. Rear Wheels

$

$

Not available

MTD 741-0486B

8" x 2" "S" Wave (Gray Rim) Sleeve Brg. Rear Wheels

$

$

Not available

MTD 741-0486B

8" x 2" "S" Wave (Yellow Rim) Sleeve Brg. Rear Wheels

$

$

Not available

MTD 634-0020

8" x 1.75" Bar Tread Rear Wheels

$39.99

$

In Stock, Qty 6

0

MTD 734-1412

8" x 1.75" "T" Wave Rear Wheels

$

$

Not available

MTD 734-1512A

8" x 2" "S" Wave Rear Wheels
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

MTD 734-1510B

8" x 2" "S" Wave (Gray Rim) Rear Wheels
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

MTD 734-1791

8" x 2" "S" Wave (Yellow Rim) Rear Wheels

$

$

Not available
