05-60SC01 - Toro 60" Side-Discharge Mower Deck (1982) SIDE DISCHARGE MOWER-60 IN. (152 CM)(VEHICLE IDENTIFICATION NUMBER 05-60SC01) Parts Diagram

60" Side-Discharge Mower Deck

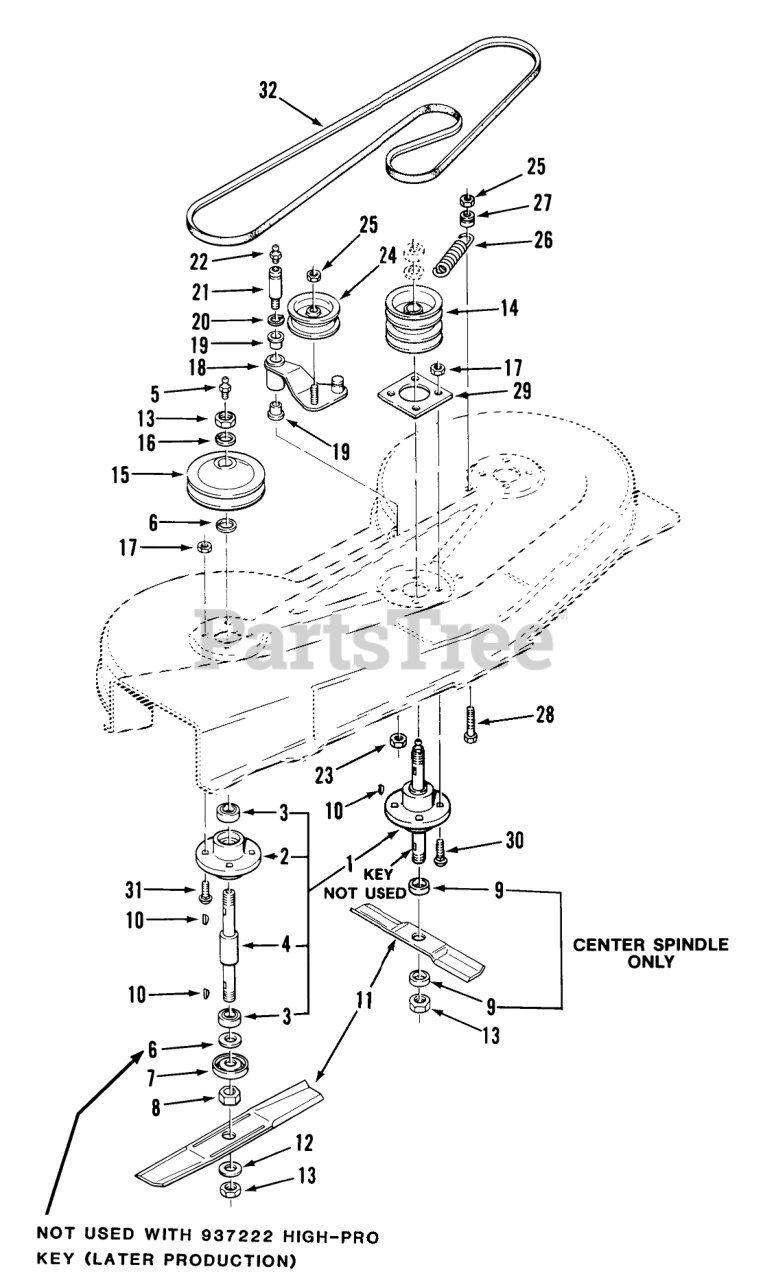

SIDE DISCHARGE MOWER-60 IN. (152 CM)(VEHICLE IDENTIFICATION NUMBER 05-60SC01) Parts Diagram

  • Title

1

Toro 109840

Spindle Assembly

$

$

Not available

2

Toro 109841

Housing

$

$

Not available

3

Toro 109842

BEARING-BALL

$26.99

$

Usually ships in 3-6 days

0

4

Toro 109843

Spindle (Includes Item 5)

$

$

Not available

5

Toro 1030

Zerk

$

$

Not available

6

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

7

Toro 109846

SLINGER BEARING

$

$

Not available

8

Toro 109847

Spacer (Thick)-Right & Left Spindle

$

$

Not available

9

Toro 109848

SPACER-CENTER BLADE

$

$

Not available

10

Toro 937086

KEY WOODRUFF

$

$

Not available

11

Toro 109077

SER ASSY BLADE KIT

$388.99

$

Usually ships in 3-6 days

0

12

Toro 920256

USE 920256P WASHER

$

$

Not available

13

Toro 915241

NUT

$1.49

$

Usually ships in 3-6 days

0

14

Toro 109851

PULLEY CENTER

$

$

Not available

15

Toro 109852

Pulley-Right & Left Spindle

$

$

Not available

16

Toro 920089

Lockwasher 3/4

$

$

Not available

17

Toro 109779

NUT-HEX, JAM

$

$

Not available

18

Toro 109854

Idler Arm

$

$

Not available

19

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

20

Toro 936121

SNAP RING- 5/8 EXT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 109860

STUD

$

$

Not available

22

Toro 1030

Zerk

$

$

Not available

23

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

24

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

25

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

26

Toro 109861

SPRING EXTENSION

$

$

Not available

27

Toro 109862

Spring Anchor

$

$

Not available

28

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

29

Toro 109853

Plate-Center Spindle

$

$

Not available

30

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

31

Toro 900090

CARRIAGE BOLT -9

$

$

Not available

32

Toro 109909

V-BELT

$171.99

$

Usually ships in 3-6 days

0
