05-52SY02 - Toro 52" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) DECK BELT COVERS & SPINDLES Parts Diagram

52" Side-Discharge Mower Deck

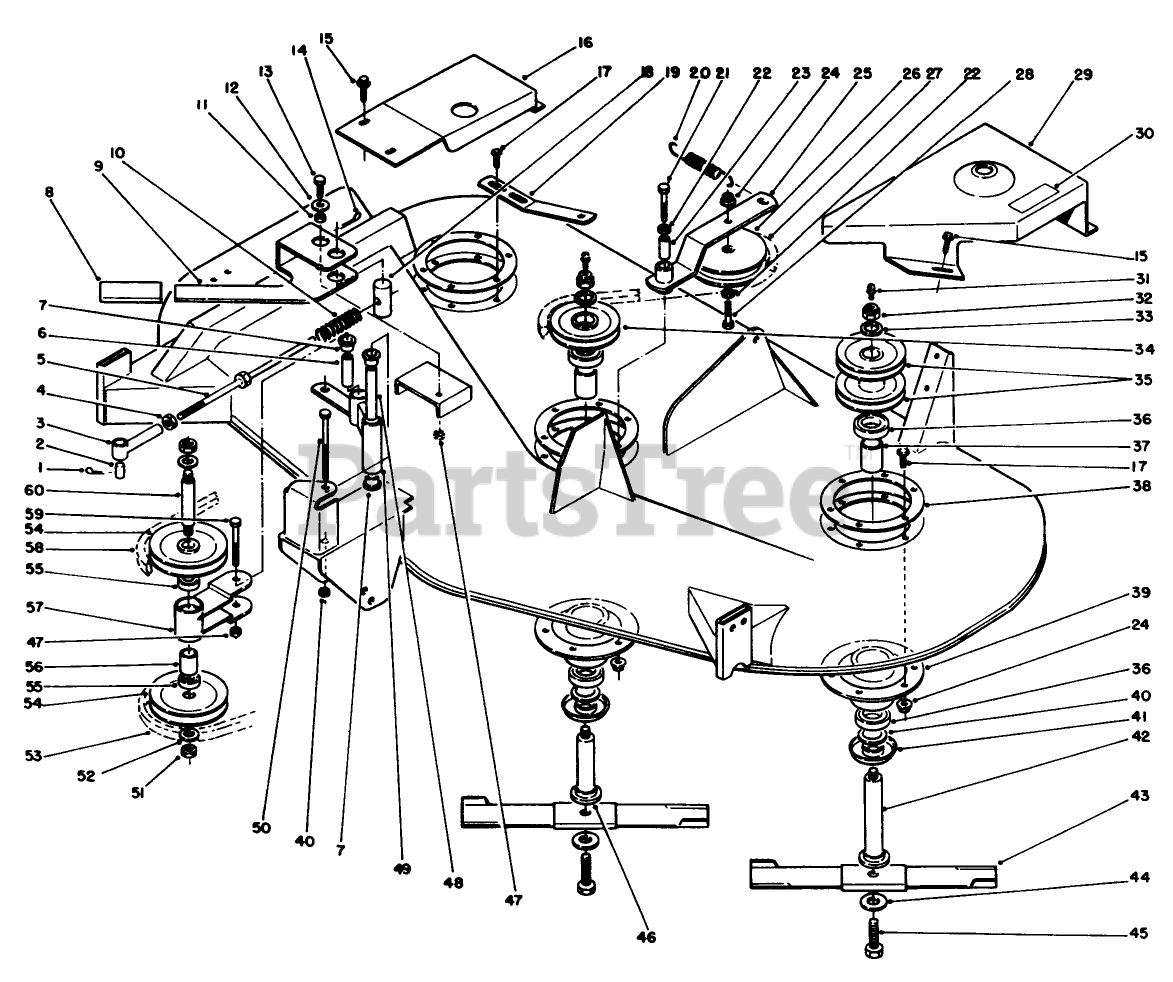

DECK BELT COVERS & SPINDLES Parts Diagram

  • Title
1

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

2

Toro 283-8

PIN-CLEVIS
(Superseded to HY4486)

$1.49

$

In Stock, Qty 5

0

3

$

$

Currently unavailable

4

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

5

Toro 79-0180

ROD-W.A. R

$

$

Not available

6

Toro 79-2760

SPACER

$

$

Not available

7

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

8

$2.49

$

Usually ships in 3-6 days

0

9

Toro 79-0150

Lever
(Superseded to 79-0150-01)

$

$

Not available

10

Toro 79-0140

SPRING-COMPRESSION

$

$

Not available

11

Toro 104525

SPACER
(Superseded to 93-3658)

$9.99

$

Usually ships in 3-6 days

0

12

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

13

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

14

Toro 932035

PIN-4

$

$

Not available

15

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

16

Toro 79-2610

Cover-Belt, R.H.
(Superseded to 79-2610-01)

$420.99

$

Usually ships in 3-6 days

0

17

Toro 900234

Bolt-Carriage
(Superseded to 3231-22)

$3.49

$

In Stock, Qty 20+

0

18

Toro 79-0200

TRUNNION

$46.99

$

Usually ships in 3-6 days

0

19

Toro 79-0160

Strap-Spring
(Superseded to 79-0160-01)

$

$

Not available

20

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

21

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

22

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

23

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

24

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

25

Toro 55-7640

Arm-Idler
(Superseded to 55-7640-03)

$128.99

$

In Stock, only 1 left!

0

26

Toro 112895

Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

27

Toro 102742

V-BELT
(Superseded to 94-2501)

$37.99

$

In Stock, Qty 6

0

28

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

29

Toro 79-0540

Cover-Belt L.H.
(Superseded to 79-0540-01)

$

$

Not available

30

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

31

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

32

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, only 4 left!

0

33

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

34

Toro 79-0620

PULLEY

$148.99

$

Usually ships in 3-6 days

0

35

Toro 79-0530

PULLEY-L.H. R

$

$

Not available

36

Toro 113514

BEARING-BALL

$21.99

$

In Stock, only 3 left!

0

37

Toro 79-1890

SPACER-BEARING

$34.99

$

Usually ships in 3-6 days

0

38

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

39

Toro 79-2480

Housing-Spindle

$222.99

$

Usually ships in 3-6 days

0

40

Toro 120860

WASHER-WHEEL

$6.99

$

In Stock, Qty 7

0

41

Toro 79-1920

SHIELD-BEARING

$14.99

$

In Stock, only 4 left!

0

42

Toro 79-1910

SHAFT-SPINDLE

$

$

Not available

43

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

44

Toro 920041

Washer
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0

45

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

46

Toro 79-1900

SHAFT-SPINDLE

$252.99

$

Usually ships in 3-6 days

0

47

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

48

Toro 79-0280

SPACER

$

$

Not available

49

Toro 79-0290

Arm Assembly
(Superseded to 79-0290-01)

$

$

Not available

50

Toro 908144

BOLT
(Superseded to 323-23)

$5.49

$

In Stock, Qty 16

0

51

Toro 915089

Nut
(Superseded to 3220-6)

$1.49

$

In Stock, only 2 left!

0

52

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

53

Toro 116160

V-BELT

$69.99

$

Usually ships in 3-6 days

0

54

Toro 79-0320

PULLEY R

$

$

Not available

55

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

56

Toro 79-0340

SPACER

$

$

Not available

57

Toro 79-0290

Arm Assembly
(Superseded to 79-0290-01)

$

$

Not available

58

Toro 79-0550

V-BELT

$142.99

$

Usually ships in 3-6 days

0

59

Toro 79-0330

COUNTER-SHAFT

$

$

Not available

60

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0
