05-48SY01 - Toro 48" Side-Discharge Mower Deck (1983) SIDE DISCHARGE MOWER-48 IN. (122 CM)(VEHICLE IDENTIFICATION NUMBER 05-48SY01) Parts Diagram

48" Side-Discharge Mower Deck

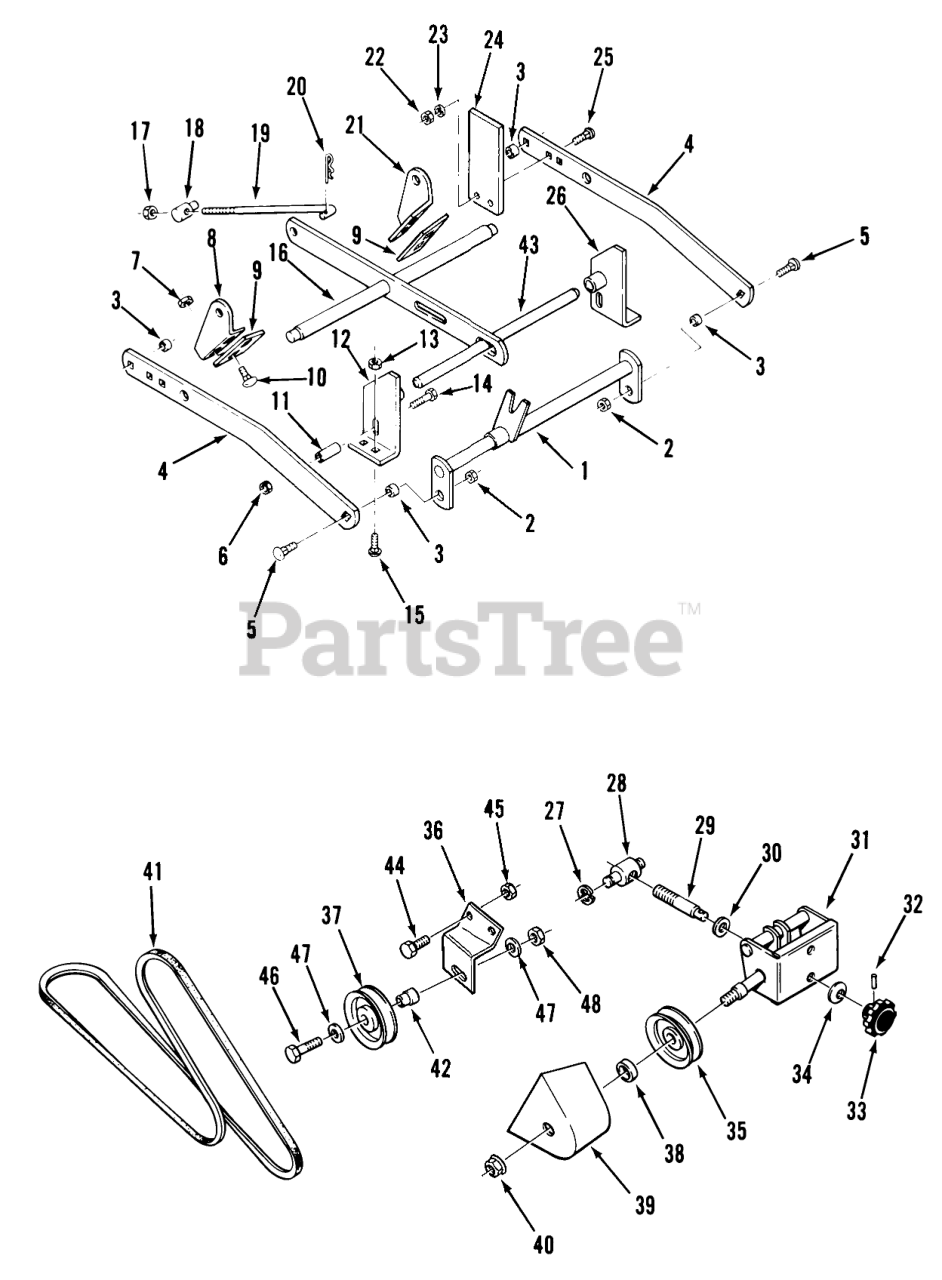

SIDE DISCHARGE MOWER-48 IN. (122 CM)(VEHICLE IDENTIFICATION NUMBER 05-48SY01) Parts Diagram

  • Title

1

Toro 101758

Hitch
(Superseded to 101758-01)

$131.99

$

In Stock, only 1 left!

0

2

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

3

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

4

Toro 101777

Bar Draft
(Superseded to 101777-01)

$100.99

$

Usually ships in 3-6 days

0

5

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

6

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

8

Toro 101776

Bracket-R.H.
(Superseded to 101776-01)

$39.99

$

Usually ships in 3-6 days

0

9

Toro 104966

PLATE

$

$

Not available

10

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

11

Toro 6595

SPACER-BEARING

$

$

Not available

12

Toro 102574

Bracket-R.H.
(Superseded to 102574-01)

$67.99

$

Usually ships in 3-6 days

0

13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

14

Toro 900093

CARRIAGE BOLT -4

$1.49

$

In Stock, only 3 left!

0

15

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

16

Toro 109780

Leveler Assembly
(Superseded to 92-0981-03)

Note: COTTER PINNED LEVELER Num 110269, USED WITH 932018 COTTER PIN 1/8 X 1 1/4

$195.99

$

Usually ships in 3-6 days

0

17

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

18

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

19

Toro 102035

ROD-LEVELER

$60.99

$

Usually ships in 3-6 days

0

20

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

21

Toro 101775

Bracket-L.H.
(Superseded to 101775-01)

$39.99

$

Usually ships in 3-6 days

0

22

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

23

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

24

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

25

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 14

0

26

Toro 102575

Bracket-L.H.
(Superseded to 102575-01)

$67.99

$

Usually ships in 3-6 days

0

27

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

28

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

29

Toro 101842

ROD ADJ

$62.99

$

Usually ships in 3-6 days

0

30

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

31

Toro 109782

ASSY FRONT SUPPORT

$

$

Not available

32

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

33

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

34

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

35

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

36

Toro 109784

BRACKET FLAT IDLER

$

$

Not available

37

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

38

Toro 101734

SPACER

$4.99

$

In Stock, Qty 10

0

39

Toro 109803

Belt Cover
(Superseded to 102582-01)

$101.99

$

Usually ships in 3-6 days

0

40

Toro 102976

Nut 3/4-16 MF
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 20+

0

41

Toro 109807

V-BELT

$

$

Not available

42

Toro 109785

SPACER

$

$

Not available

43

Toro 102570

Front Shaft
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

44

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

45

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

46

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

47

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

48

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0
