05-48SY01 - Toro 48" Side-Discharge Mower Deck (1983) SIDE DISCHARGE MOWER-48 IN. (122 CM)(VEHICLE IDENTIFICATION NUMBER 05-48SY01) Parts Diagram

48" Side-Discharge Mower Deck

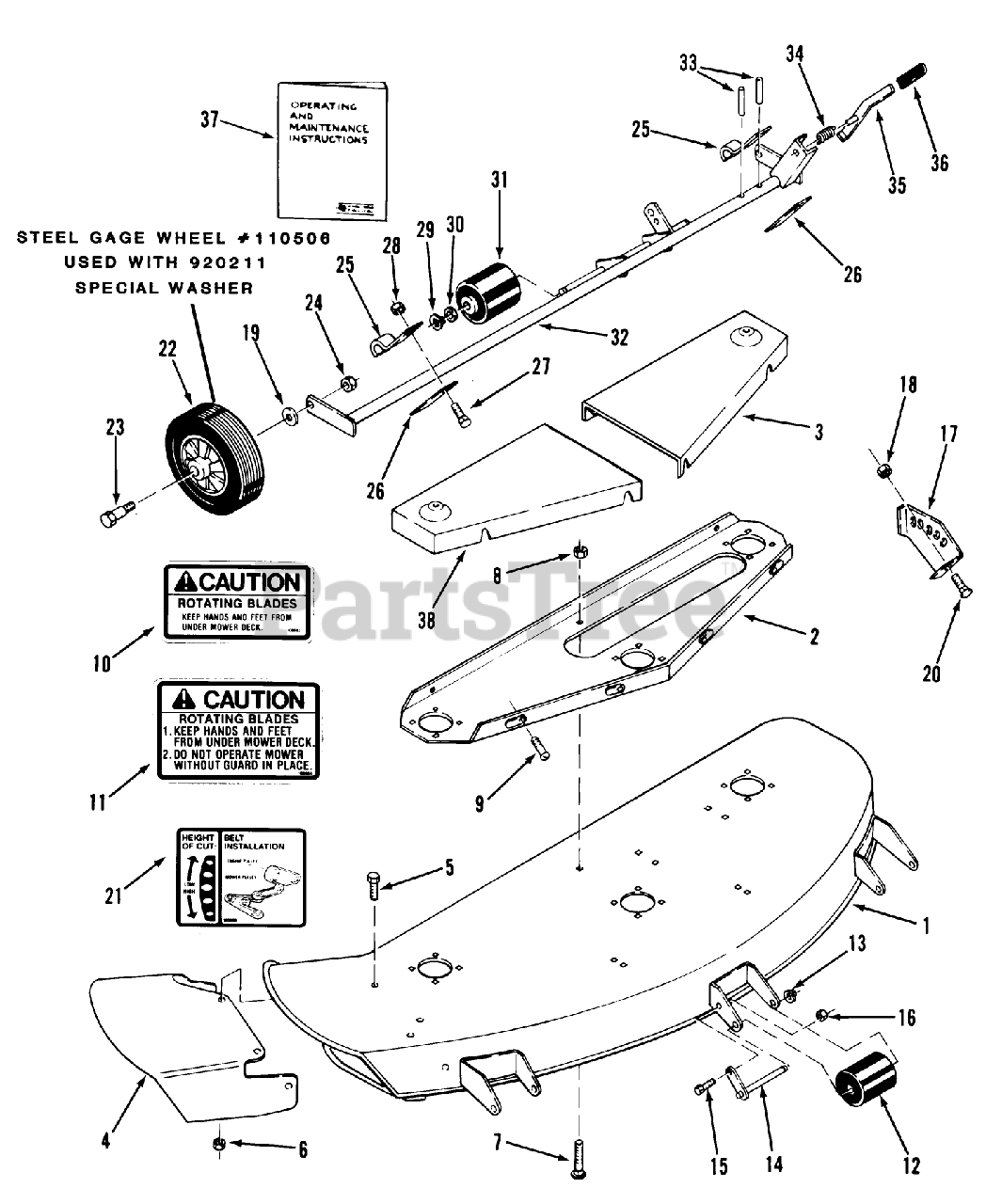

SIDE DISCHARGE MOWER-48 IN. (122 CM)(VEHICLE IDENTIFICATION NUMBER 05-48SY01) Parts Diagram

  • Title

1

Toro 106151

ASSY-48 MOWER DEC R
(Superseded to 106151-01)

$

$

Not available

2

Toro 107030

Channel
(Superseded to 94-1807-01)

$326.99

$

Usually ships in 3-6 days

0

3

Toro 107027

Belt Cover LH
(Superseded to 107027-01)

$75.99

$

Usually ships in 3-6 days

0

4

Toro 107423

Chute Extension
(Superseded to 112565-01)

$

$

Not available

5

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

6

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

7

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

9

Toro 960150

Screw
(Superseded to 3234-26)

$3.49

$

In Stock, Qty 15

0

10

Toro 108883

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

11

Toro 108884

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 3 left!

0

12

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

13

Toro 107825

Retaining Ring
(Superseded to 32151-61)

$2.99

$

In Stock, Qty 20+

0

14

Toro 108799

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

15

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

16

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

17

Toro 102655

LH QUADRANT R

$

$

Not available

18

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

19

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

20

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

21

Toro 109800

DECAL

$

$

Not available

22

Toro 109037

Wheel 6 x 1.75
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

23

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

24

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

25

Toro 102615

Machine Bolt
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

26

Toro 102618

Bar
(Superseded to 110838-03)

$

$

Not available

27

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

28

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

29

Toro 107825

Retaining Ring
(Superseded to 32151-61)

$2.99

$

In Stock, Qty 20+

0

30

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

31

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

32

Toro 108801

ASSY-GAGE WHEEL S R

$

$

Not available

33

Toro 933190

PIN-SPIROL

$

$

Not available

34

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

35

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

36

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

37

Toro 810292R1

Operating & Maintenance Instructions

$

$

Currently unavailable

38

Toro 107026

Belt Cover RH
(Superseded to 107026-01)

$75.99

$

Usually ships in 3-6 days

0
