05-48SS01 - Toro 48" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) COVER & SPINDLE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck

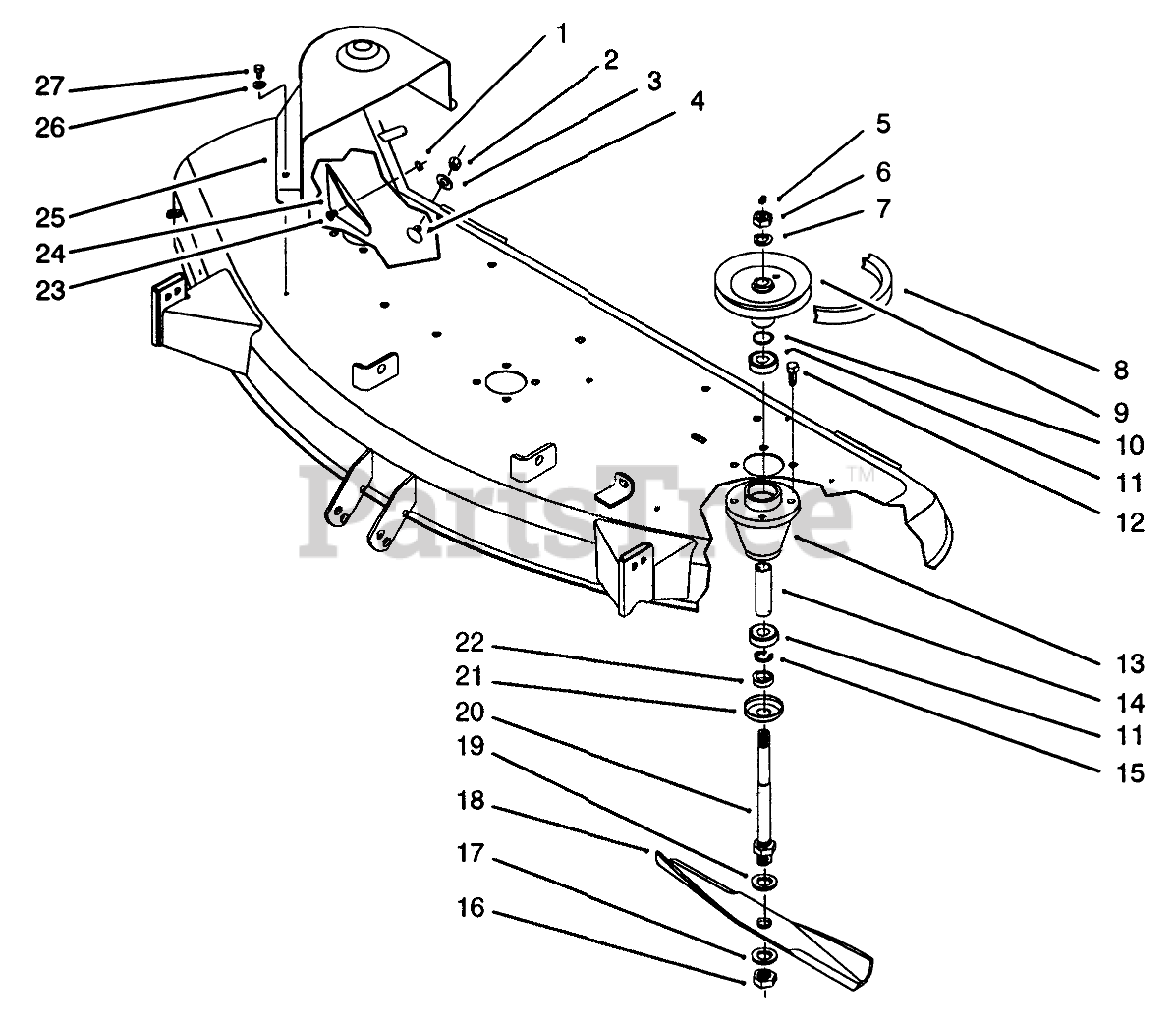

COVER & SPINDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

7

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 79-5280

Belt-V
(Superseded to 92-6958)

$140.99

$

In Stock, only 2 left!

0

9

Toro 79-5540

Pulley-Spindle
(Superseded to 92-7083)

$135.99

$

Usually ships in 3-6 days

0

10

Toro 971015

O RING

$2.49

$

In Stock, Qty 20+

0

11

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

13

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

14

$33.99

$

In Stock, only 1 left!

0

15

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

16

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

17

Toro 3256-44

WASHER-FLAT

$5.99

$

Usually ships in 3-6 days

0

18

Toro 106637

BLADE KIT (3 PACK)

$101.99

$

In Stock, Qty 5

0

19

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

20

Toro 78-6710

SHAFT-SPINDLE

$133.99

$

In Stock, only 1 left!

0

21

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

22

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 116189

Guard-Chute
(Superseded to 93-1610-01)

$

$

Not available

25

Toro 86-9220

COVER-BELT, RH

$177.99

$

Usually ships in 3-6 days

0

Toro 86-9210

COVER-BELT, LH

Note: Not illustrated

$

$

Not available

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0
