05-42SS01 - Toro 42" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) CUTTING DECK ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

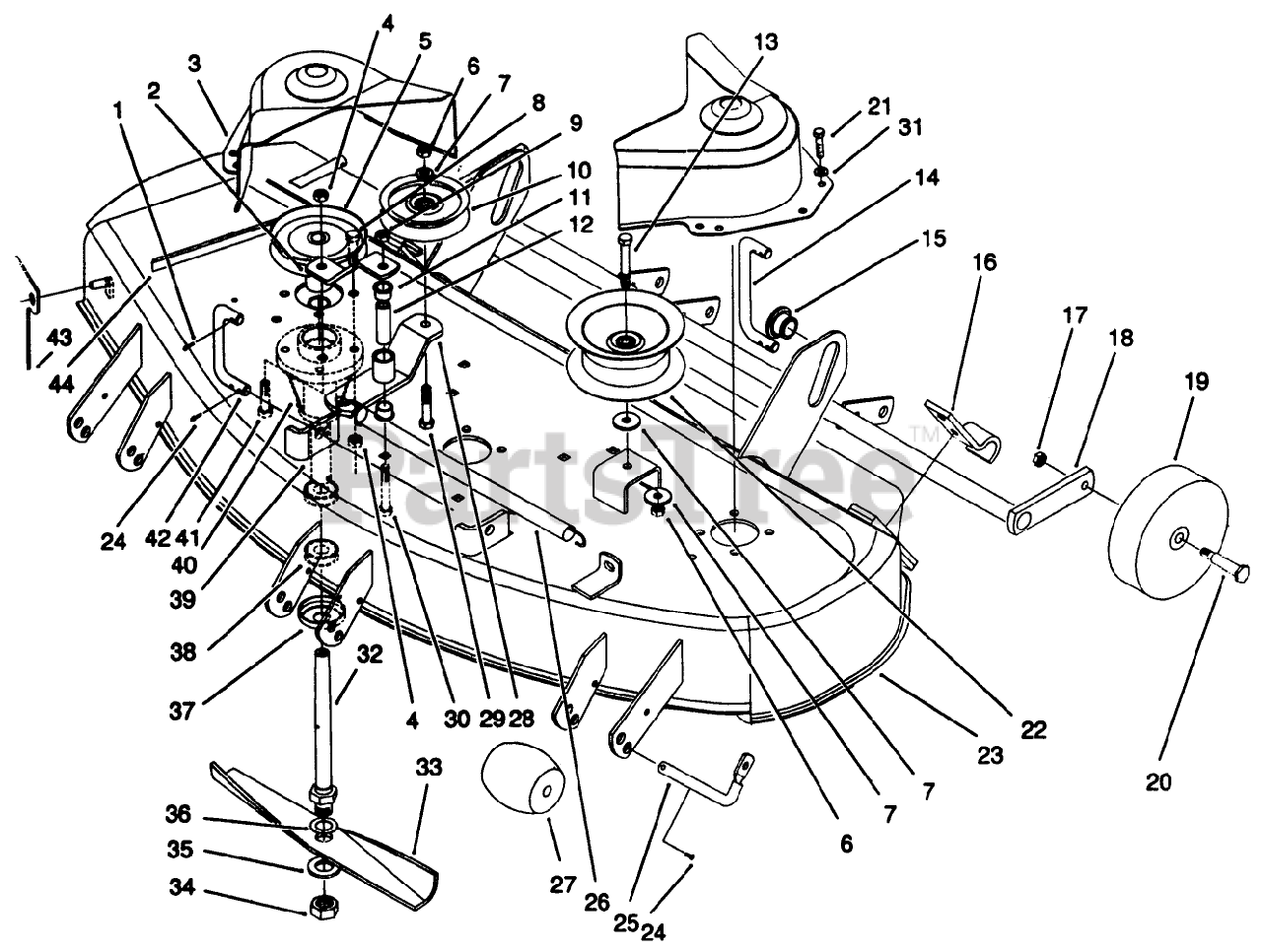

CUTTING DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

2

Toro 78-3140

Strap-Brace
(Superseded to 78-3140-03)

$

$

Not available

3

Toro 78-6891

COVER-BELT

$156.99

$

Usually ships in 3-6 days

0

4

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

5

Toro 78-1210

Pulley-Spindle
(Superseded to 92-7080)

$94.99

$

Usually ships in 3-6 days

0

6

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

7

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

8

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

9

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

10

Toro 115119

Pulley-Idler
(Superseded to 92-7084)

$38.99

$

In Stock, only 1 left!

0

11

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

12

Toro 114512

SPACER-2.0 LG R

$

$

Not available

13

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

14

Toro 78-6681

LINK-REAR

$

$

Not available

15

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

16

Toro 110837

Clamp
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

18

Toro 78-6661

Gage Wheel Support W.A.
(Superseded to 78-6661-01)

$

$

Not available

19

Toro 110506

WHEEL

$42.99

$

In Stock, only 2 left!

0

20

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

21

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

22

Toro 78-8250

Pulley-Idler
(Superseded to 92-7082)

$133.99

$

In Stock, only 1 left!

0

23

Toro 78-6450

Deck W.A.
(Superseded to 98-1797)

$

$

Not available

24

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

25

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$43.99

$

In Stock, only 3 left!

0

26

Toro 116172

SPRING - EXTENSION

$51.99

$

Usually ships in 3-6 days

0

27

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

28

Toro 78-3160

Arm-Idler
(Superseded to 98-9006)

$157.99

$

Usually ships in 3-6 days

0

29

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

30

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

31

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

32

Toro 78-6710

SHAFT-SPINDLE

$133.99

$

In Stock, only 1 left!

0

33

Toro 106636

14IN BLADE KIT

$95.99

$

In Stock, only 1 left!

0

34

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, Qty 6

0

35

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

36

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

37

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

38

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

39

Toro 116085

TUBE

$33.99

$

In Stock, only 1 left!

0

40

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

41

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

42

Toro 78-6701

LINK-FRONT

$

$

Not available

43

Toro 115994

Chute Extension
(Superseded to 99-3708)

$271.99

$

Usually ships in 3-6 days

0

44

Toro 78-6240

Belt
(Superseded to 92-6991)

$116.99

$

Usually ships in 3-6 days

0
