05-42SK01 - Toro 42" Side-Discharge Mower Deck (1988) REAR DISCHARGE MOWER-42 IN. (107 CM) Parts Diagram

42" Side-Discharge Mower Deck

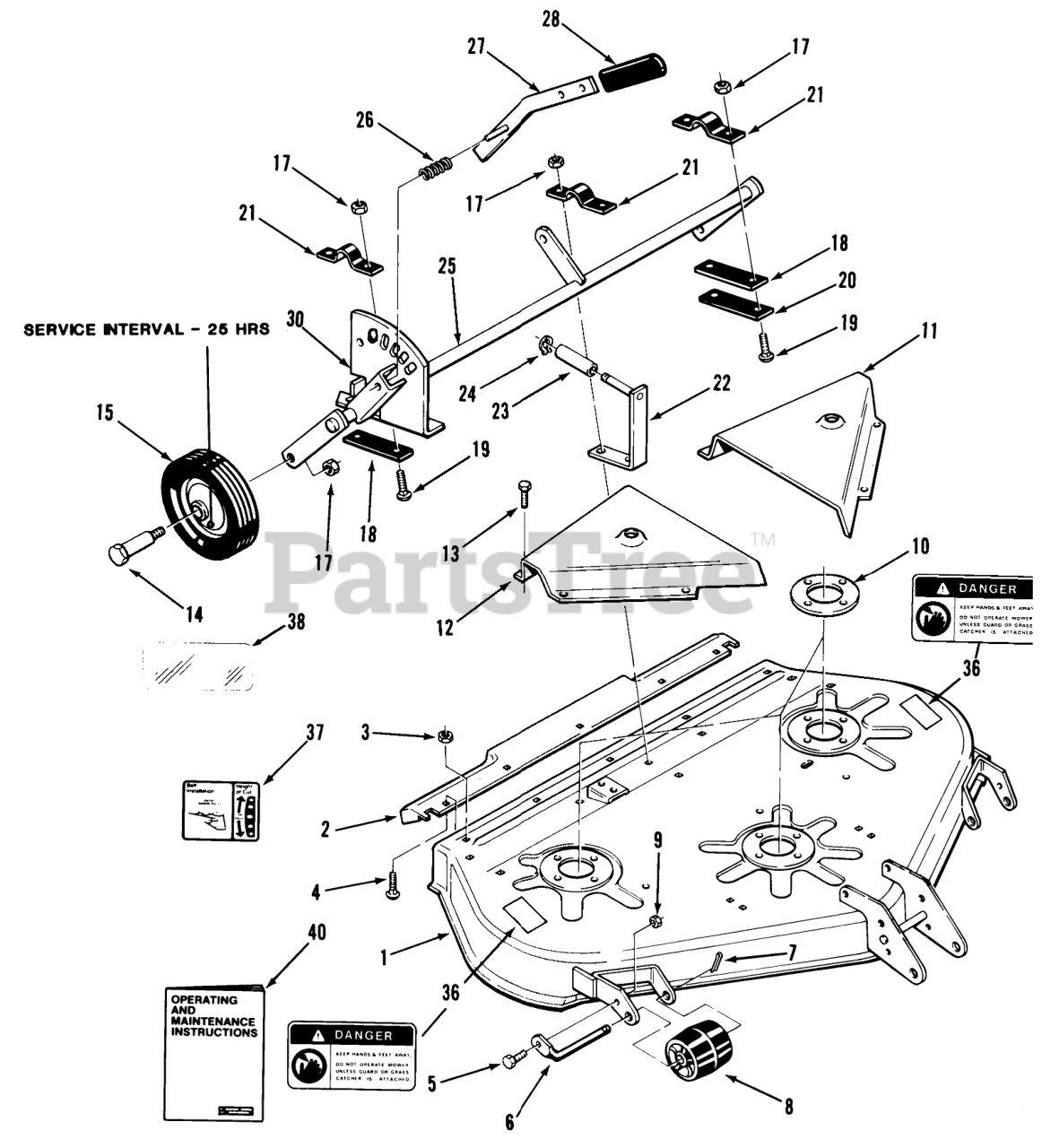

REAR DISCHARGE MOWER-42 IN. (107 CM) Parts Diagram

  • Title
1

Toro 113459

ASSY-42"MOWER DEC R

$

$

Not available

2

Toro 109038

EXTENSION R

$

$

Not available

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

5

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

6

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

7

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

8

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

9

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 10

0

10

Toro 106117

PLATE-SPINDLE

$20.99

$

Usually ships in 3-6 days

0

11

Toro 106638

Belt Cover LH
(Superseded to 106638-01)

$64.99

$

Usually ships in 3-6 days

0

12

Toro 106409

Belt Cover RH
(Superseded to 106409-01)

$64.99

$

Usually ships in 3-6 days

0

13

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

14

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

15

Toro 110506

WHEEL

$42.99

$

In Stock, only 2 left!

0

17

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

18

Toro 110842

STRAP 1/16 B

$

$

Not available

19

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

20

Toro 110840

Bar
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

21

$8.99

$

Usually ships in 3-6 days

0

22

Toro 112751

ASSY-GUIDE BRKT 4 R

$

$

Not available

23

Toro 106383

SPACER

$

$

Not available

24

Toro 936117

Snap Ring
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

25

Toro 109284

Gage Wheel Support
(Superseded to 115469)

$

$

Not available

26

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

27

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

28

$2.49

$

Usually ships in 3-6 days

0

30

Toro 106392

Quadrant
(Superseded to 106392-01)

$33.99

$

Usually ships in 3-6 days

0

36

Toro 111188

Danger Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

37

Toro 106749

DECAL-HEIGHT BELT

$

$

Not available

38

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

40

Toro 810552R1

Owner-s & Maintenance Instructions

$

$

Currently unavailable
