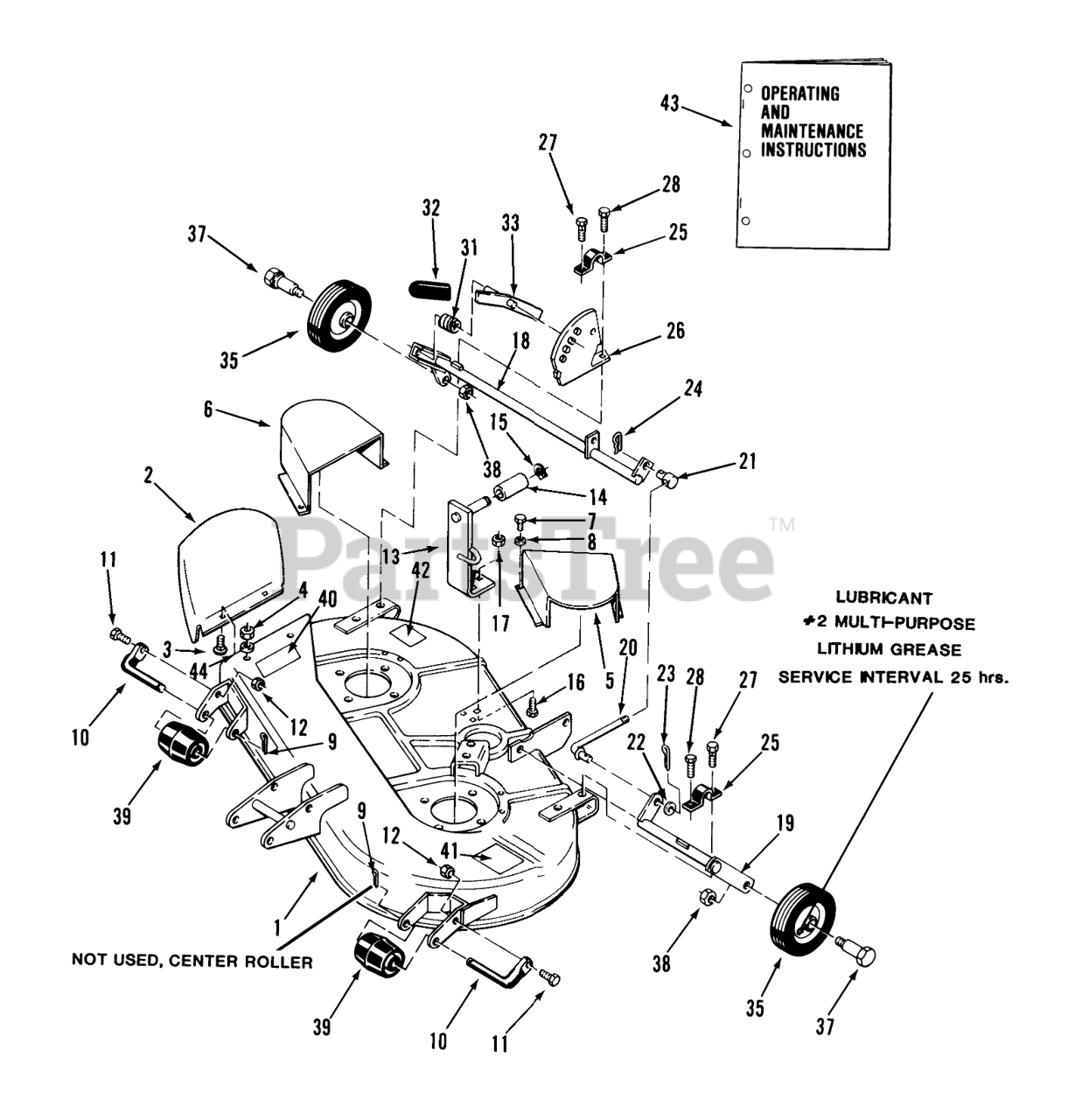

05-42SB04 - Toro 42" Side-Discharge Mower Deck (1985) SIDE DISCHARGE MOWER-37 IN. (94 CM) Parts Diagram

42" Side-Discharge Mower Deck

SIDE DISCHARGE MOWER-37 IN. (94 CM) Parts Diagram

  • Title

1

Toro 111125

Mower Deck
(Superseded to 18-1199)

$

$

Not available

2

Toro 108170

Chute Extension
(Superseded to 92-7290)

$

$

Not available

3

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

4

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

5

Toro 109999

COVER R

$

$

Not available

6

Toro 109998

COVER R

$281.99

$

Usually ships in 3-6 days

0

7

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

8

Toro 920037

WASHER

$

$

Not available

9

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

10

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

11

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

12

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

13

Toro 109993

BRACKET ASSY R

$

$

Not available

14

Toro 106383

SPACER

$

$

Not available

15

Toro 936117

Snap Ring
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

16

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

18

Toro 108183

Gage Wheel Support RH

$

$

Not available

19

Toro 108187

WA GAG WHL R
(Superseded to 108187-01)

$

$

Not available

20

Toro 110844

ROD CONNECTING

$33.99

$

Usually ships in 3-6 days

0

21

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

22

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

23

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

24

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

25

Toro 110841

Camp

$8.99

$

Usually ships in 3-6 days

0

26

Toro 111083

QUADRANT R

$

$

Not available

27

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

28

Toro 926716

Bolt
(Superseded to 9267164)

$

$

Not available

31

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

32

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

33

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

35

Toro 110506

WHEEL

$42.99

$

In Stock, only 2 left!

0

37

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

38

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

39

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

40

Toro 108885

DECAL

$

$

Not available

41

Toro 108883

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

42

Toro 108581

DECAL-BELT&HEIGHT

$

$

Not available

43

Toro 810391R1

Operating & Maintenance Instructions

$

$

Currently unavailable

44

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0
