05-42SB03 - Toro 42" Side-Discharge Mower Deck (1985) SIDE DISCHARGE MOWER-32 IN. (81 CM) Parts Diagram

42" Side-Discharge Mower Deck

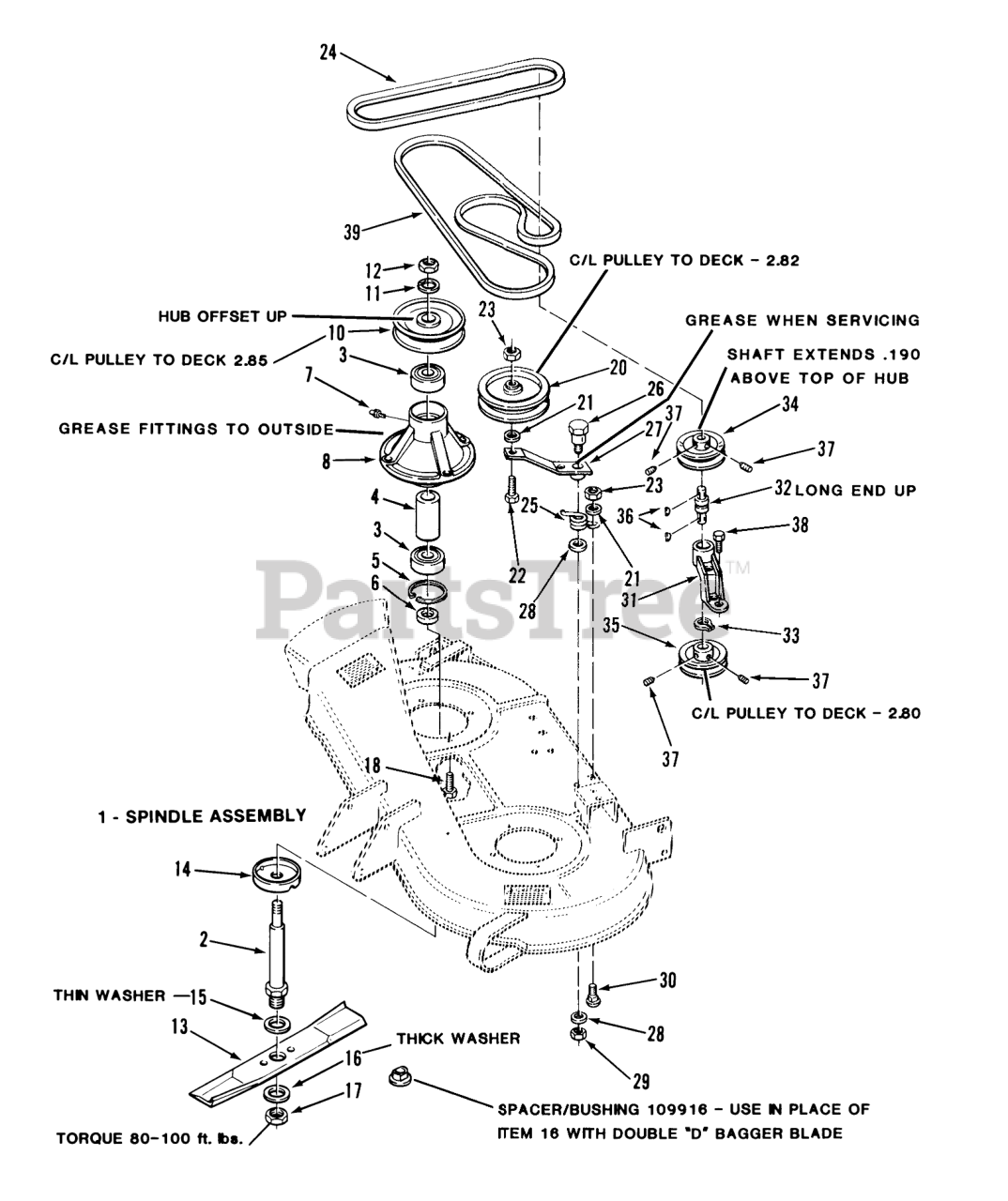

SIDE DISCHARGE MOWER-32 IN. (81 CM) Parts Diagram

  • Title

1

Toro 109911

Spindle Assembly (Includes Items 2 to 8, 14)

$

$

Not available

2

Toro 109912

SHAFT SPINDLE

$

$

Not available

3

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

4

Toro 110200

TUBE

$

$

Not available

5

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

6

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

7

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$

$

Not available

8

Toro 109913

HOUSING SPINDLE

$

$

Not available

10

Toro 109984

PULLEY BLADE

$

$

Not available

11

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

12

Toro 9150894

Jam Nut
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, Qty 12

0

13

Toro 109078

ASSY BLADE KIT

$

$

Not available

14

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

15

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

16

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$7.49

$

In Stock, Qty 6

0

17

Toro 9150904

Nut-Jam
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$4.49

$

In Stock, Qty 5

0

18

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

20

Toro 106144

Idler Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

21

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 15

0

22

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

23

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

24

Toro 108196

V-BELT

$27.99

$

Usually ships in 3-6 days

0

25

Toro 108177

SPRING-TORSION

$19.99

$

Usually ships in 3-6 days

0

26

Toro 108176

BOLT-SHOULDER

$

$

Not available

27

Toro 108782

Idler Arm

$

$

Not available

28

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

29

Toro 109996

NUT-JAM(7/16-14)

$

$

Not available

30

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

31

Toro 104176

HOUSING DRIVE BRG R
(Superseded to 104176-01)

$

$

Not available

32

Toro 106388

BEARING-INT SHAFT

$164.99

$

Usually ships in 3-6 days

0

33

Toro 936021

Snap Ring
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

34

Toro 108786

PULLEY

$

$

Not available

35

Toro 109310

PULLEY-SPLIT

$90.99

$

Usually ships in 3-6 days

0

36

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

37

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

38

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

39

Toro 109640

BELT-V MOWER

$

$

Not available
