05-42SB01 - Toro 42" Side-Discharge Mower Deck (1983) REAR AND SIDE DISCHARGE MOWERS-42 IN. (107 CM)(VEHICLE IDENTIFICATION NUMBER 05-42SB01) Parts Diagram

42" Side-Discharge Mower Deck

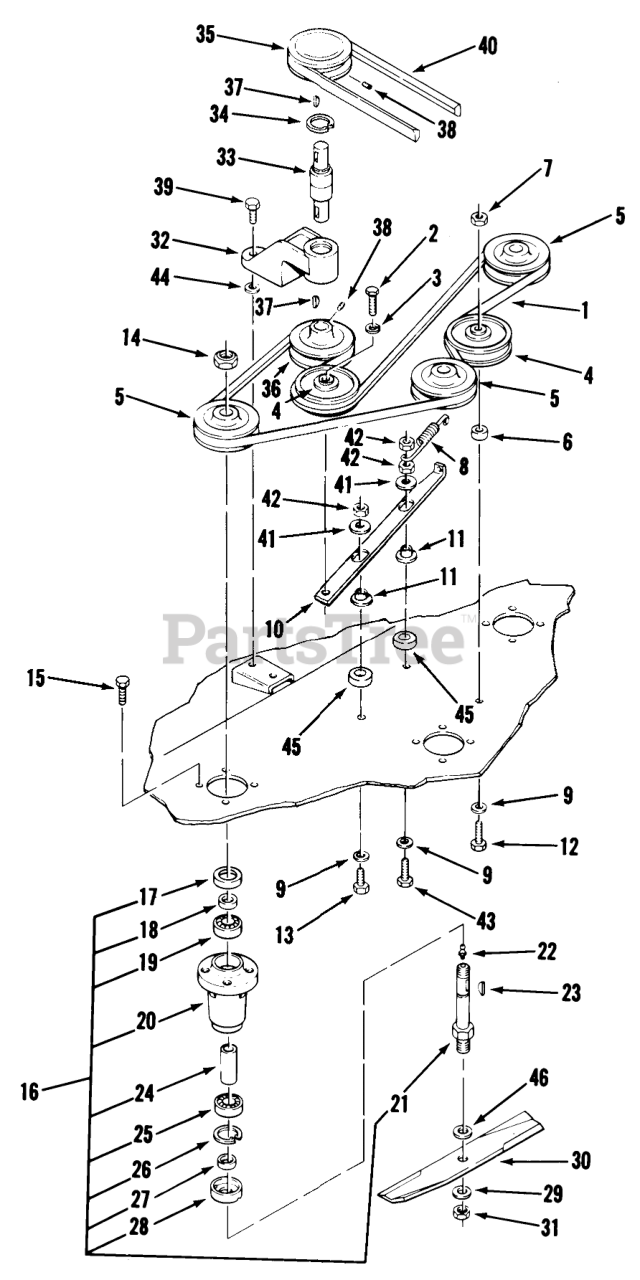

REAR AND SIDE DISCHARGE MOWERS-42 IN. (107 CM)(VEHICLE IDENTIFICATION NUMBER 05-42SB01) Parts Diagram

  • Title

1

Toro 106516

V-BELT

$56.99

$

Usually ships in 3-6 days

0

2

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 1 left!

0

5

Toro 106072

PULLEY-BLADE DRIVE

$73.99

$

In Stock, only 1 left!

0

6

Toro 102704

SPACER

$2.49

$

In Stock, Qty 8

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

8

Toro 106517

SPRING-EXTENSION

$12.99

$

Usually ships in 3-6 days

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

10

Toro 106389

BAR-SLIDER

$

$

Not available

11

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 915090

Nut
(Superseded to 32146-20)

$3.49

$

In Stock, Qty 6

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

16

Toro 108848

Spindle Assembly

$

$

Not available

17

Toro 106075

SEAL

$11.99

$

In Stock, Qty 6

0

18

Toro 106070

SPACER-SEAL

$16.99

$

Usually ships in 3-6 days

0

19

Toro 106085

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

20

Toro 106063

HOUSING-SPINDLE

$

$

Not available

21

Toro 108849

7" X 3/4" SHAFT.JAK

$147.99

$

Usually ships in 3-6 days

0

22

Toro 4459

Grease Fitting
(Superseded to 302-5)

$3.49

$

In Stock, Qty 20+

0

23

Toro 937156

Hi-Pro Key 3/16 x 5/8
(Superseded to 937222)

$3.49

$

In Stock, Qty 14

0

24

Toro 106069

SPACER

$18.99

$

Usually ships in 3-6 days

0

25

Toro 106084

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

Usually ships in 3-6 days

0

29

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$6.49

$

In Stock, Qty 6

0

31

Toro 915090

Nut
(Superseded to 32146-20)

$3.49

$

In Stock, Qty 6

0

32

Toro 104176

HOUSING DRIVE BRG R
(Superseded to 104176-01)

$

$

Not available

33

Toro 106388

BEARING-INT SHAFT

$141.99

$

Usually ships in 3-6 days

0

34

Toro 936021

Snap Ring
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

35

Toro 106524

PULLEY

$

$

Not available

36

Toro 109310

PULLEY-SPLIT

$79.99

$

Usually ships in 3-6 days

0

37

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

38

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

39

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

40

Toro 106523

Drive Belt
(Superseded to 110141)

$

$

Not available

41

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

42

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

43

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

44

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

45

Toro 106461

SPACER

$

$

Not available

46

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

2

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

6

Toro 105615

SPACER

$

$

Not available

12

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

13

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

30

Toro 106636

14IN BLADE KIT

$64.99

$

In Stock, only 1 left!

0

42

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

43

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0
