05-42RY02 - Toro 42" Rear-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) DECK ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck

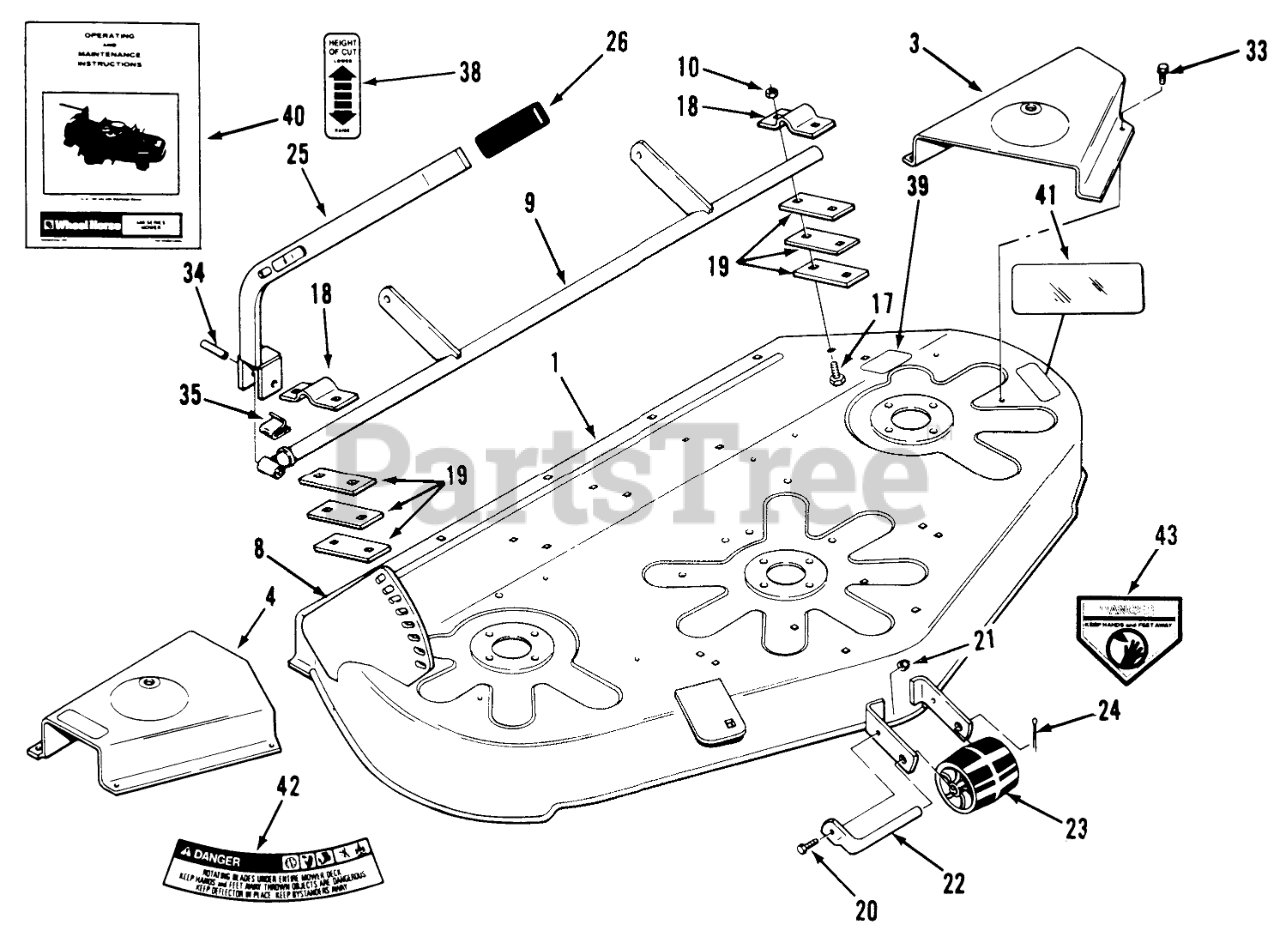

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 115755

Deck-Mower
(Superseded to 92-8018)

$

$

Not available

3

Toro 116427

Belt Cover LH
(Superseded to 116427-01)

$

$

Not available

4

Toro 116426

Belt Cover RH
(Superseded to 116426-01)

$69.99

$

Usually ships in 3-6 days

0

8

Toro 118870

QUADRANT 42RY MOWER

$

$

Not available

9

Toro 118830

Lift Support
(Superseded to 118830-01)

$

$

Not available

10

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

17

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

18

$8.99

$

Usually ships in 3-6 days

0

19

Toro 110840

Bar
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

20

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

22

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

23

Toro 108789

Roller

$

$

Not available

24

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

25

Toro 79-0990

Lever
(Superseded to 79-0990-01)

$

$

Not available

26

$9.49

$

In Stock, only 1 left!

0

33

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

34

Toro 933244

SPIROL PIN 3/8X1 1/2

$

$

Not available

35

Toro 112730

CLIP-SPRING

$47.99

$

Usually ships in 3-6 days

0

38

Toro 111655

DECAL-HOC

$3.49

$

Usually ships in 3-6 days

0

40

Toro 810731R1

Manual-Operators

$

$

Currently unavailable

41

Toro 112403

DECAL-OVERLAY

$7.49

$

Usually ships in 3-6 days

0

42

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0

43

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 6

0
