05-42RY01 - Toro 42" Rear-Discharge Mower Deck (1990) SIDE DISCHARGE MOWER-38 IN. (97 CM) VEHICLE IDENTIFICATION NUMBER 05-38SY01 Parts Diagram

42" Rear-Discharge Mower Deck

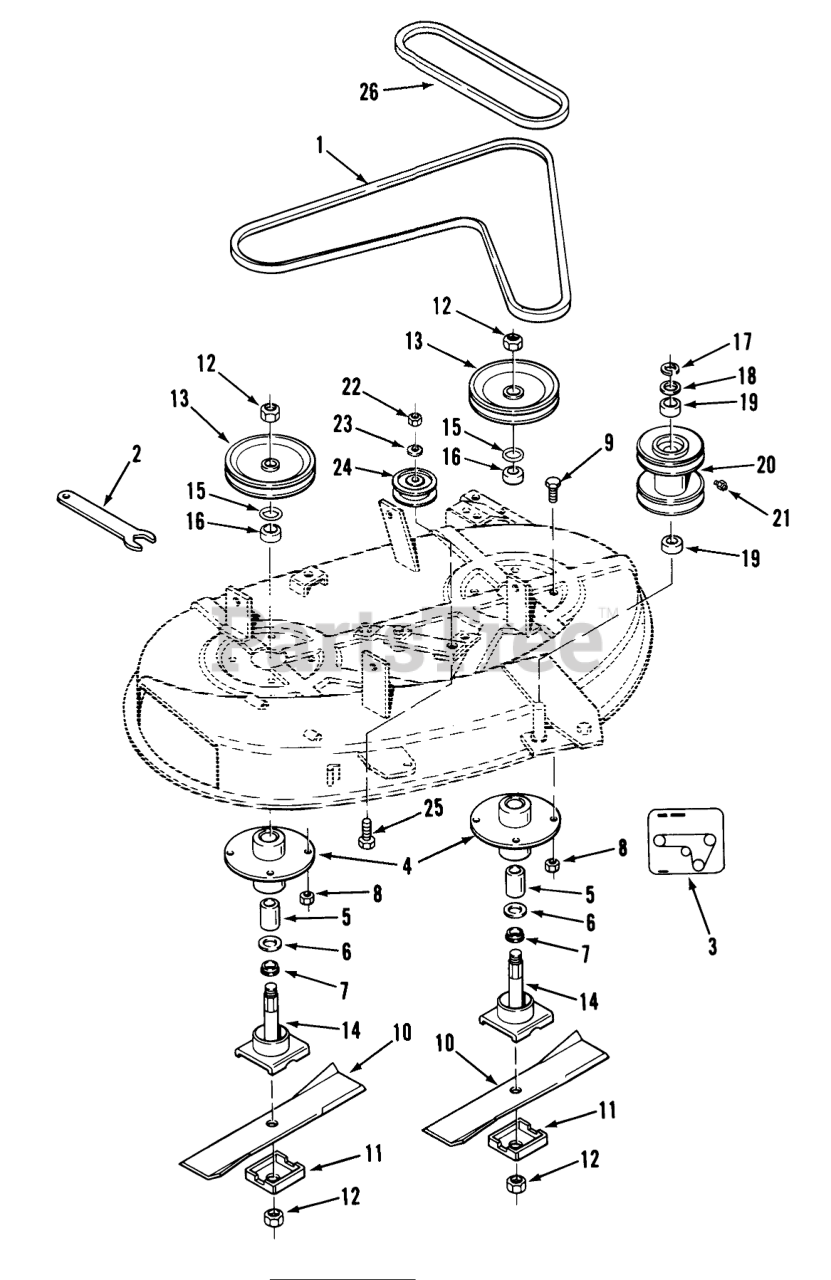

SIDE DISCHARGE MOWER-38 IN. (97 CM) VEHICLE IDENTIFICATION NUMBER 05-38SY01 Parts Diagram

  • Title
1

Toro 116667

V-BELT

$72.99

$

Usually ships in 3-6 days

0

2

Toro 114647

Spindle Wrench

$

$

Not available

3

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

4

Toro 60-9670

Spindle
(Superseded to 79-1050-03)

$267.99

$

Usually ships in 3-6 days

0

5

Toro 54-0210

BEARING SPACER
(Superseded to 55-7680)

$

$

Not available

6

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0

7

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

8

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

10

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$42.99

$

In Stock, only 2 left!

0

11

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

12

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

13

Toro 55-7690

DECK PULLEY

$

$

Not available

14

Toro 47-0091

SPINDLE SHAFT WA

$

$

Not available

15

Toro 920216

Washer
(Superseded to 9202164)

$3.99

$

Usually ships in 3-6 days

0

16

Toro 251-297

BEARING-BALL

$19.99

$

In Stock, only 2 left!

0

17

Toro 105005

RETAINING RING

$

$

Not available

18

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

20

Toro 116165

PULLEY-COUNTER SHAFT

$

$

Not available

21

Toro 1030

Zerk

$

$

Not available

22

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

23

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

24

Toro 112895

Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

25

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

26

Toro 116666

V-BELT

$

$

Not available
