05-38SY01 - Toro 38" Side-Discharge Mower Deck (1990) SIDE DISCHARGE MOWER-42 IN (107 CM) VEHICLE IDENTIFICATION NUMBER 05-42SY01 Parts Diagram

38" Side-Discharge Mower Deck

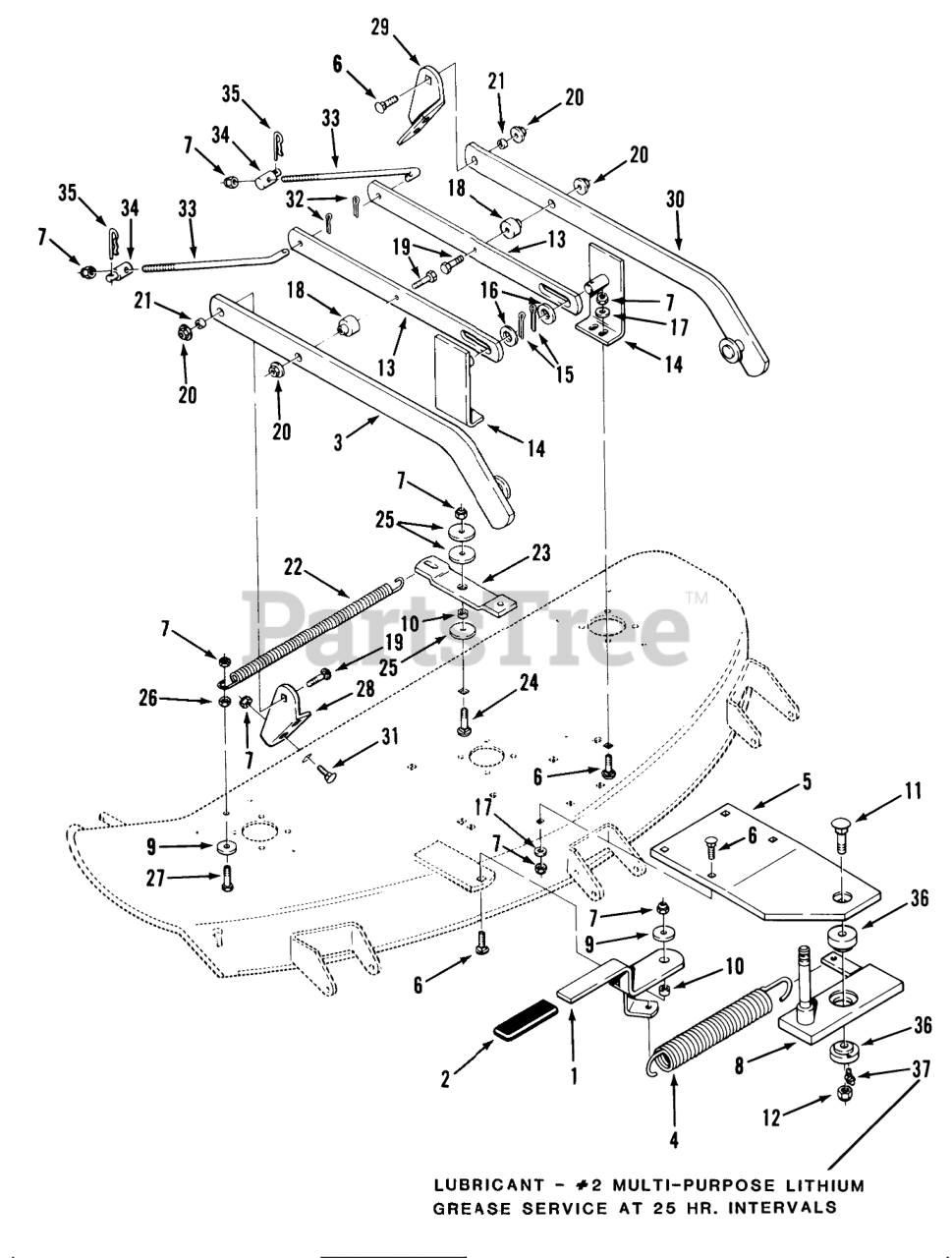

SIDE DISCHARGE MOWER-42 IN (107 CM) VEHICLE IDENTIFICATION NUMBER 05-42SY01 Parts Diagram

  • Title
1

Toro 116510

Lever
(Superseded to 116510-01)

$

$

Not available

2

$9.49

$

In Stock, only 1 left!

0

3

Toro 116980

WLDMT-DRAFT BAR R R

$

$

Not available

4

Toro 116167

Spring
(Superseded to 116167-01)

$

$

Not available

5

Toro 116620

Plate
(Superseded to 116620-01)

$

$

Not available

6

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

7

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

8

Toro 116161

Countershaft
(Superseded to 116161-01)

$400.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

10

Toro 4627

SPACER

$

$

Not available

11

Toro 900271

Bolt
(Superseded to 9002719)

$6.49

$

In Stock, only 1 left!

0

12

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

13

Toro 116176

BAR-LEVELER R

$58.99

$

Usually ships in 3-6 days

0

14

Toro 116979

FR DECK BRACKET R

$

$

Not available

15

Toro 932035

PIN-4

$

$

Not available

16

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

17

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

18

Toro 115706

SPACER

$29.99

$

Usually ships in 3-6 days

0

19

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

20

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

21

Toro 115705

SPACER

$

$

Not available

22

Toro 116172

SPRING - EXTENSION

$51.99

$

Usually ships in 3-6 days

0

23

Toro 116171

Arm-Idler
(Superseded to 116171-01)

$36.99

$

Usually ships in 3-6 days

0

24

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

25

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

26

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

27

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

28

Toro 115711

Bracket LH
(Superseded to 115711-01)

$

$

Not available

29

Toro 115710

Bracket RH
(Superseded to 115710-01)

$

$

Not available

30

Toro 116981

WLDMT-DRAFT BAR L R

$

$

Not available

31

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

32

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

33

Toro 110173

Lift Rod
(Superseded to 92-9841)

$45.99

$

In Stock, only 2 left!

0

34

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

35

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

36

Toro 116621

BUSHING

$25.99

$

Usually ships in 3-6 days

0

37

Toro 111420

Fitting-Grease
(Superseded to 302-11)

$1.99

$

In Stock, only 2 left!

0
