05-38SY01 - Toro 38" Side-Discharge Mower Deck (1990) SIDE DISCHARGE MOWER-42 IN (107 CM) VEHICLE IDENTIFICATION NUMBER 05-42SY01 Parts Diagram

38" Side-Discharge Mower Deck

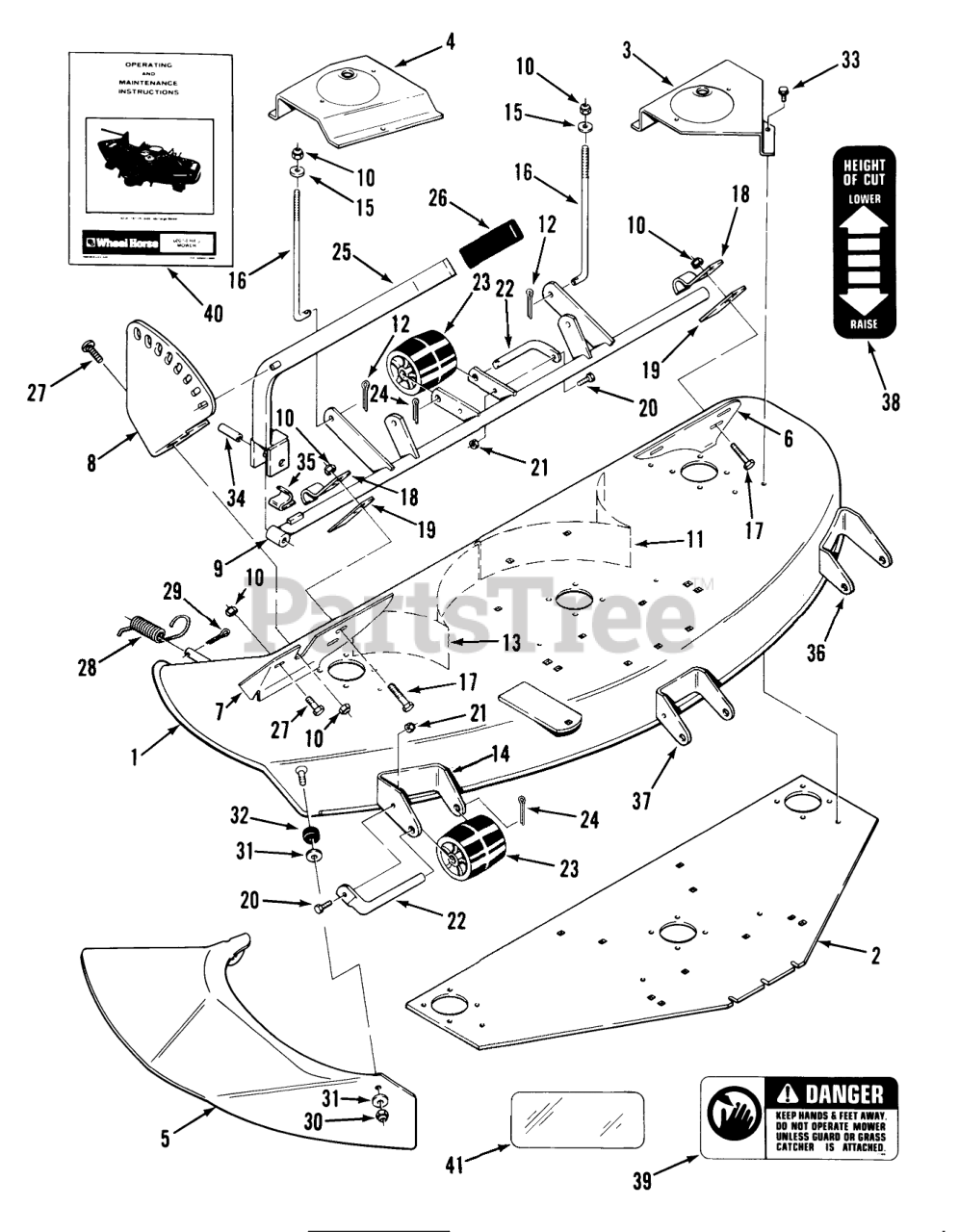

SIDE DISCHARGE MOWER-42 IN (107 CM) VEHICLE IDENTIFICATION NUMBER 05-42SY01 Parts Diagram

  • Title

1

Toro 116858

Mower Deck
(Superseded to 92-9802)

$1965.99

$

Usually ships in 3-6 days

0

2

Toro 116182

PLATE-DECK REINFO R

$

$

Not available

3

Toro 116204

Belt Cover LH
(Superseded to 116204-01)

$

$

Not available

4

Toro 116236

Belt Cover RH
(Superseded to 116236-01)

$109.99

$

Usually ships in 3-6 days

0

5

Toro 115994

Chute Extension
(Superseded to 99-3708)

$263.99

$

Usually ships in 3-6 days

0

6

Toro 116871

PLATE-WEAR L.H. R

$

$

Not available

7

Toro 116870

PLATE-WEAR R.H. R

$

$

Not available

8

Toro 116272

Quadrant
(Superseded to 78-2470-01)

$89.99

$

Usually ships in 3-6 days

0

9

Toro 116271

WLDMT-LIFT ASS'Y R

$

$

Not available

10

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

11

Toro 116857

BAFFLE-DECK LH

$

$

Not available

12

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

13

Toro 116856

BAFFLE-DECK RH

$

$

Not available

14

Toro 115050

BRKT-ROLLER R

$

$

Not available

15

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

16

Toro 102035

ROD-LEVELER

$53.99

$

Usually ships in 3-6 days

0

17

Toro 900066

Carriage Bolt
(Superseded to 323-15)

$1.99

$

In Stock, Qty 6

0

18

Toro 110837

Clamp
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

19

Toro 110838

Bar
(Superseded to 110838-03)

$26.99

$

Usually ships in 3-6 days

0

20

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

22

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

23

Toro 108798

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 16

0

24

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

25

Toro 116276

Lever
(Superseded to 79-1010-01)

$149.99

$

Usually ships in 3-6 days

0

26

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

27

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

28

Toro 116082

Spring
(Superseded to 93-1631)

$29.99

$

Usually ships in 3-6 days

0

29

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

30

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

31

Toro 116083

Washer
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 15

0

32

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

33

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

34

Toro 933244

SPIROL PIN 3/8X1 1/2

$

$

Not available

35

Toro 112730

CLIP-SPRING

$47.99

$

Usually ships in 3-6 days

0

36

Toro 115051

BRKT-ROLER R

$33.99

$

Usually ships in 3-6 days

0

37

Toro 115060

BRKT-ROLLER

$

$

Not available

38

Toro 111655

DECAL-HOC

$3.49

$

Usually ships in 3-6 days

0

39

Toro 111188

Danger Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

40

Toro 810598R1

Operator-s Manual

$

$

Currently unavailable

41

Toro 112403

DECAL-OVERLAY

$7.49

$

Usually ships in 3-6 days

0
