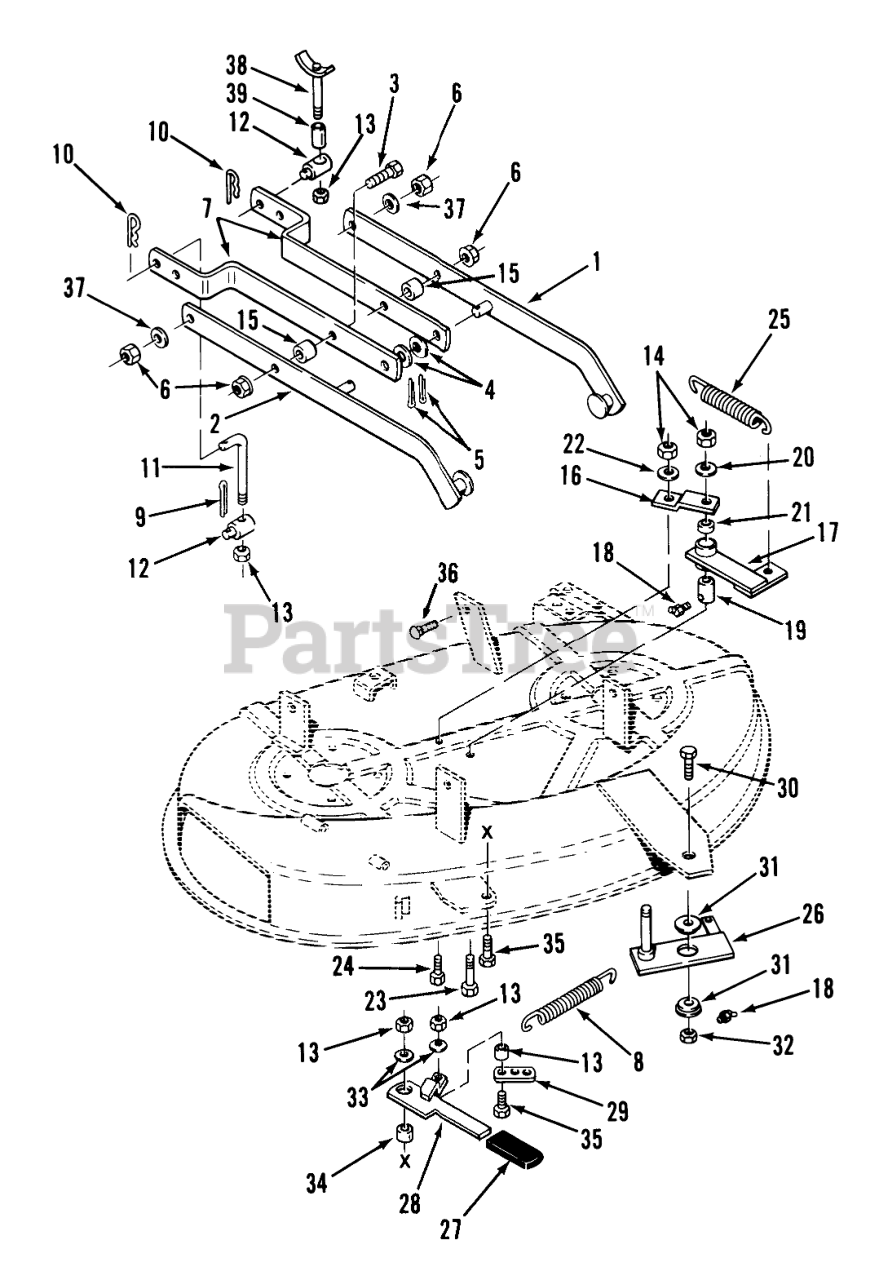

05-38SY01 - Toro 38" Side-Discharge Mower Deck (1990) SIDE DISCHARGE MOWER-38 IN. (97 CM) VEHICLE IDENTIFICATION NUMBER 05-38SY01 Parts Diagram

38" Side-Discharge Mower Deck

SIDE DISCHARGE MOWER-38 IN. (97 CM) VEHICLE IDENTIFICATION NUMBER 05-38SY01 Parts Diagram

  • Title

1

Toro 117071

Draft Bar LH
(Superseded to 117071-01)

$

$

Not available

2

Toro 117072

Draft Bar RH
(Superseded to 117072-01)

$

$

Not available

3

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

4

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

5

Toro 932035

PIN-4

$

$

Not available

6

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

7

Toro 120070

Bar-Leveler
(Superseded to 120070-01)

$

$

Not available

8

Toro 116167

Spring
(Superseded to 116167-01)

$

$

Not available

9

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

10

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

11

Toro 121010

ROD-LIFT

$25.99

$

Usually ships in 3-6 days

0

12

Toro 116815

Trunion
(Superseded to 79-2790)

$43.99

$

Usually ships in 3-6 days

0

13

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

14

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

15

Toro 115706

SPACER

$29.99

$

Usually ships in 3-6 days

0

16

Toro 117086

Strap
(Superseded to 117086-01)

$

$

Not available

17

Toro 117083

Arm-Idler
(Superseded to 117083-01)

$

$

Not available

18

Toro 1030

Zerk

$

$

Not available

19

Toro 114512

SPACER-2.0 LG R

$

$

Not available

20

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

21

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

22

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

23

Toro 908026

Pin-Cotter
(Superseded to 322-13)

$3.49

$

In Stock, only 2 left!

0

24

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

25

Toro 120580

SPRING

$

$

Not available

26

Toro 116368

Countershaft
(Superseded to 116368-01)

$

$

Not available

27

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

28

Toro 117088

Lever
(Superseded to 117088-01)

$

$

Not available

29

Toro 117090

Link
(Superseded to 117090-01)

$

$

Not available

30

Toro 900271

Bolt
(Superseded to 9002719)

$6.49

$

In Stock, only 1 left!

0

31

Toro 116621

BUSHING

$25.99

$

Usually ships in 3-6 days

0

32

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

33

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

34

Toro 4627

SPACER

$

$

Not available

35

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

36

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

37

Toro 115705

SPACER

$

$

Not available

38

Toro 116816

WLDMT-HANGER ROD

$

$

Not available

39

Toro 979180

SPACER .375 ID X 1.6

$

$

Not available
