05-38SS02 - Toro 38" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) CUTTING UNIT ASSEMBLY Parts Diagram

38" Side-Discharge Mower Deck

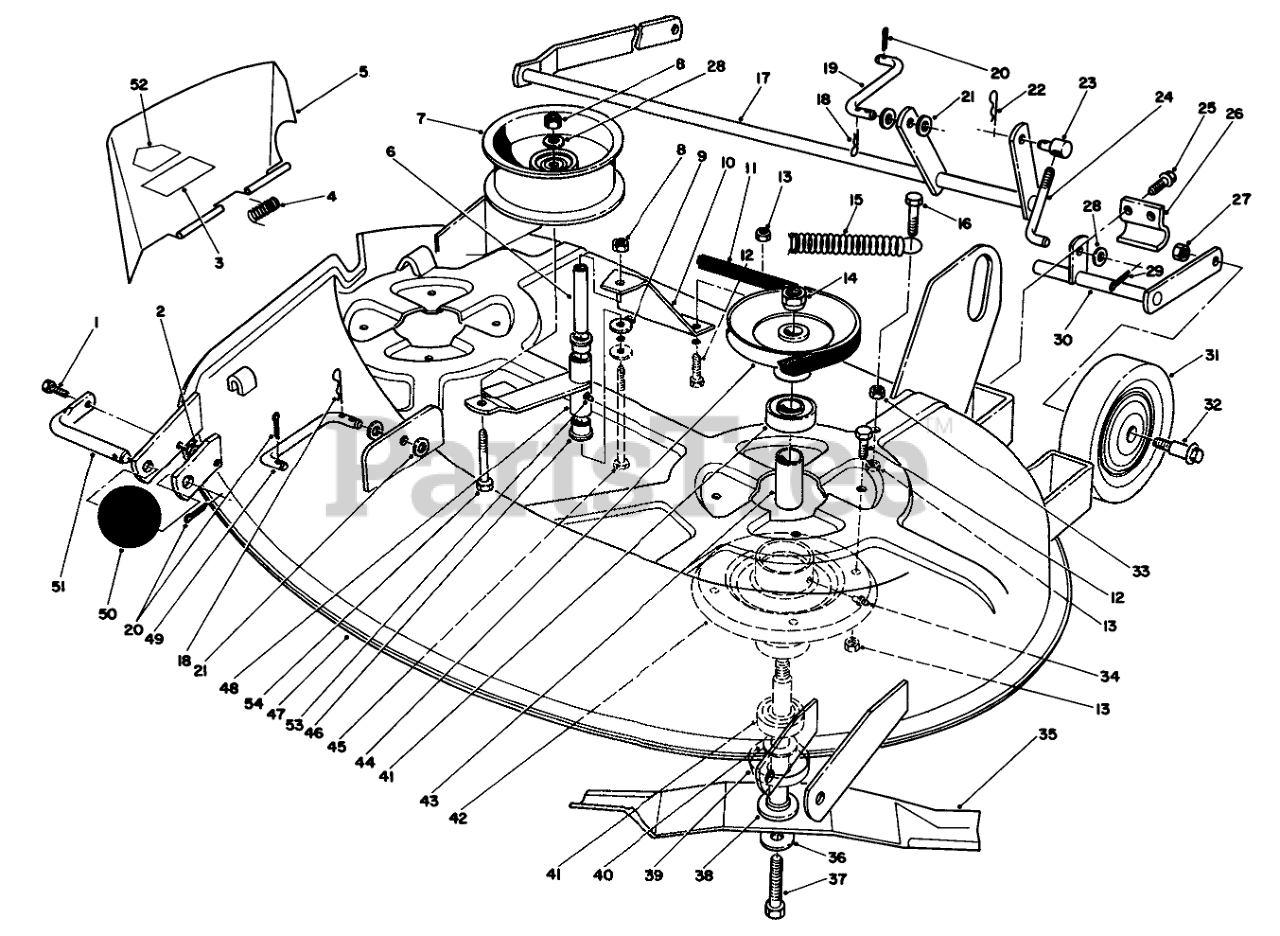

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

4

Toro 119691

SPRING-TORSION

$

$

Not available

5

Toro 119740

Deflector
(Superseded to 119740-01)

$

$

Not available

6

Toro 109950

SPACER

$23.99

$

Usually ships in 3-6 days

0

7

Toro 78-8250

Pulley-Idler
(Superseded to 92-7082)

$133.99

$

In Stock, only 2 left!

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

10

Toro 78-8091

Brace
(Superseded to 78-8091-01)

$

$

Not available

11

Toro 79-5980

V-BELT

$49.99

$

In Stock, only 1 left!

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 915007

Nut
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 20+

0

15

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

16

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

17

Toro 78-8011

Shaft-R.H.
(Superseded to 78-8011-03)

$143.99

$

Usually ships in 3-6 days

0

18

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

19

Toro 78-8071

LINK-REAR

$58.99

$

Usually ships in 3-6 days

0

20

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

23

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

24

Toro 121010

ROD-LIFT

$25.99

$

Usually ships in 3-6 days

0

25

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

26

Toro 78-6400

Camp
(Superseded to 78-6400-03)

$

$

Not available

27

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

30

Toro 78-7991

Shaft-L.H.
(Superseded to 78-7991-01)

$

$

Not available

31

Toro 110506

WHEEL

$42.99

$

In Stock, Qty 10

0

32

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

33

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

34

Toro 302-16

ZERK FITTING

$

$

Not available

35

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$42.99

$

Usually ships in 3-6 days

0

36

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

37

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

38

Toro 80-4351

SHAFT-SPINDLE

$175.99

$

In Stock, only 1 left!

0

39

Toro 80-4370

SHIELD-BEARING

$18.99

$

In Stock, only 1 left!

0

40

Toro 80-4390

SPACER-HARDNED

$4.49

$

Usually ships in 3-6 days

0

41

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

Usually ships in 3-6 days

0

42

Toro 79-1050

Housing-Spindle
(Superseded to 79-1050-03)

$267.99

$

Usually ships in 3-6 days

0

43

Toro 79-2780

SPACER

$23.99

$

In Stock, only 1 left!

0

44

Toro 78-6042

Pulley-Spindle
(Superseded to 92-7081)

$

$

Not available

45

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

46

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

47

Toro 79-2170

Deck-Cutting Unit
(Superseded to 92-8015)

$

$

Not available

48

Toro 78-3370

Arm-Idler
(Superseded to 78-3370-01)

$

$

Not available

49

Toro 78-6701

LINK-FRONT

$

$

Not available

50

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

51

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$43.99

$

In Stock, only 3 left!

0

52

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

53

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

54

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
