05-38SS02 - Toro 38" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) COVER ASSEMBLY Parts Diagram

38" Side-Discharge Mower Deck

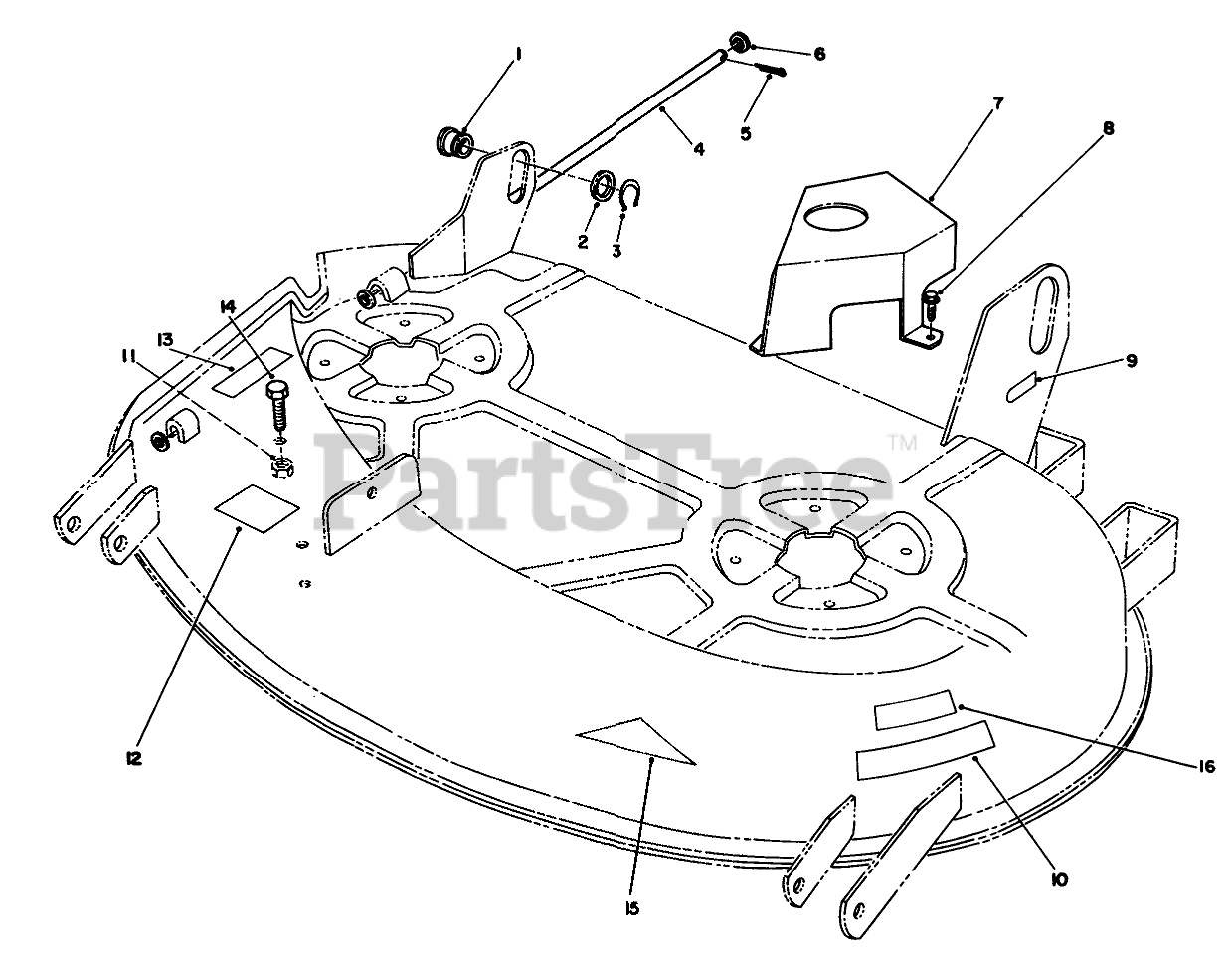

COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

2

Toro 920239

Washer
(Superseded to 9202394)

$2.99

$

Usually ships in 3-6 days

0

3

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

4

Toro 78-0820

ROD

$

$

Not available

5

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 78-6840

Cover-Belt
(Superseded to 78-6840-03)

$66.99

$

Usually ships in 3-6 days

0

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 115196

Decal-Attach-A-Matic
(Superseded to 93-0322)

$

$

Not available

10

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

13

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

14

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

15

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0
