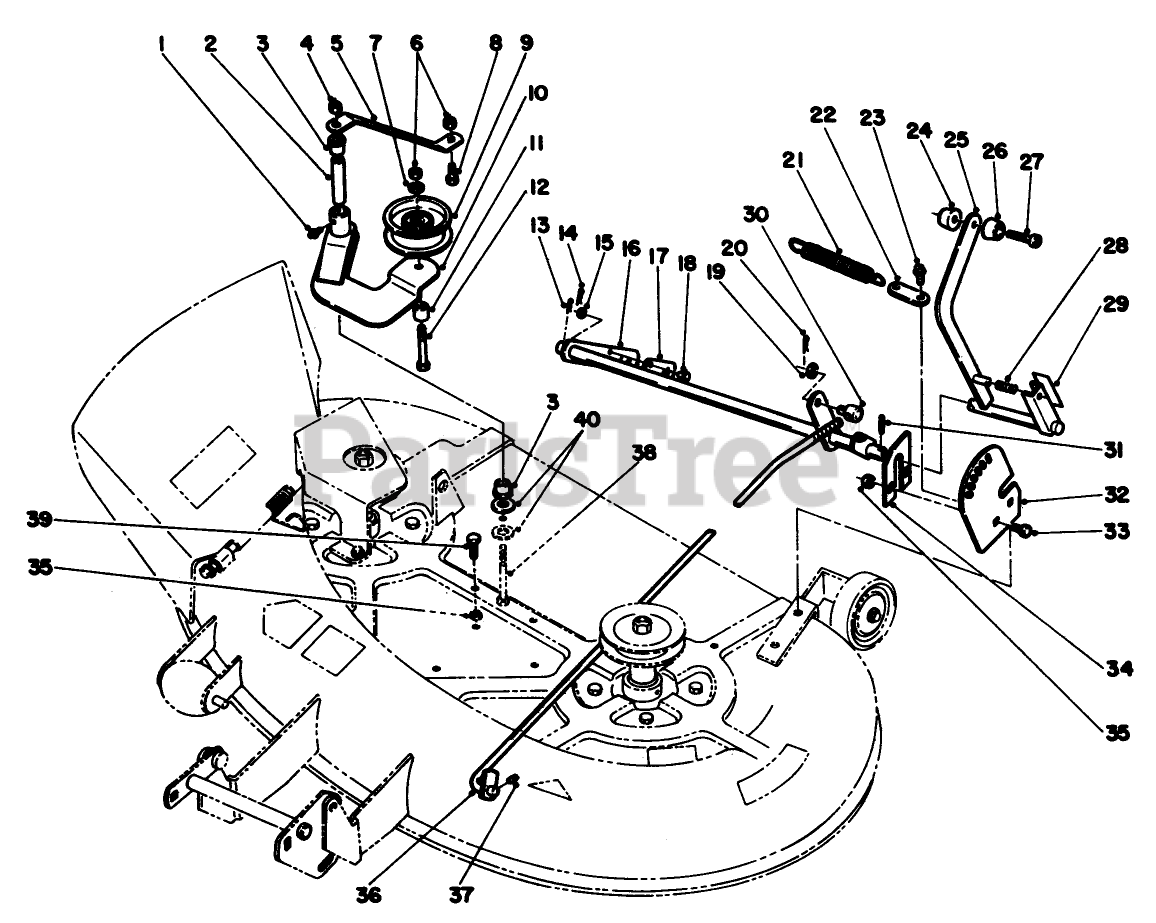

05-38SL02 - Toro 38" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) IDLER PULLEY & HEIGHT ADJUSTMENT Parts Diagram

38" Side-Discharge Mower Deck

IDLER PULLEY & HEIGHT ADJUSTMENT Parts Diagram

  • Title
1

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

2

Toro 109950

SPACER

$23.99

$

Usually ships in 3-6 days

0

3

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 78-5850

BRACE R

$

$

Not available

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 109450

PULLEY-IDLER
(Superseded to 94-4935)

$125.99

$

Usually ships in 3-6 days

0

10

Toro 78-5860

WLDMT-IDLER ARM R

$125.99

$

Usually ships in 3-6 days

0

11

Toro 110369

SPACER

$

$

Not available

12

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

13

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 920237

Washer
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 120671

WLDMT-HEIGHT ADJ R

$

$

Not available

17

Toro 120610

LATCH B
(Superseded to 120610-03)

$

$

Not available

18

$

$

Not available

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

21

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

22

Toro 106318

Lever

$

$

Not available

23

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

24

Toro 8722

KNOB

$21.99

$

In Stock, only 2 left!

0

25

Toro 78-8321

WLDMT-LIFT LEVER R

$

$

Not available

26

Toro 8693

KNOB

$6.99

$

In Stock, Qty 8

0

27

Toro 911747

BOLT-4

$5.49

$

In Stock, Qty 9

0

28

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

29

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

30

Toro 7736

STUD-TRUNION

$

$

Not available

31

Toro 933190

PIN-SPIROL

$

$

Not available

32

Toro 78-1980

QUADRANT R

$

$

Not available

33

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

34

Toro 116790

PLATE-RETAINING R

$

$

Not available

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 120551

WLDMT-HEIGHT ADJ R

$

$

Not available

37

Toro 32121-103

PIN-SPRING

$

$

Not available

38

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

39

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

40

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0
