05-38SL02 - Toro 38" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) DECK ASSEMBLY Parts Diagram

38" Side-Discharge Mower Deck

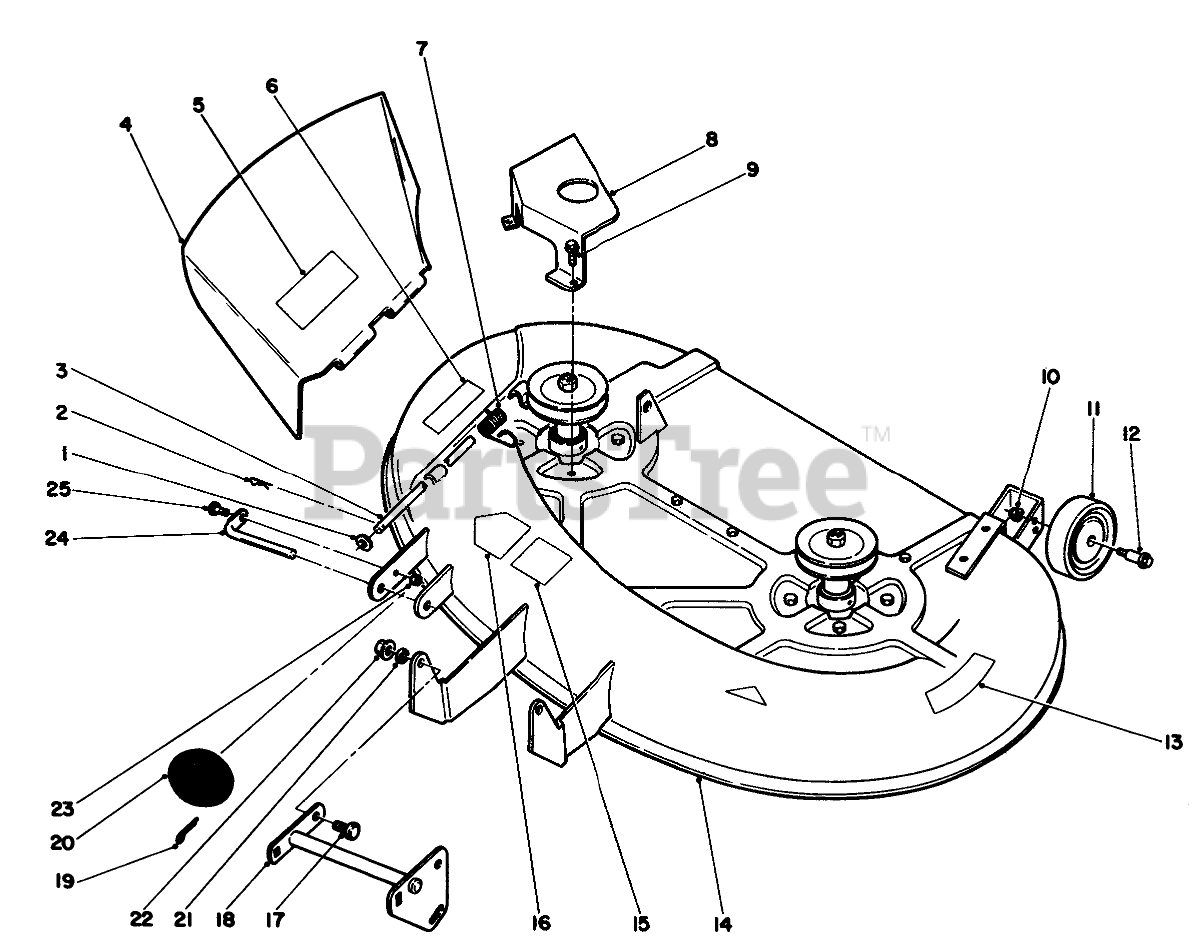

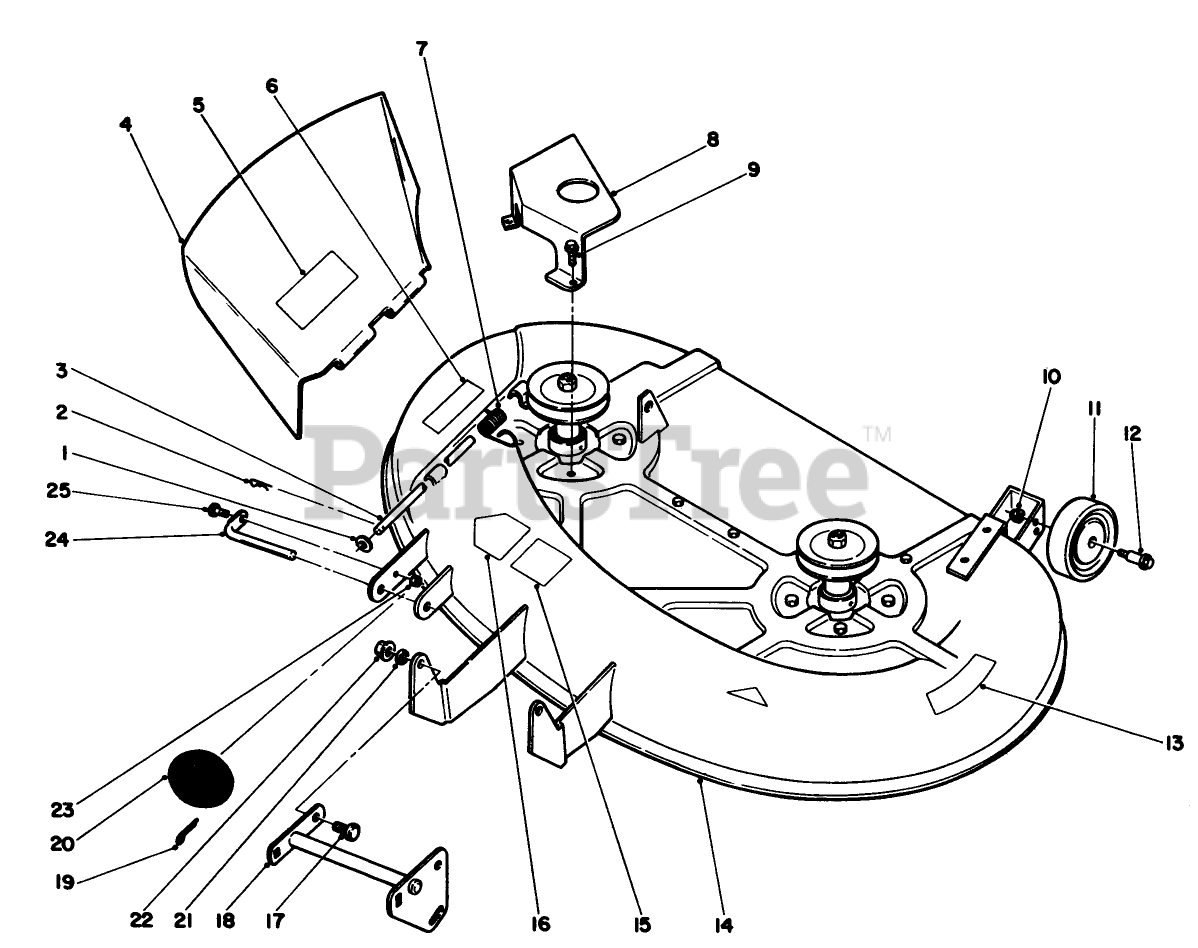

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 78-0820

ROD

$

$

Not available

4

Toro 119740

Deflector
(Superseded to 119740-01)

$

$

Not available

5

Toro 66-1380

HOSE CLAMP R

$

$

Not available

6

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

7

Toro 119691

SPRING-TORSION

$

$

Not available

8

Toro 78-0830

COVER-BELT R

$

$

Not available

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 61-9760

WHEEL-DECK

$52.99

$

In Stock, only 2 left!

0

12

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

13

Toro 76-4070

DECAL - DANGER

$24.99

$

Usually ships in 3-6 days

0

14

Toro 79-2140

Deck W.A.
(Superseded to 14-7219)

$

$

Not available

15

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

16

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 10

0

17

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Toro 114837

ASM-FRONT LIFT R

$157.99

$

Usually ships in 3-6 days

0

19

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

20

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 11

0

21

Toro 102704

SPACER

$2.99

$

In Stock, only 2 left!

0

22

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$46.99

$

In Stock, only 3 left!

0

25

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

Toro 112403

DECAL-OVERLAY

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0
