05-38SL01 - Toro 38" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) 38" MOWER Parts Diagram

38" Side-Discharge Mower Deck

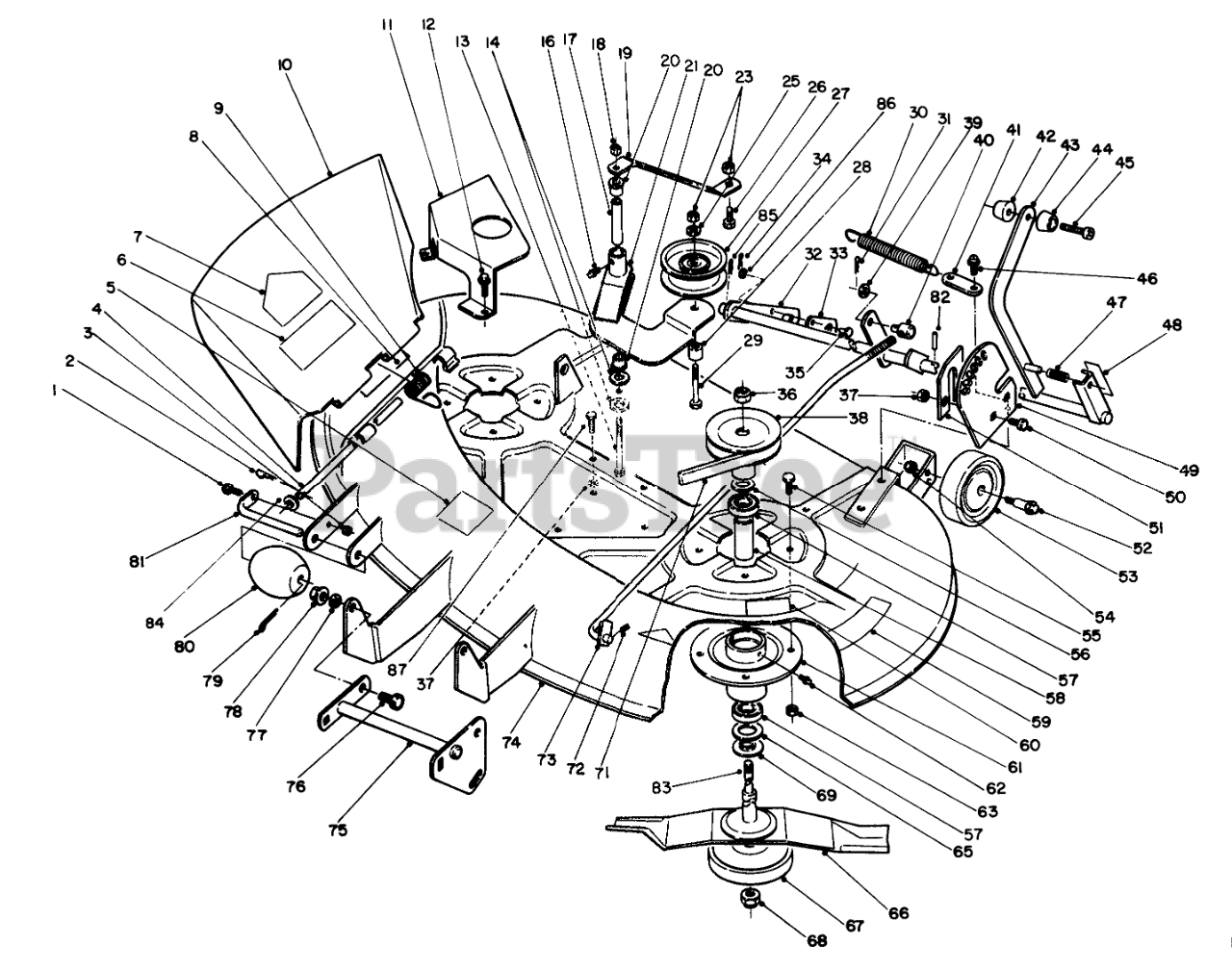

38" MOWER Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 78-0820

ROD

$

$

Not available

5

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

6

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

7

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

8

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

9

Toro 119691

SPRING-TORSION

$

$

Not available

10

Toro 119740

Deflector
(Superseded to 119740-01)

$

$

Not available

11

Toro 78-0830

COVER-BELT R

$

$

Not available

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

17

Toro 109950

SPACER

$23.99

$

Usually ships in 3-6 days

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 78-5850

BRACE R

$

$

Not available

20

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

21

Toro 78-5860

WLDMT-IDLER ARM R

$125.99

$

Usually ships in 3-6 days

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 109450

PULLEY-IDLER
(Superseded to 94-4935)

$125.99

$

Usually ships in 3-6 days

0

28

Toro 110369

SPACER

$

$

Not available

29

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

30

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

31

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

32

Toro 120671

WLDMT-HEIGHT ADJ R

$

$

Not available

33

Toro 120610

LATCH B
(Superseded to 120610-03)

$

$

Not available

34

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

35

Toro 9329604

Pin-Clevis

$

$

Currently unavailable

36

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 120240

PULLEY-SPINDLE

$88.99

$

In Stock, only 1 left!

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 7736

STUD-TRUNION

$

$

Not available

41

Toro 106318

Lever

$

$

Not available

42

Toro 8722

KNOB

$21.99

$

In Stock, only 2 left!

0

43

Toro 78-8321

WLDMT-LIFT LEVER R

$

$

Not available

44

Toro 8693

KNOB

$6.99

$

In Stock, Qty 8

0

45

Toro 911747

BOLT-4

$5.49

$

In Stock, Qty 9

0

46

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

47

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

48

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

49

Toro 78-1980

QUADRANT R

$

$

Not available

50

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

51

Toro 116790

PLATE-RETAINING R

$

$

Not available

52

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

53

Toro 61-9760

WHEEL-DECK

$50.99

$

In Stock, only 2 left!

0

54

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

55

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

56

Toro 920216

Washer
(Superseded to 9202164)

$3.99

$

Usually ships in 3-6 days

0

57

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

Usually ships in 3-6 days

0

58

Toro 54-0210

BEARING SPACER
(Superseded to 55-7680)

$

$

Not available

59

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0

60

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

61

Toro 79-1050

Housing-Spindle
(Superseded to 79-1050-03)

$267.99

$

Usually ships in 3-6 days

0

62

Toro 302-16

ZERK FITTING

$

$

Not available

63

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

65

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0

66

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$42.99

$

Usually ships in 3-6 days

0

67

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

68

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

69

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

71

Toro 121330

BELT-V

$137.99

$

Usually ships in 3-6 days

0

72

Toro 32121-103

PIN-SPRING

$

$

Not available

73

Toro 120551

WLDMT-HEIGHT ADJ R

$

$

Not available

74

Toro 121061

Deck-Mower
(Superseded to 14-7219)

$

$

Not available

75

Toro 114837

ASM-FRONT LIFT R

$149.99

$

Usually ships in 3-6 days

0

76

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

77

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

78

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

79

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

80

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

81

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$43.99

$

In Stock, only 3 left!

0

82

Toro 933190

PIN-SPIROL

$

$

Not available

83

Toro 47-0092

W.A.-SPINDLE SHAFT

$

$

Not available

84

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

85

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

86

Toro 920237

Washer
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

87

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0
