05-37SC03 - Toro 37" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) DECK ASSEMBLY Parts Diagram

37" Side-Discharge Mower Deck

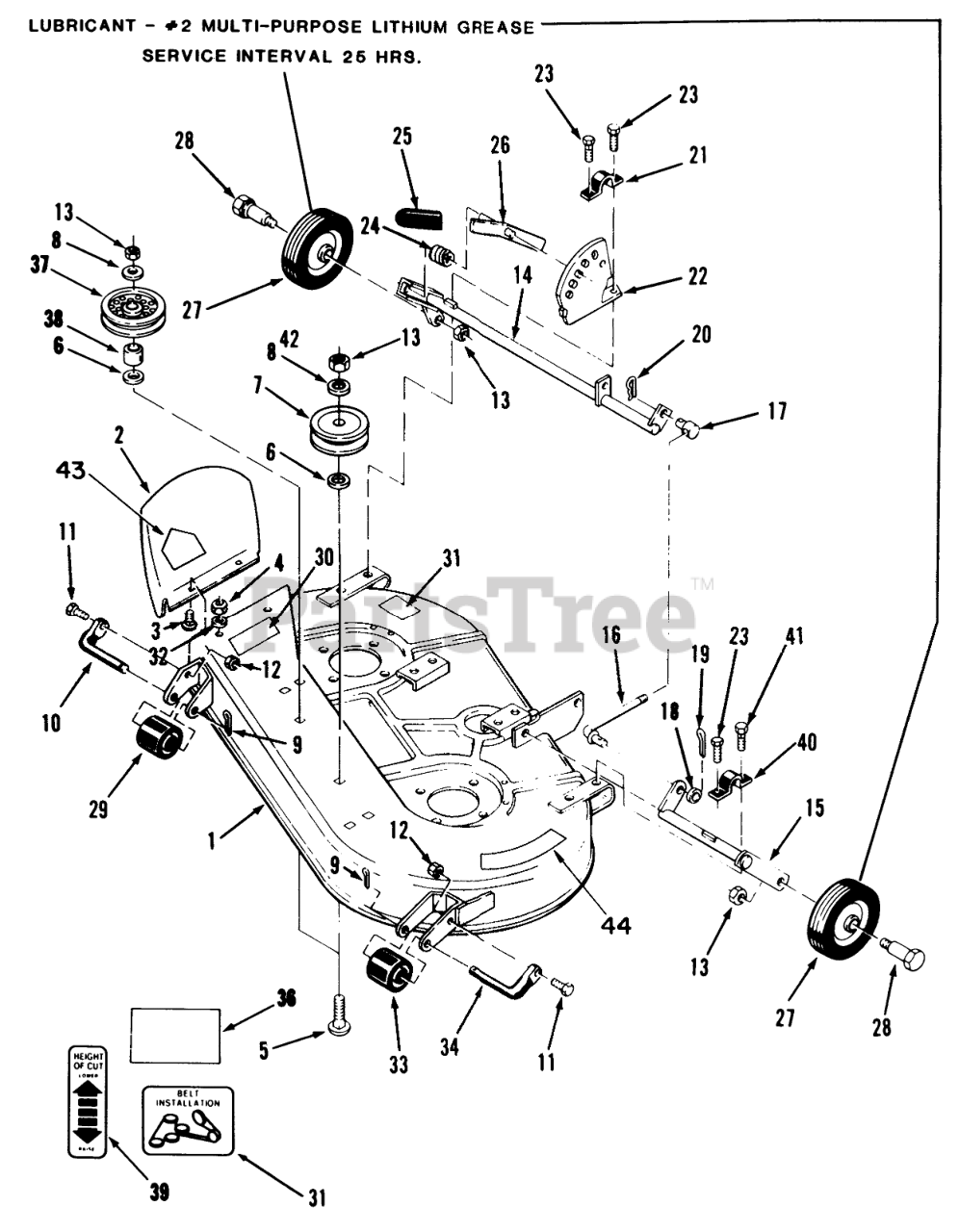

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 111164

Deck-Mower
(Superseded to 92-7289)

$

$

Not available

2

Toro 117148

Chute Extension
(Superseded to 92-7290)

$

$

Not available

3

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

4

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

5

Toro 900067

Bolt
(Superseded to 323-16)

$3.49

$

In Stock, Qty 7

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 112791

PULLEY-IDLER

$80.99

$

In Stock, only 4 left!

0

8

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

9

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

10

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

11

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

12

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

13

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14

Toro 111172

Gage Wheel Support RH
(Superseded to 111172-01)

$

$

Not available

15

Toro 108187

WA GAG WHL R
(Superseded to 108187-01)

$

$

Not available

16

Toro 110844

ROD CONNECTING

$28.99

$

Usually ships in 3-6 days

0

17

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

18

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

19

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

20

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

21

Toro 110841

Camp

$8.99

$

Usually ships in 3-6 days

0

22

Toro 106392

Quadrant
(Superseded to 106392-01)

$32.99

$

In Stock, only 1 left!

0

23

Toro 926716

Bolt
(Superseded to 9267164)

$

$

Not available

24

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

25

Toro 102597

GRIP

$1.99

$

Usually ships in 3-6 days

0

26

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

27

Toro 110506

WHEEL

$37.99

$

Usually ships in 3-6 days

0

28

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 6

0

29

Toro 108798

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 16

0

30

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

31

Toro 111769

DECAL BELT INSTALLAT

$9.99

$

Usually ships in 3-6 days

0

32

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

33

Toro 111173

ROLLER

$27.99

$

In Stock, only 2 left!

0

34

Toro 111174

SHAFT-ROLLER
(Superseded to 111174-03)

$37.99

$

In Stock, only 1 left!

0

36

Toro 112403

DECAL-OVERLAY

$7.49

$

Usually ships in 3-6 days

0

37

Toro 119130

PULLEY-FLAT IDLER B
(Superseded to 119130-03)

$198.99

$

Usually ships in 3-6 days

0

38

Toro 115760

SPACER

$

$

Not available

39

Toro 111655

DECAL-HOC

$3.49

$

Usually ships in 3-6 days

0

40

Toro 112930

CLAMP B

$

$

Not available

41

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

42

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

43

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

44

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0
