05-36XS01 - Toro 36" Side-Discharge Mower Deck (1981) REAR DISCHARGE MOWER-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBER 05-42XR01 Parts Diagram

36" Side-Discharge Mower Deck

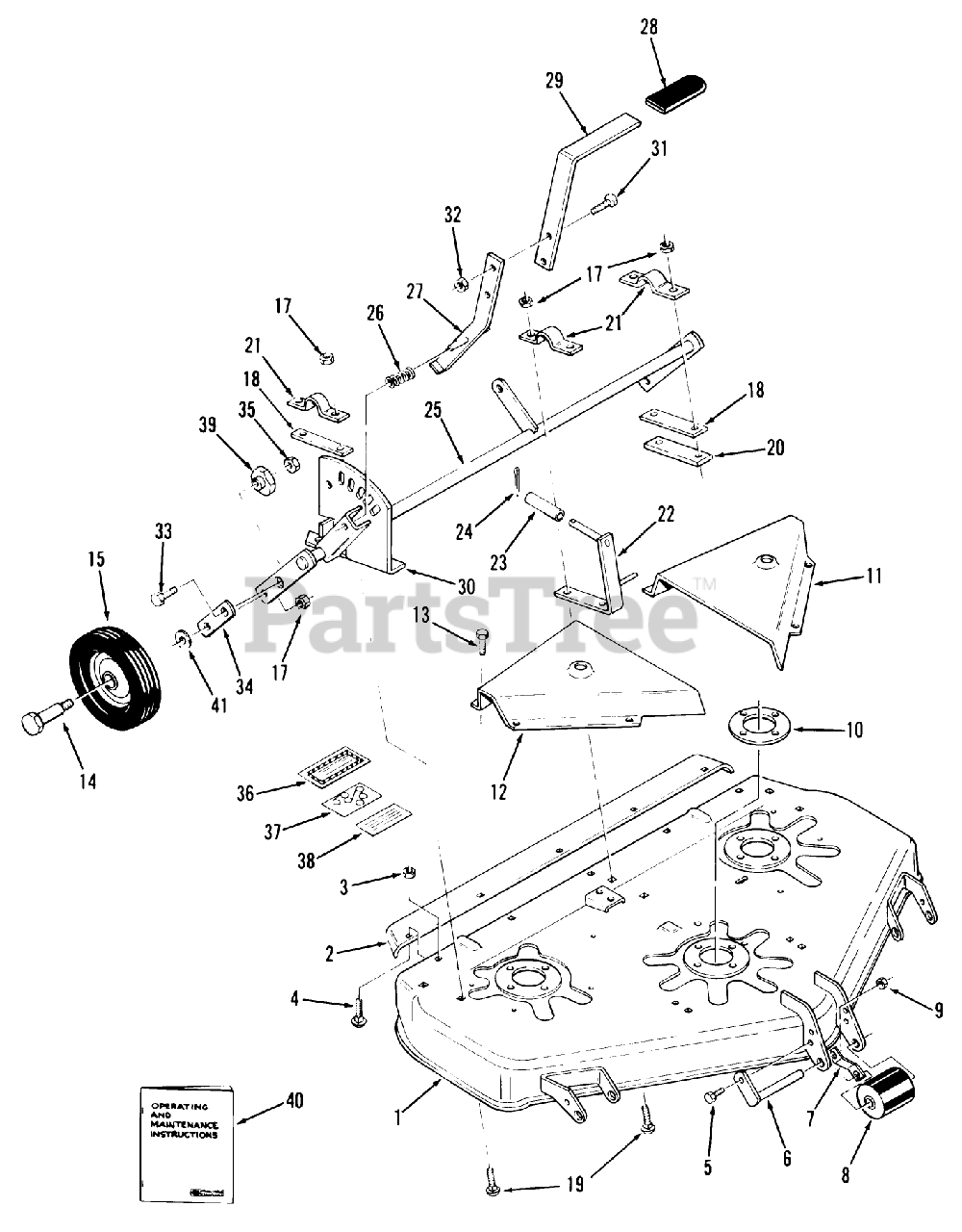

REAR DISCHARGE MOWER-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBER 05-42XR01 Parts Diagram

  • Title
1

Toro 107410

Mower Deck
(Superseded to 111129-01)

$

$

Not available

2

Toro 106789

Rear Chute Extension
(Superseded to 109038)

$

$

Not available

3

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

4

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

5

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

6

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

7

Toro 102773

SPRING ROLLER STOP

$

$

Not available

8

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

9

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

10

Toro 106117

PLATE-SPINDLE

$20.99

$

Usually ships in 3-6 days

0

11

Toro 106638

Belt Cover LH
(Superseded to 106638-01)

$64.99

$

Usually ships in 3-6 days

0

12

Toro 106409

Belt Cover RH
(Superseded to 106409-01)

$64.99

$

Usually ships in 3-6 days

0

13

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

14

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

15

Toro 108522

Wheel 6 x 1.75 (w/5306 Bushings)
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

18

Toro 106468

Strap 1/16
(Superseded to 110842)

$

$

Not available

19

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

20

Toro 106377

Strap
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

21

Toro 106378

CLAMP

$

$

Not available

22

Toro 106372

Bracket Guide

$

$

Not available

23

Toro 106383

SPACER

$

$

Not available

24

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

25

Toro 107431

ASSY-GAGE WHL SUPT

$

$

Not available

26

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

27

Toro 106483

Lever

$

$

Not available

28

$2.49

$

Usually ships in 3-6 days

0

29

Toro 106380

HANDLE-EXTENSION R

$

$

Not available

30

Toro 106392

Quadrant
(Superseded to 106392-01)

$33.99

$

In Stock, only 1 left!

0

31

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

32

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

33

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

34

Toro 106464

Wheel Plate

$

$

Not available

35

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

36

Toro 105206

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

37

Toro 106749

DECAL-HEIGHT BELT

$

$

Not available

38

Toro 106746

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 3 left!

0

39

Toro 101387

STEERING ARM

$

$

Not available

40

Toro 810158R1

Operating and Maintenance Instructions

$

$

Currently unavailable

41

Toro 920211

WASHER

$

$

Not available
