05-36XR02 - Toro 36" Rear-Discharge Mower Deck (1983) SIDE DISCHARGE MOWER-37 IN. (94 CM)(VEHICLE IDENTIFICATION NUMBER 05-37MS02,A5-37MS02) Parts Diagram

36" Rear-Discharge Mower Deck

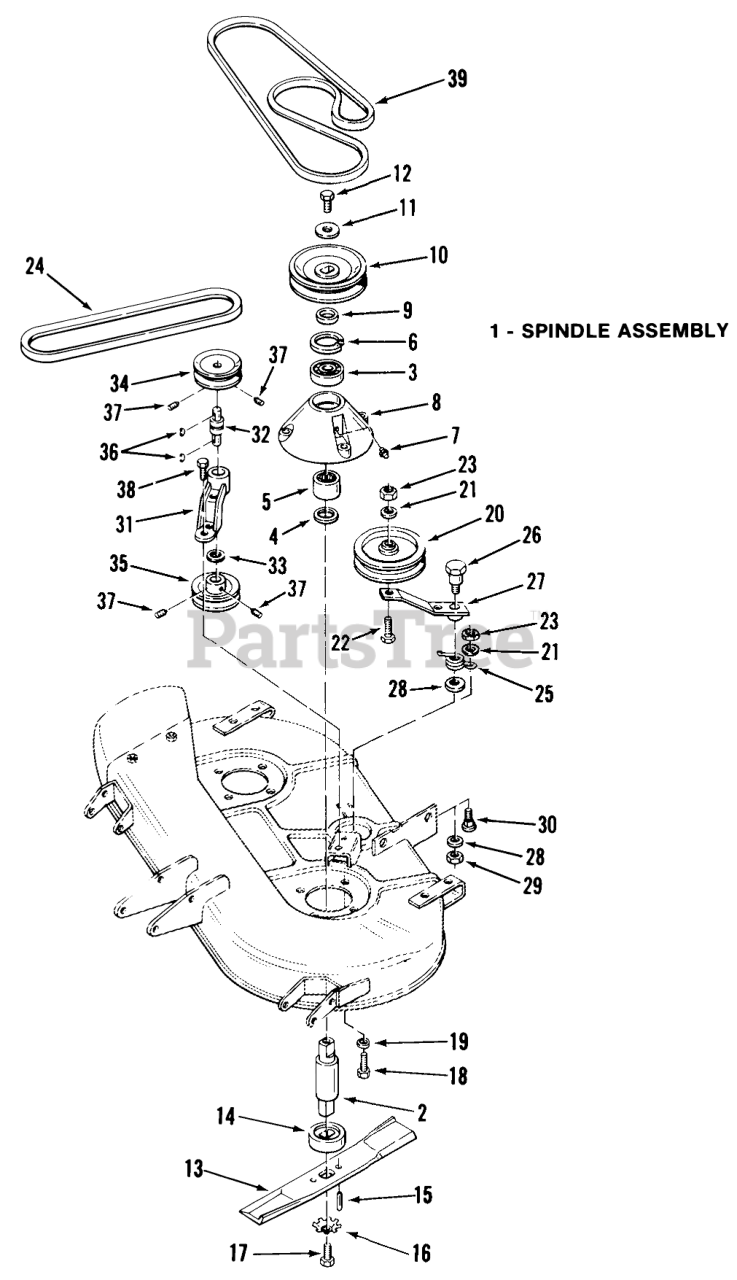

SIDE DISCHARGE MOWER-37 IN. (94 CM)(VEHICLE IDENTIFICATION NUMBER 05-37MS02,A5-37MS02) Parts Diagram

  • Title

1

Toro 107275

Spindle Assembly (includes parts 2, 3, 4, 5, 6, 7&8)

$

$

Not available

2

Toro 103691

SPINDLE MOWER

$

$

Not available

3

Toro 101480

BEARING-BALL

$50.99

$

In Stock, only 1 left!

0

4

Toro 100863

OIL SEAL

$16.99

$

In Stock, only 2 left!

0

5

Toro 1528

BEARING-NEEDLE

$59.99

$

In Stock, only 1 left!

0

6

Toro 936029

INT SNAP RING

$3.49

$

Usually ships in 3-6 days

0

7

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$

$

Not available

8

Toro 8242

HOUSING

$795.99

$

Usually ships in 3-6 days

0

9

Toro 8244

SPACER

$15.99

$

Usually ships in 3-6 days

0

10

Toro 107276

PULLEY-BLADE

$

$

Not available

11

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

12

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

13

Toro 108004

S/A BLADE KIT

$

$

Not available

14

Toro 8248

Spindle Cup

$

$

Not available

15

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

16

Toro 1336

WASHER

$

$

Not available

17

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

18

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

19

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 9

0

20

Toro 106144

Idler Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, Qty 20+

0

21

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

23

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 7

0

24

Toro 110082

V-BELT

$42.99

$

Usually ships in 3-6 days

0

25

Toro 108177

SPRING-TORSION

$19.99

$

Usually ships in 3-6 days

0

26

Toro 108176

BOLT-SHOULDER

$

$

Not available

27

Toro 108782

Idler Arm

$

$

Not available

28

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

29

Toro 109996

NUT-JAM(7/16-14)

$

$

Not available

30

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

31

Toro 104176

HOUSING DRIVE BRG R
(Superseded to 104176-01)

$

$

Not available

32

Toro 106388

BEARING-INT SHAFT

$164.99

$

Usually ships in 3-6 days

0

33

Toro 936021

Snap Ring
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 15

0

34

Toro 108172

PULLEY

$86.99

$

Usually ships in 3-6 days

0

35

Toro 110078

PULLEY LOWER

$

$

Not available

36

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

37

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

38

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

39

Toro 108195

V-BELT

$45.99

$

Usually ships in 3-6 days

0
