05-36XR02 - Toro 36" Rear-Discharge Mower Deck (1983) SIDE DISCHARGE MOWER-37 IN. (94 CM)(VEHICLE IDENTIFICATION NUMBER 05-37MS02,A5-37MS02) Parts Diagram

36" Rear-Discharge Mower Deck

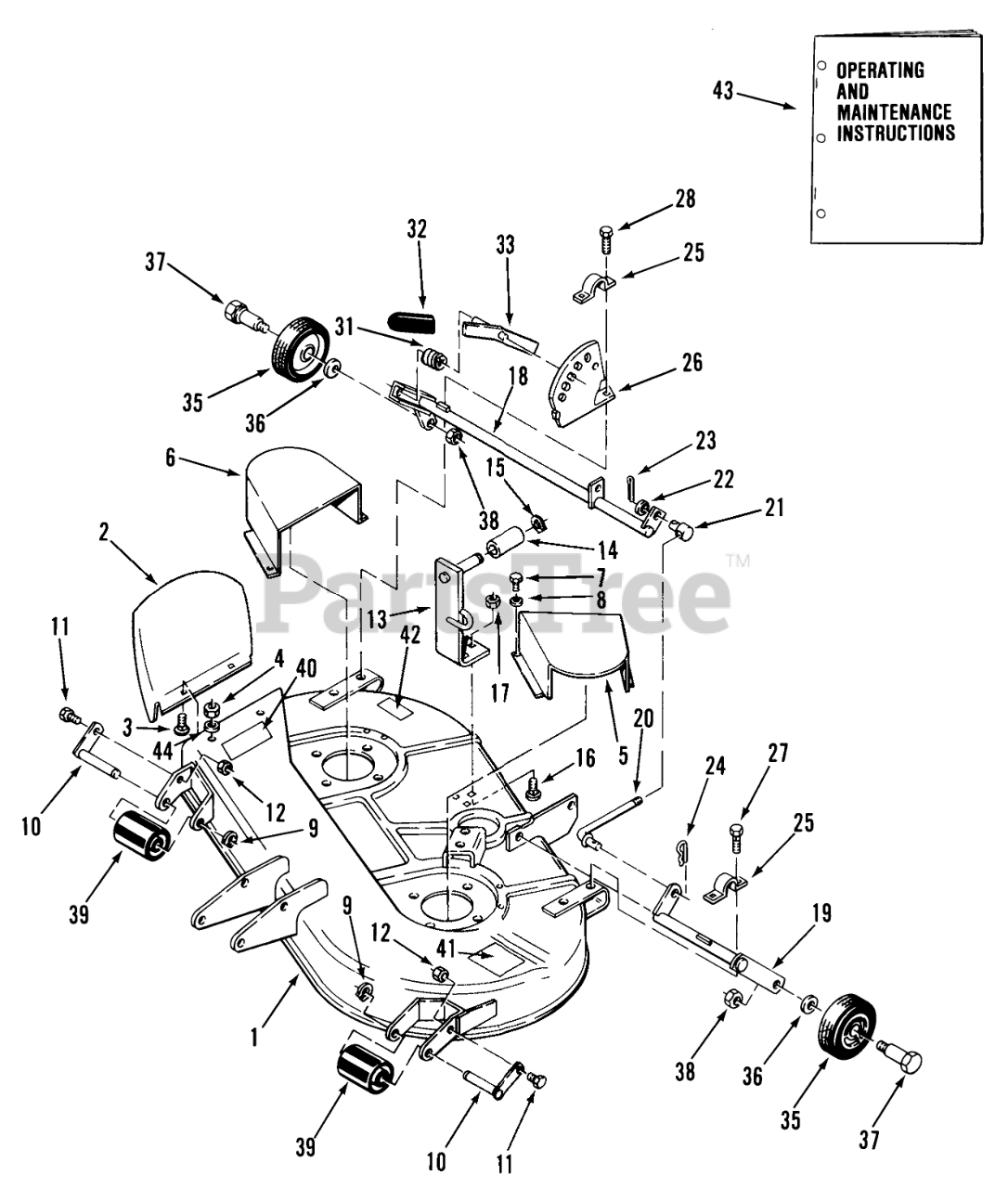

SIDE DISCHARGE MOWER-37 IN. (94 CM)(VEHICLE IDENTIFICATION NUMBER 05-37MS02,A5-37MS02) Parts Diagram

  • Title

1

Toro 110085

Mower Deck
(Superseded to 18-1199)

$

$

Not available

2

Toro 108170

Chute Extension
(Superseded to 92-7290)

$

$

Not available

3

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5

Toro 109999

COVER R

$

$

Not available

6

Toro 109998

COVER R

$281.99

$

Usually ships in 3-6 days

0

7

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

8

Toro 920037

WASHER

$

$

Not available

9

Toro 107825

Retaining Ring
(Superseded to 32151-61)

$2.99

$

In Stock, Qty 20+

0

10

Toro 108799

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

11

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

12

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

13

Toro 109993

BRACKET ASSY R

$

$

Not available

14

Toro 106383

SPACER

$

$

Not available

15

Toro 936117

Snap Ring
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

16

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

18

Toro 108183

Gage Wheel Support RH

$

$

Not available

19

Toro 108187

WA GAG WHL R
(Superseded to 108187-01)

$

$

Not available

20

Toro 108191

Rod
(Superseded to 110844)

$33.99

$

Usually ships in 3-6 days

0

21

Toro 101161

TRUNNION

$

$

Not available

22

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

23

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

24

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

25

Toro 106378

CLAMP

$

$

Not available

26

Toro 106392

Quadrant
(Superseded to 106392-01)

$33.99

$

In Stock, only 1 left!

0

27

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

28

Toro 926716

Bolt
(Superseded to 9267164)

$

$

Not available

31

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

32

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

33

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

35

Toro 109037

Wheel 6 x 1.75
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

36

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

37

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

38

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

39

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

40

Toro 108885

DECAL

$

$

Not available

41

Toro 108883

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

42

Toro 108581

DECAL-BELT&HEIGHT

$

$

Not available

43

Toro 810303R1

Operating and Maintenance Instructions

$

$

Currently unavailable

44

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0
