05-36XR02 - Toro 36" Rear-Discharge Mower Deck (1983) REAR DISCHARGE MOWER-36 IN. (92 CM)(VEHICLE IDENTIFICATION NUMBER 05-36XR02,A5-36XR02) Parts Diagram

36" Rear-Discharge Mower Deck

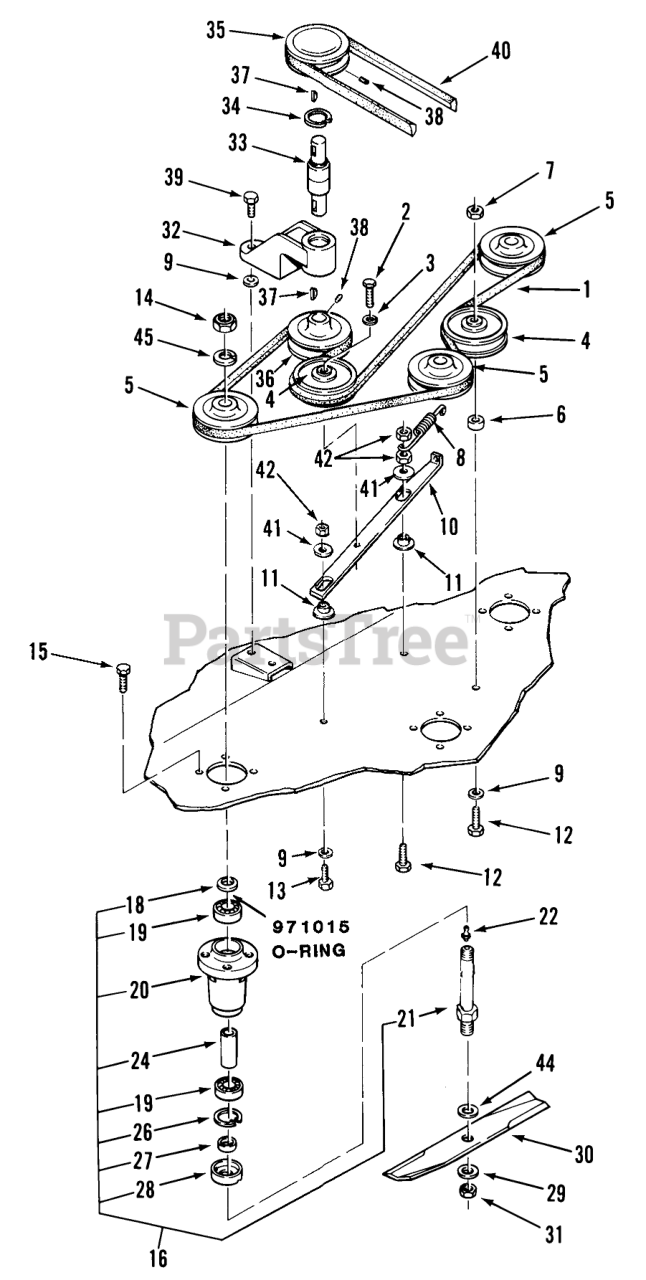

REAR DISCHARGE MOWER-36 IN. (92 CM)(VEHICLE IDENTIFICATION NUMBER 05-36XR02,A5-36XR02) Parts Diagram

  • Title

1

Toro 106751

BELT-V

$46.99

$

Usually ships in 3-6 days

0

2

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

4

Toro 7434

Idler Pulley
(Superseded to 112426)

$27.99

$

In Stock, only 2 left!

0

5

Toro 109967

PULLEY

$85.99

$

In Stock, only 1 left!

0

6

Toro 102704

SPACER

$2.99

$

In Stock, only 2 left!

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, only 3 left!

0

8

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 10

0

9

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

10

Toro 105860

BAR-IDLER SUPPORT

$

$

Not available

11

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 915089

Nut
(Superseded to 3220-6)

$1.49

$

In Stock, Qty 12

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 14

0

16

Toro 109964

ASSY 36" SPINDLE

$

$

Not available

18

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 15

0

19

Toro 109966

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

20

Toro 107448

HOUSING-SPINDLE

$

$

Not available

21

Toro 109965

Spindle Shaft
(Superseded to 112673)

$164.99

$

Usually ships in 3-6 days

0

22

Toro 1030

Zerk

$

$

Not available

24

Toro 110088

Spacer
(Superseded to 116115)

$28.99

$

Usually ships in 3-6 days

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

27

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 12

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$16.99

$

In Stock, Qty 11

0

29

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$7.99

$

In Stock, Qty 10

0

30

Toro 107983

S/A BLADE KIT

$164.99

$

Usually ships in 3-6 days

0

31

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, Qty 20+

0

32

Toro 104176

HOUSING DRIVE BRG R
(Superseded to 104176-01)

$

$

Not available

33

Toro 106388

BEARING-INT SHAFT

$174.99

$

Usually ships in 3-6 days

0

34

Toro 936021

Snap Ring
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 5

0

35

Toro 106524

PULLEY

$

$

Not available

36

Toro 109310

PULLEY-SPLIT

$95.99

$

Usually ships in 3-6 days

0

37

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

38

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

39

Toro 926715

Bolt
(Superseded to 9267154)

$3.99

$

In Stock, Qty 6

0

40

Toro 106533

V-BELT

$36.99

$

Usually ships in 3-6 days

0

41

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

44

Toro 920257

Washer
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

45

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0
