05-36XR01 - Toro 36" Rear-Discharge Mower Deck (1982) REAR AND SIDE DISCHARGE MOWERS-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBERS 05-36XR01 & 05-36XS01 Parts Diagram

36" Rear-Discharge Mower Deck

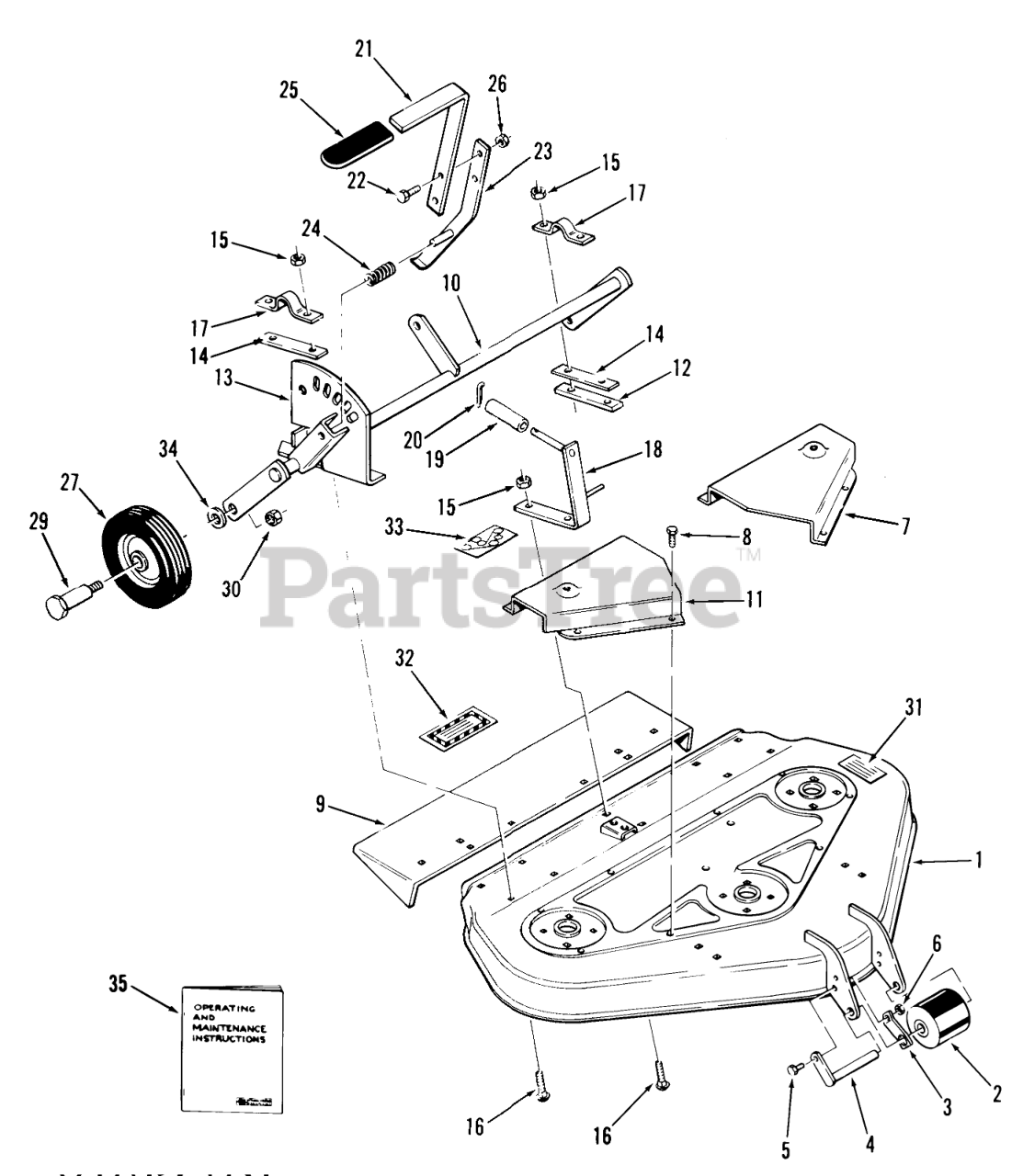

REAR AND SIDE DISCHARGE MOWERS-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBERS 05-36XR01 & 05-36XS01 Parts Diagram

  • Title

1

Toro 107416

ASSY-MOWER DECK 3 R
(Superseded to 107416-01)

$

$

Not available

1

Toro 107418

ASSY-MOWER DECK RH

$1933.99

$

Usually ships in 3-6 days

0

2

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

3

Toro 102773

SPRING ROLLER STOP

$

$

Not available

4

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

5

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

6

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

7

Toro 107449

Cover-Belt
(Superseded to 107449-01)

$

$

Not available

8

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

9

Toro 106480

Chute Extension
(Superseded to 106480-01)

$102.99

$

Usually ships in 3-6 days

0

10

Toro 106403

Gage Wheel Support
(Superseded to 109374)

$328.99

$

Usually ships in 3-6 days

0

11

Toro 107450

Belt Cover RH
(Superseded to 107450-01)

$

$

Not available

12

Toro 106377

Strap
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

13

Toro 106392

Quadrant
(Superseded to 106392-01)

$33.99

$

In Stock, only 1 left!

0

14

Toro 106468

Strap 1/16
(Superseded to 110842)

$

$

Not available

15

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

16

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

17

Toro 106378

CLAMP

$

$

Not available

18

Toro 106476

Bracket Guide Assembly

$

$

Not available

19

Toro 106383

SPACER

$

$

Not available

20

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

21

Toro 106380

HANDLE-EXTENSION R

$

$

Not available

22

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

23

Toro 106483

Lever

$

$

Not available

24

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

25

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

26

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

27

Toro 108522

Wheel 6 x 1.75 (w/5306 Bushings)
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

29

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

30

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

31

Toro 105206

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

32

Toro 108628

Decal, Mower Guard (Rear Discharge Only)
(Superseded to 108885)

$

$

Not available

33

Toro 106749

DECAL-HEIGHT BELT

$

$

Not available

34

Toro 920211

WASHER

$

$

Not available

35

Toro 810158R1

Operating and Maintenance Instructions

$

$

Currently unavailable
