05-36RL01 - Toro 36" Rear-Discharge Mower Deck (1986) SIDE DISCHARGE MOWER-37 IN. (94 CM) (VEHICLE IDENTIFICATION NUMBER 35-37SL01) Parts Diagram

36" Rear-Discharge Mower Deck

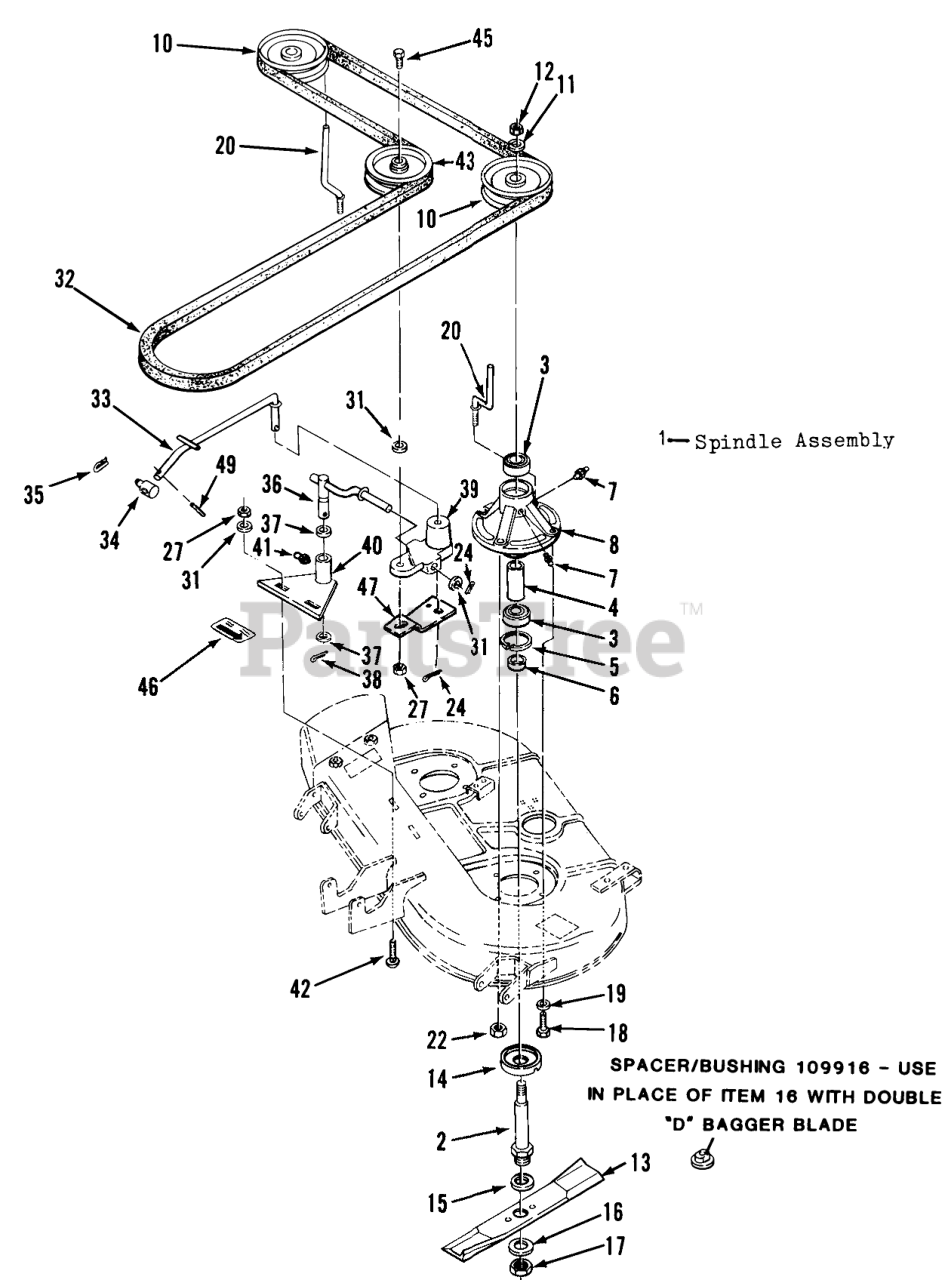

SIDE DISCHARGE MOWER-37 IN. (94 CM) (VEHICLE IDENTIFICATION NUMBER 35-37SL01) Parts Diagram

  • Title

1

Toro 111610

Spindle Assembly, Metric Bearings (includes items 2 thru 8 & 14)

$

$

Not available

2

Toro 111611

SHAFT SPINDLE

$119.99

$

Usually ships in 3-6 days

0

3

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 15

0

4

Toro 110200

TUBE

$

$

Not available

5

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

6

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

7

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$8.49

$

Usually ships in 3-6 days

0

8

Toro 111612

HOUSING SPINDLE

$

$

Not available

10

Toro 113049

PULLEY-BLADE

$

$

Not available

11

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

12

Toro 9150894

Jam Nut
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, only 2 left!

0

13

Toro 109079

ASSY BLADE KIT

$89.99

$

In Stock, only 2 left!

0

14

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

Usually ships in 3-6 days

0

15

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

16

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$6.49

$

In Stock, Qty 6

0

17

Toro 9150904

Nut-Jam
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$4.49

$

In Stock, Qty 5

0

18

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

19

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

20

Toro 112969

ROD-GUIDE

$

$

Not available

22

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

24

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

27

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

31

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

32

Toro 113141

Drive Belt
(Superseded to 121000)

$44.99

$

In Stock, only 2 left!

0

33

Toro 113033

ASS'Y-ROD IDLER B
(Superseded to 113033-03)

$

$

Not available

34

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 6

0

35

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

36

Toro 112877

ARM ASSEMBLY R

$

$

Not available

37

Toro 920232

WASHER
(Superseded to 9202324)

$1.49

$

In Stock, only 3 left!

0

38

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

39

Toro 111560

BLOCK IDLER

$26.99

$

In Stock, only 1 left!

0

40

Toro 111614

IDLER BRACKET ASS R

$102.99

$

Usually ships in 3-6 days

0

41

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

42

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

43

Toro 112976

PULLEY-FLAT IDLER

$87.99

$

In Stock, only 1 left!

0

45

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

46

Toro 112161

DECAL-BELT ADJUST

$

$

Not available

47

Toro 112975

ANCHOR-SPRING B

$

$

Not available

49

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0
