05-36RL01 - Toro 36" Rear-Discharge Mower Deck (1986) REAR DISCHARGE MOWER-36 IN. (92 CM) (VEHICLE IDENTIFICATION NUMBER 35-36RL01) Parts Diagram

36" Rear-Discharge Mower Deck

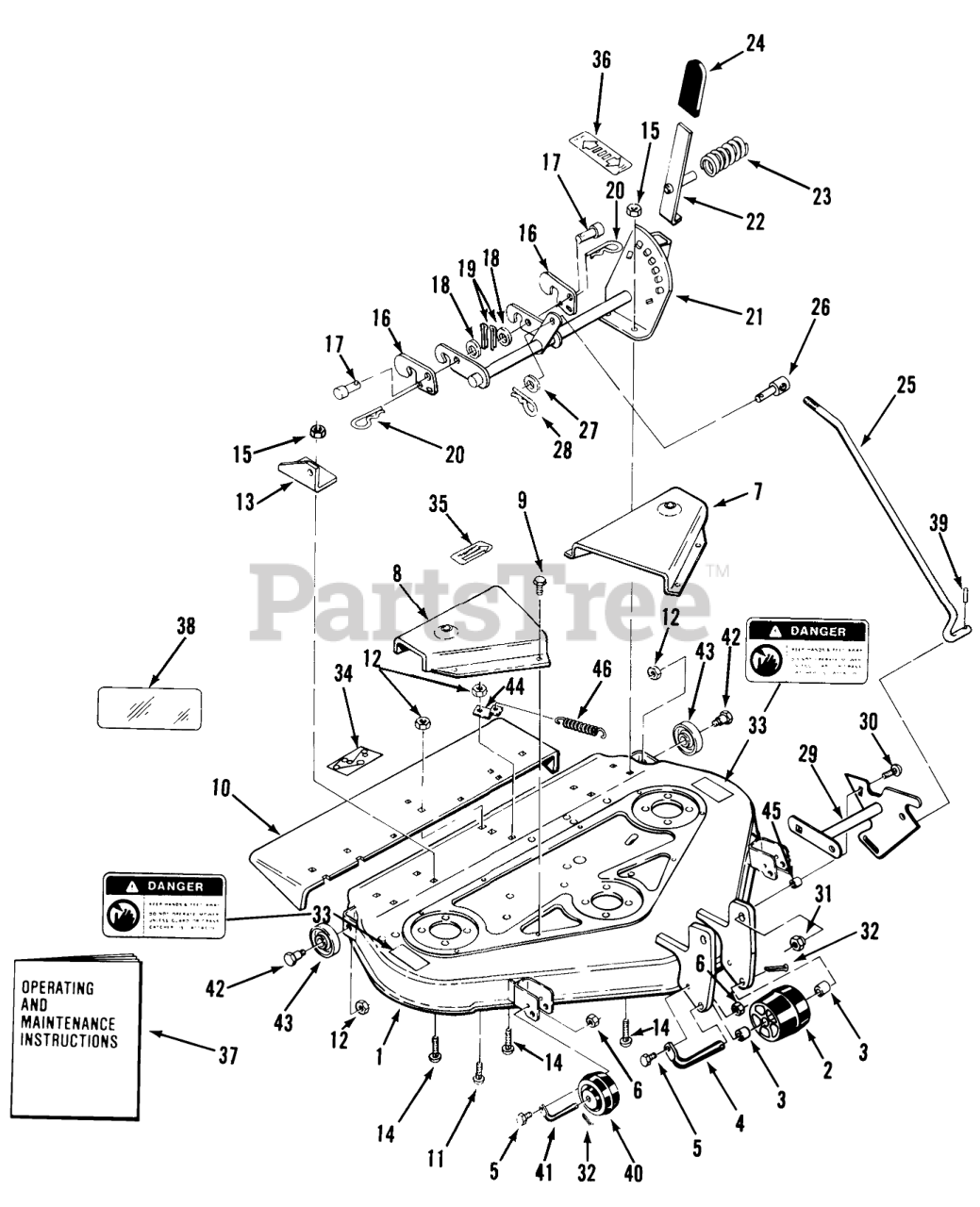

REAR DISCHARGE MOWER-36 IN. (92 CM) (VEHICLE IDENTIFICATION NUMBER 35-36RL01) Parts Diagram

  • Title

1

Toro 112990

ASS'Y-MOWER DECK R
(Superseded to 112990-01)

$

$

Not available

2

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

3

Toro 113046

SPACER-ROLLER B

$

$

Not available

4

Toro 113045

SHAFT-ROLLER (FRONT)

$

$

Not available

5

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

6

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

7

Toro 111597

SHIELD-BELT LH R

$

$

Not available

8

Toro 111596

SHIELD-BELT RH R

$

$

Not available

9

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

10

Toro 106480

Chute Extension
(Superseded to 106480-01)

$102.99

$

Usually ships in 3-6 days

0

11

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

12

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

13

Toro 111598

BRACKET-HT ADJ R

$

$

Not available

14

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

15

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

16

Toro 111569

Latch
(Superseded to 120610-03)

$

$

Not available

17

Toro 932960

PIN

$

$

Not available

18

Toro 920237

Washer
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

20

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

21

Toro 112972

ASS'Y-HEIGHT ADJ R

$

$

Not available

22

Toro 110418

LEVER ASSY

$130.99

$

Usually ships in 3-6 days

0

23

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

24

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

25

Toro 113083

ASS'Y-HEIGHT ADJ R

$

$

Not available

26

Toro 7736

STUD-TRUNION

$

$

Not available

27

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

28

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

29

Toro 113015

Lift Arm
(Superseded to 114837)

$149.99

$

Usually ships in 3-6 days

0

30

Toro 900234

Bolt-Carriage
(Superseded to 3231-22)

$3.49

$

In Stock, Qty 20+

0

31

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

32

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

33

Toro 111188

Danger Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

34

Toro 111665

DECAL-BELT INSTALLAT

$

$

Not available

35

Toro 112161

DECAL-BELT ADJUST

$

$

Not available

36

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

37

Toro 810481R1

Operating and Maintenance Instructions

$

$

Currently unavailable

38

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

39

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

40

Toro 111173

ROLLER

$32.99

$

In Stock, only 2 left!

0

41

Toro 111174

SHAFT-ROLLER
(Superseded to 111174-03)

$43.99

$

In Stock, only 1 left!

0

42

Toro 113165

BOLT-SHOULDER

$25.99

$

In Stock, only 1 left!

0

43

Toro 112962

WHEEL-GAGE

$

$

Not available

44

Toro 112883

ANCHOR-SPRING R

$

$

Not available

45

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

46

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0
