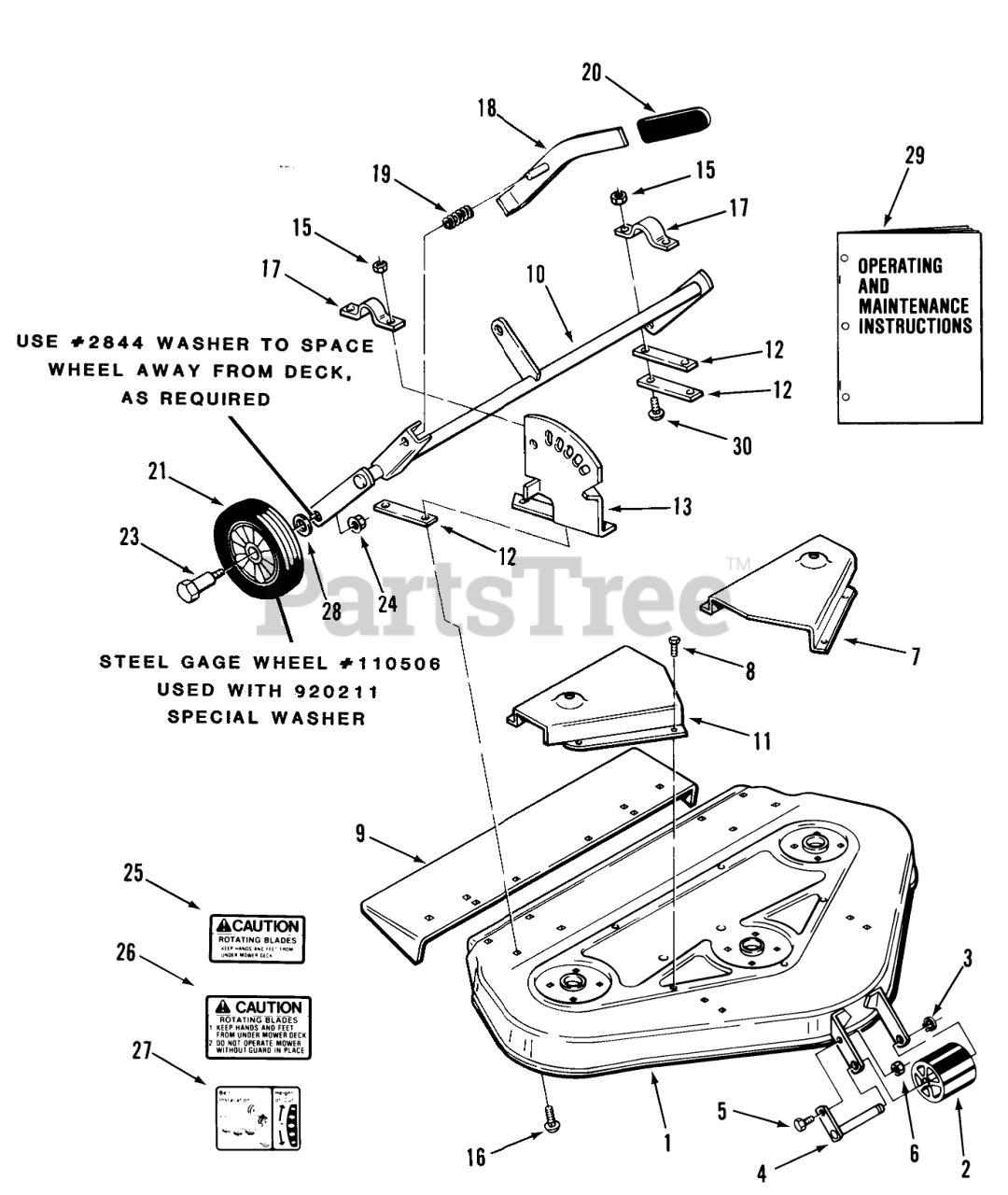

05-36MR02 - Toro 36" Rear-Discharge Mower Deck (1983) REAR AND SIDE DISCHARGE MOWERS-36 IN.(92 CM) VEHICLE IDENTIFICATION NUMBERS 05-36MR02,05-36MS02 Parts Diagram

36" Rear-Discharge Mower Deck

REAR AND SIDE DISCHARGE MOWERS-36 IN.(92 CM) VEHICLE IDENTIFICATION NUMBERS 05-36MR02,05-36MS02 Parts Diagram

  • Title

1

Toro 107419

Mower Deck
(Superseded to 92-5785)

$1140.99

$

Usually ships in 3-6 days

0

Toro 107420

ASSY-MOWER DECK 3 R

$

$

Not available

2

Toro 108798

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 16

0

3

Toro 107825

Retaining Ring
(Superseded to 32151-61)

$2.99

$

In Stock, Qty 20+

0

4

Toro 108799

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, only 3 left!

0

5

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

6

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

7

Toro 107449

Cover-Belt
(Superseded to 107449-01)

$89.99

$

Usually ships in 3-6 days

0

8

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

9

Toro 106480

Chute Extension
(Superseded to 106480-01)

$

$

Not available

10

Toro 107961

Gage Wheel Support
(Superseded to 107961-01)

$

$

Not available

11

Toro 107450

Belt Cover RH
(Superseded to 107450-01)

$

$

Not available

12

Toro 106377

Strap
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

13

Toro 106392

Quadrant
(Superseded to 106392-01)

$32.99

$

In Stock, only 1 left!

0

15

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

16

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

17

Toro 106378

CLAMP

$

$

Not available

18

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

19

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

20

Toro 102597

GRIP

$1.99

$

Usually ships in 3-6 days

0

21

Toro 109037

Wheel 6 x 1.75
(Superseded to 110506)

$37.99

$

Usually ships in 3-6 days

0

23

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 6

0

24

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

25

Toro 108883

Caution Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

26

Toro 108884

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 1 left!

0

27

Toro 106748

DECAL-HEIGHT & BELT

$10.99

$

In Stock, only 1 left!

0

28

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

29

Toro 810306R1

Operating and Maintenance Instructions

$

$

Currently unavailable

30

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0
