05-32XS02 - Toro 32" Side-Discharge Mower Deck (1981) SIDE DISCHARGE MOWERS-32 IN. (81 CM) VEHICLE IDENTIFICATION NUMBERS 05-32MS01,05-32XS01,05 Parts Diagram

32" Side-Discharge Mower Deck

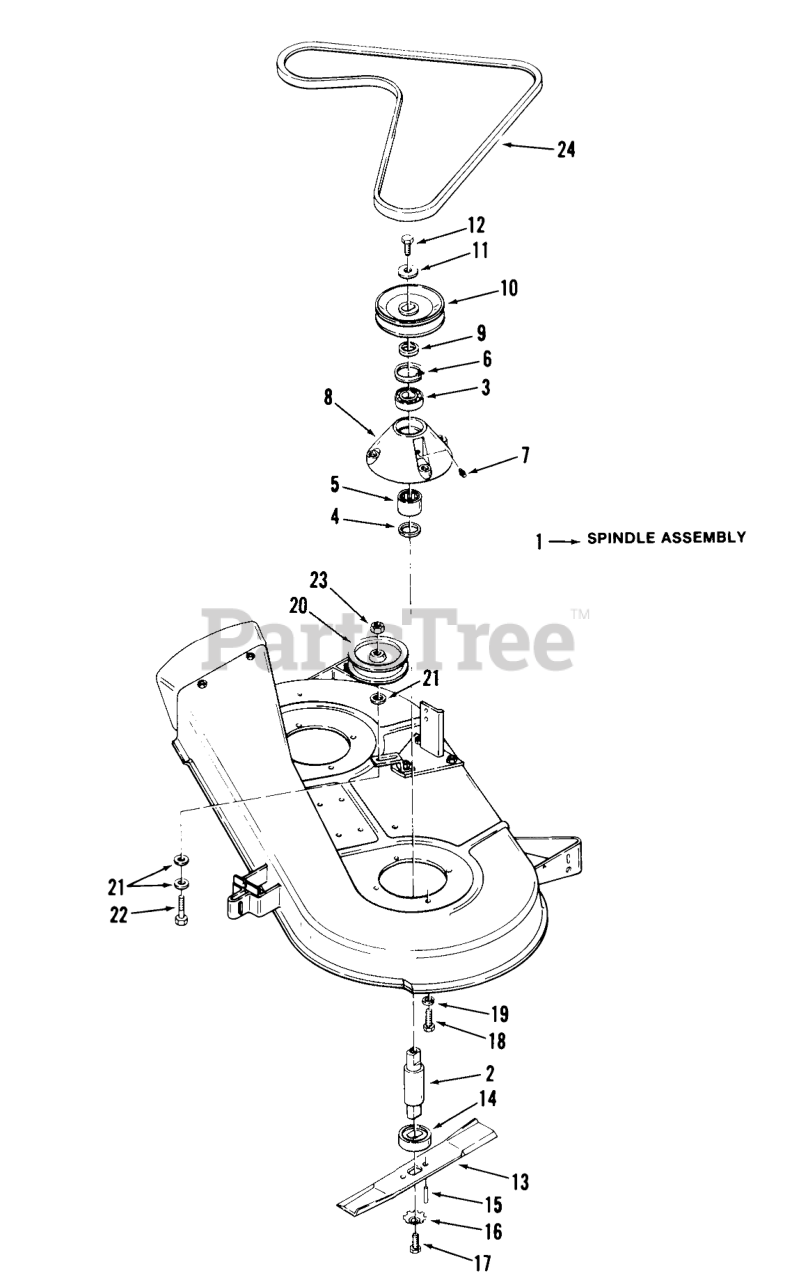

SIDE DISCHARGE MOWERS-32 IN. (81 CM) VEHICLE IDENTIFICATION NUMBERS 05-32MS01,05-32XS01,05 Parts Diagram

  • Title

1

Toro 107275

Spindle Assembly (includes parts 2,3,4,5,6,7,& 8)

$

$

Not available

2

Toro 103691

SPINDLE MOWER

$

$

Not available

3

Toro 101480

BEARING-BALL

$49.99

$

In Stock, only 1 left!

0

4

Toro 100863

OIL SEAL

$14.99

$

In Stock, only 4 left!

0

5

Toro 1528

BEARING-NEEDLE

$51.99

$

In Stock, only 1 left!

0

6

Toro 936029

INT SNAP RING

$2.99

$

Usually ships in 3-6 days

0

7

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$8.49

$

Usually ships in 3-6 days

0

8

Toro 8242

HOUSING

$795.99

$

Usually ships in 3-6 days

0

9

Toro 8244

SPACER

$13.99

$

Usually ships in 3-6 days

0

10

Toro 107276

PULLEY-BLADE

$

$

Not available

10

Toro 107643

PULLEY-BLADE

$

$

Not available

11

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

12

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

13

Toro 106163

S/A BLADE KIT

$213.99

$

Usually ships in 3-6 days

0

13

Toro 108040

S/A BLADE KIT

$163.99

$

Usually ships in 3-6 days

0

14

Toro 8248

Spindle Cup

$

$

Not available

15

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

16

Toro 1336

WASHER

$

$

Not available

17

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

18

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

19

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

20

Toro 6719

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 1 left!

0

21

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

23

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

24

Toro 108491

V-BELT

$

$

Not available

24

Toro 108503

V-BELT

Note: Not Supplied as Part of Mower Package; Original Belt Factory Installed on Rider PTO

$40.99

$

Usually ships in 3-6 days

0
