05-32ES01 - Toro 32" Side-Discharge Electric Mower Deck (1981) REAR DISCHARGE MOWER-42 IN. (107 CM)-BATTERY POWERED VEHICLE IDENTIFICATION NUMBER 05-42ER01 Parts Diagram

32" Side-Discharge Electric Mower Deck

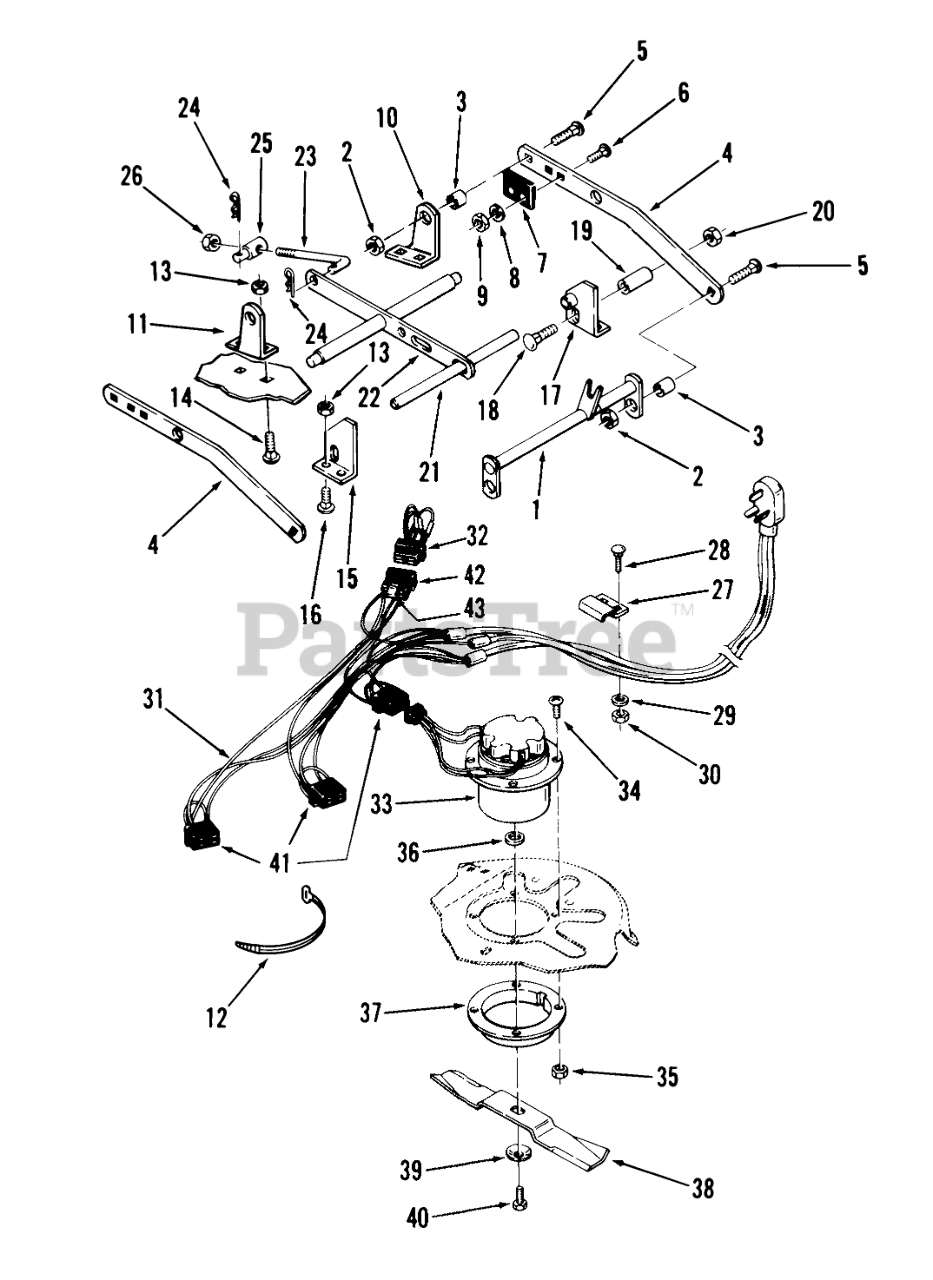

REAR DISCHARGE MOWER-42 IN. (107 CM)-BATTERY POWERED VEHICLE IDENTIFICATION NUMBER 05-42ER01 Parts Diagram

  • Title
1

Toro 101758

Hitch
(Superseded to 101758-01)

$131.99

$

In Stock, only 1 left!

0

2

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

3

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

4

Toro 101777

Bar Draft
(Superseded to 101777-01)

$100.99

$

Usually ships in 3-6 days

0

5

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

6

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 5

0

7

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

8

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

9

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

10

Toro 107511

LH Rear Bracket
(Superseded to 107511-01)

$46.99

$

Usually ships in 3-6 days

0

11

Toro 107512

Rear Bracket RH
(Superseded to 107512-01)

$46.99

$

Usually ships in 3-6 days

0

12

Toro 518017

Cable Tie

$

$

Not available

13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

14

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

15

Toro 102566

Front Bracket RH
(Superseded to 102566-01)

$61.99

$

Usually ships in 3-6 days

0

16

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

17

Toro 102567

Front Bracket LH
(Superseded to 102567-01)

$61.99

$

Usually ships in 3-6 days

0

18

Toro 900093

CARRIAGE BOLT -4

$1.49

$

In Stock, only 3 left!

0

19

Toro 6595

SPACER-BEARING

$

$

Not available

20

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

21

Toro 102570

Front Shaft
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

22

Toro 102958

Leveler
(Superseded to 110268-01)

$128.99

$

Usually ships in 3-6 days

0

23

Toro 101828

ROD-LEVEL ADJUST

$28.99

$

In Stock, only 1 left!

0

24

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

25

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

26

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

27

Toro 107141

Cable Clamp

$

$

Not available

28

Toro 900013

Bolt-Hex

$

$

Not available

29

Toro 920037

WASHER

$

$

Not available

30

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

31

Toro 107137

Wiring Harness

$

$

Not available

32

Toro 107138

Resistor Module

$

$

Not available

33

Toro 107133

Mower Motor

$

$

Not available

34

Toro 910865

Screw
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

35

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

36

Toro 107135

Neoprene Washer

$

$

Not available

37

Toro 107134

Flange

$

$

Not available

38

Toro 106162

Blade Kit-Set of 3

$

$

Not available

39

Toro 107130

Spring Washer

$

$

Not available

40

Toro 908046

H H C S
(Superseded to 324-4)

$3.99

$

Usually ships in 3-6 days

0

41

Toro 107625

4-CONTACT CONNECTOR

$

$

Not available

42

Toro 107480

Connector Body

$

$

Not available

43

Toro 107630

Clip Resistor Plug

$

$

Not available
