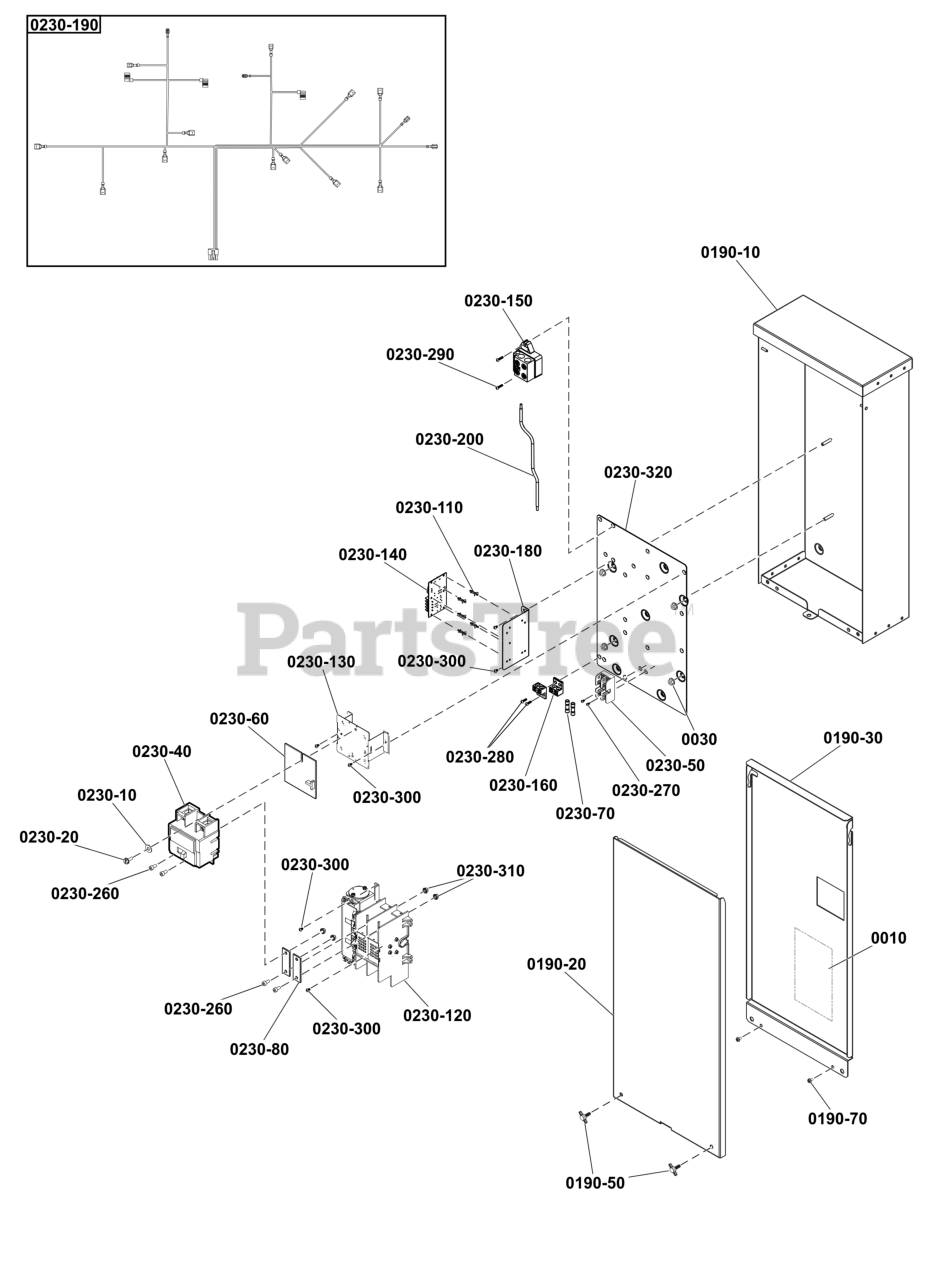

040743-00 - Briggs & Stratton 13kW Home Standby Generator with 200 Amp ATS Transfer Switch - Hingeless Enclosure Parts Diagram

13kW Home Standby Generator with 200 Amp ATS

Transfer Switch - Hingeless Enclosure Parts Diagram

  • Title

0010

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 703061

NUT, HEX KEPS, 1/4-20

$3.49

$

In Stock, Qty 13

0

0190-10

ENCLOSURE

$

$

Not available

0190-20

Briggs & Stratton 84004672

DOOR

Note: (Incl. Ref. No. 0060)

$

$

Currently unavailable

0060

DECAL SHEET - WARNINGS

$

$

Not available

0190-30

Briggs & Stratton 84005082

PANEL, Deadfront

Note: (Incl. Ref. Nos. 0010, 0060)

$145.99

$

Usually ships in 2-12 days

0

0010

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0060

DECAL SHEET - WARNINGS

$

$

Not available

0190-50

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0190-70

Briggs & Stratton B5763GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0230-10

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5

$2.99

$

Usually ships in 2-12 days

0

0230-20

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0230-40

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$207.99

$

Usually ships in 2-12 days

0

0230-50

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0230-60

Briggs & Stratton 192879GS

INSULATION, Circuit Breaker

$8.49

$

Usually ships in 2-12 days

0

0230-70

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0230-80

Briggs & Stratton 319267GS

BAR-BUS

$16.99

$

Usually ships in 2-12 days

0

0230-110

Briggs & Stratton 707397

SPACER

$9.99

$

Usually ships in 2-12 days

0

0230-120

Briggs & Stratton 84002607

SWITCH, TRANSFER

$1062.99

$

Usually ships in 2-12 days

0

0230-130

Briggs & Stratton 770433

BRACKET

$25.99

$

Usually ships in 2-12 days

0

0230-140

Briggs & Stratton 770434

BOARD, Circuit

$87.99

$

Usually ships in 2-12 days

0

0230-150

Briggs & Stratton 84006993

TERMINAL, Neutral 6 Position

$60.99

$

Usually ships in 2-12 days

0

0230-160

Briggs & Stratton 84004498

LUG

$8.49

$

Usually ships in 2-12 days

0

0230-180

84008547

BRACKET

Note: (Incl. Ref. No. 0230-110)

$

$

Not available

0230-190

84008546

HARNESS, Wire

$

$

Not available

0230-200

WIRE, Neutral

$

$

Not available

0230-260

Briggs & Stratton 703818

CAPSCREW, 1/4-20X0.5

$3.49

$

In Stock, only 1 left!

0

0230-270

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0230-280

Briggs & Stratton 32713GS

TAPTITE, #10-32 X 5/8

$3.49

$

Usually ships in 2-12 days

0

0230-290

SCREW, Hex Head, Trilobular, #10-32 x 7/8

$

$

Not available

0230-300

Briggs & Stratton 194561GS

HHS, Trilobular, #10-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

0230-310

Briggs & Stratton 703061

NUT, HEX KEPS, 1/4-20

$3.49

$

In Stock, Qty 13

0

0230-320

PANEL, Back

$

$

Not available
