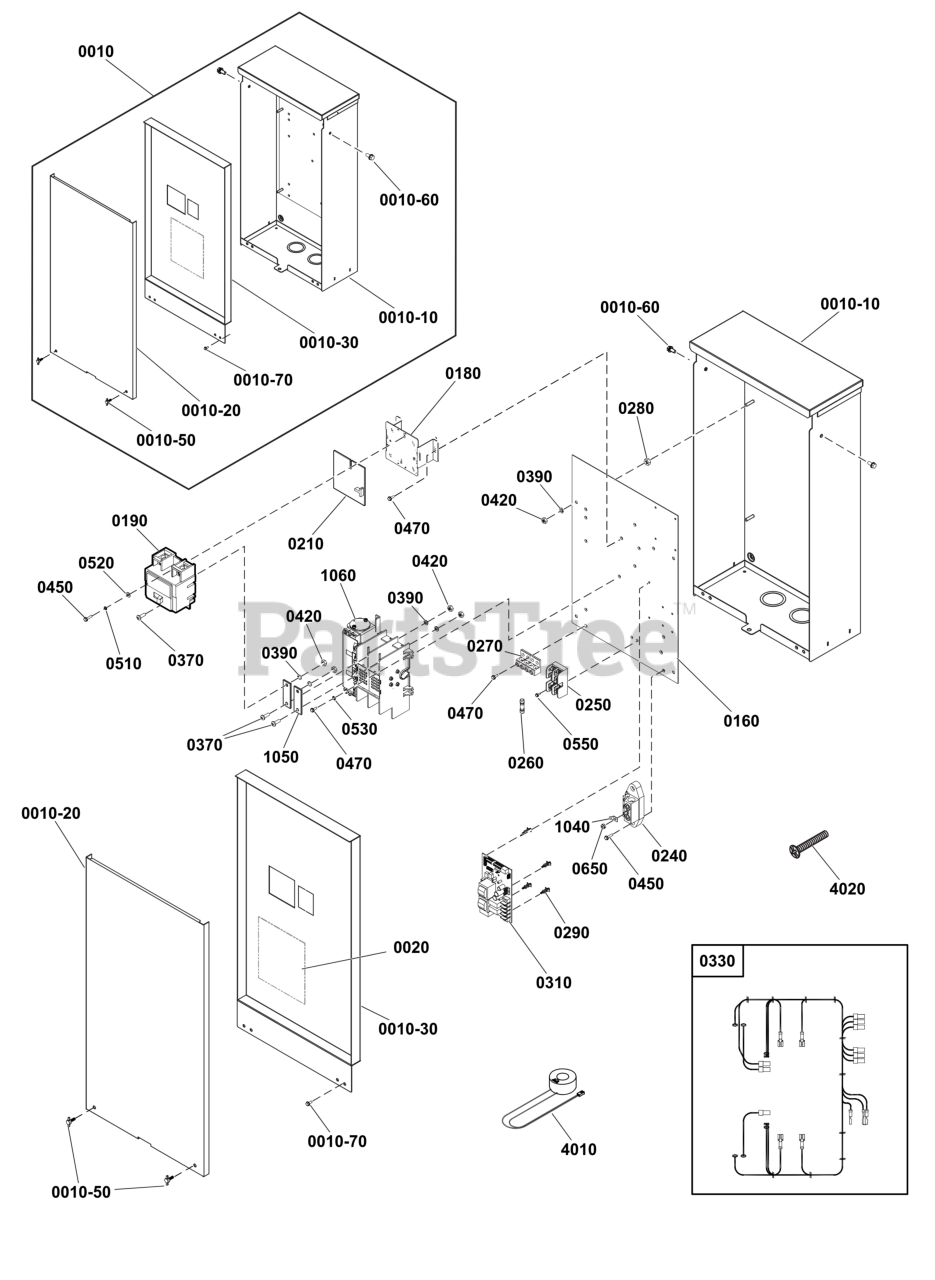

040699-00 - Briggs & Stratton 18kW Home Standby Generator with 200 Amp ATS Transfer Switch - Hingeless Enclosure Parts Diagram

18kW Home Standby Generator with 200 Amp ATS

Transfer Switch - Hingeless Enclosure Parts Diagram

  • Title

0010

ASSEMBLY, Enclosure

$

$

Not available

0010-10

ENCLOSURE

$

$

Not available

0010-20

Briggs & Stratton 770438

DOOR

Note: (Includes Decals)

$

$

Currently unavailable

0010-30

PANEL, Deadfront

$

$

Not available

0010-50

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0010-60

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0010-70

Briggs & Stratton B5763GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0160

PANEL, Back

$

$

Not available

0180

Briggs & Stratton 770433

BRACKET

$25.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$207.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 192879GS

INSULATION, Circuit Breaker

$8.49

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 192696GS

TERMINAL, Neutral

Note: (Incl. Ref. Nos. 0450, 4020)

$31.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 84004498

LUG

$8.49

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 22241GS

NUT, Hex, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2"

$5.49

$

Usually ships in 2-12 days

0

0310

Briggs & Stratton 771701

BOARD-CONTROL

$394.99

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 201285GS

HARNESS, Wiring, ATS

$

$

Not available

0370

SCREW, Phillips Head, 1/4-20 x 3/4

Note: (*See footnote)

$

$

Not available

0390

Briggs & Stratton 22097GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0420

Briggs & Stratton 703061

NUT - HEX KEPS

$3.49

$

In Stock, Qty 11

0

0450

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0470

Briggs & Stratton 200020GS

SCREW, Trilobular, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0510

Briggs & Stratton 22152GS

WASHER, Lock, #10

$2.99

$

Usually ships in 2-12 days

0

0520

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5

$2.99

$

Usually ships in 2-12 days

0

0530

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

0550

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0650

NUT, Nylock #10-32

Note: (*See footnote)

$

$

Not available

1040

Briggs & Stratton 74138GS

ADAPTER, Male Disconnect

$17.99

$

Usually ships in 2-12 days

0

1050

Briggs & Stratton 319267GS

BAR-BUS

$16.99

$

Usually ships in 2-12 days

0

1060

Briggs & Stratton 84002607

ASSEMBLY, CONTACTOR W/ BUSBAR

$1062.99

$

Usually ships in 2-12 days

0

4010

Briggs & Stratton 208106GS

KIT, CURRENT TRANSFOR

$32.99

$

Usually ships in 2-12 days

0

4020

Briggs & Stratton 84007447

SCREW, Bonding, 1/4-20 X 1 3/4"

$2.49

$

Usually ships in 2-12 days

0
