040688-00 - Briggs & Stratton 10kW Home Standby Generator with 200 Amp ATS Power Group Parts Diagram

10kW Home Standby Generator with 200 Amp ATS

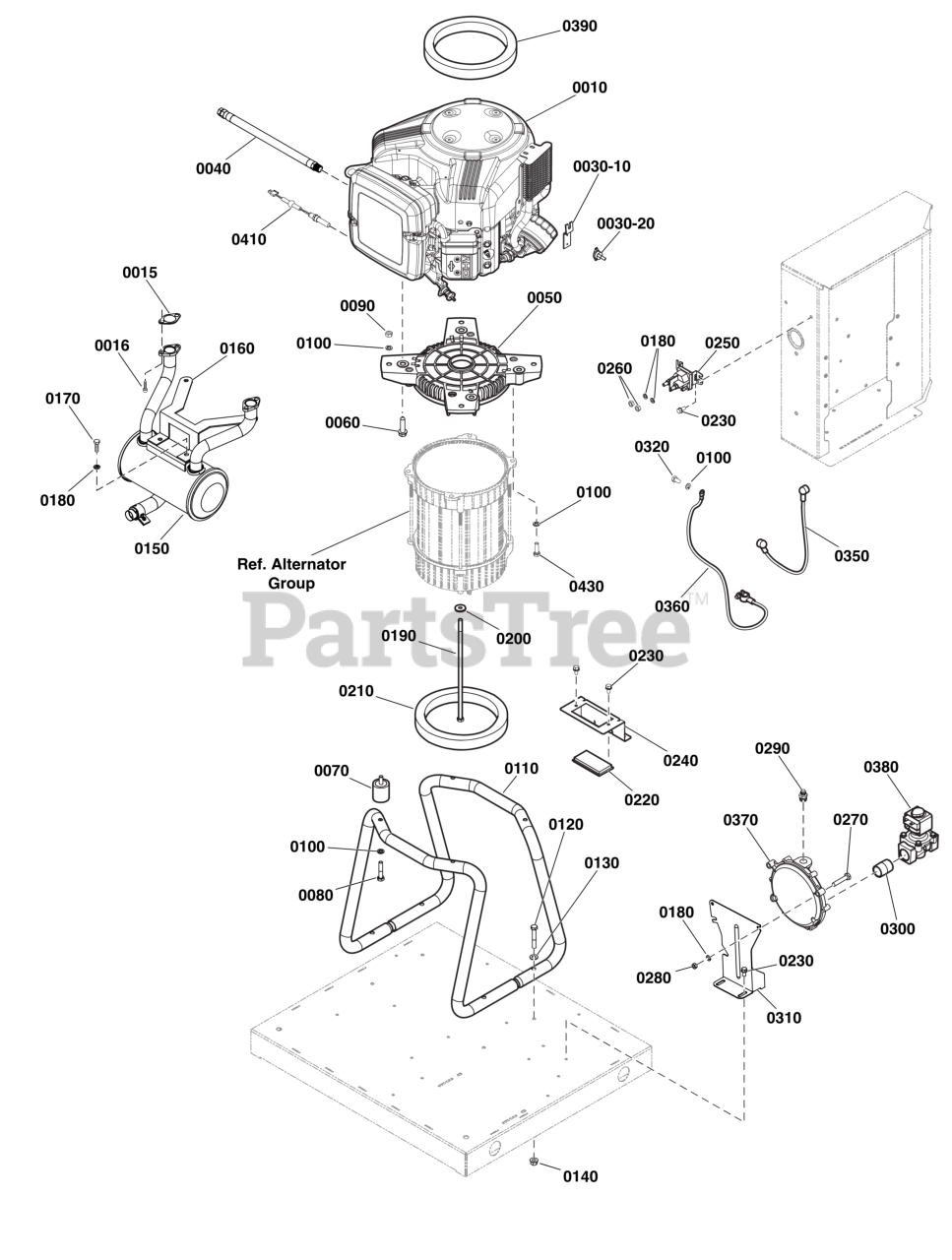

Power Group Parts Diagram

  • Title

0010

Briggs & Stratton 3597750005E1

Replacement Engine

Note: (**See footnote)

$

$

Currently unavailable

0015

Briggs & Stratton 691613

GASKET, Exhaust

$5.49

$

Usually ships in 2-12 days

0

0016

Briggs & Stratton 691902

SCREW

$3.49

$

In Stock, only 4 left!

0

0030-10

Briggs & Stratton 195124GS

PLATE, Temp Switch

$21.99

$

Usually ships in 2-12 days

0

0030-20

Briggs & Stratton 195130GS

SWITCH

$37.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 5048681SM

HOSE-OIL

$18.99

$

In Stock, only 1 left!

0

0050

Briggs & Stratton 196727GS

ADAPTER-ENGINE

$56.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 704010

SCREW-HEX WSHR HD TAP

$4.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 189109GS

MOUNT-VIBRATION

$7.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 39414GS

HHCS, M8 - 1.25 x 35

$2.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

0100

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

0110

Briggs & Stratton B316829GS

CRADLE

$225.99

$

Usually ships in 2-12 days

0

0120

SCREW, 5/16-18 X 2

Note: (*See footnote)

$

$

Not available

0130

Briggs & Stratton 22145GS

WASHER, Flat, 5/16 - M8

$2.99

$

In Stock, only 1 left!

0

0140

Briggs & Stratton 189160GS

NUT, 5/16 - 18, Flange Serrated

$2.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 316851GS

MUFFLER

$323.99

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton 200857GS

BRACKET-MUFFLER

$37.99

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 43116GS

HHCS, M6 - 1.0 x 12

$3.49

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 22097GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 187365EGS

CAPSCREW, Hex Head, 5/16-24 x 10-7/8

$22.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 96796GS

WASHER, Flat M8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 193061GS

SEAL

$18.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 196070GS

REGULATOR-VOLTAGE

$47.99

$

In Stock, Qty 7

0

0230

Briggs & Stratton 704130

HWST, 1/4C X1/2 BZ

$3.99

$

In Stock, Qty 7

0

0240

Briggs & Stratton 316854GS

BRACKET

$14.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

0260

Briggs & Stratton 22127GS

NUT, Hex, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 38750GS

HHCS, M6 - 1.0 x 30

$2.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 49813GS

NUT, Hex, M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 202382GS

FITTING

$9.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 206976GS

FITTING

$10.99

$

Usually ships in 2-12 days

0

0310

Briggs & Stratton 706379

BRACKET

$19.99

$

Usually ships in 2-12 days

0

0320

SCREW, M8-1.25 X 12

Note: (*See footnote)

$

$

Not available

0350

Briggs & Stratton 316814GS

WIRE, Starter Solenoid

$82.99

$

Usually ships in 2-12 days

0

0360

Briggs & Stratton 316817GS

WIRE, Battery, Negative

$104.99

$

Usually ships in 2-12 days

0

0370

Briggs & Stratton 316866GS

REGULATOR-FUEL

$289.99

$

Usually ships in 2-12 days

0

0380

Briggs & Stratton 318880GS

SOLENOID-FUEL

$365.99

$

Usually ships in 2-12 days

0

0390

Briggs & Stratton 316881GS

SEAL

$51.99

$

Usually ships in 2-12 days

0

0410

Briggs & Stratton 771985

WARMER-OIL

$152.99

$

Usually ships in 2-12 days

0

0430

Briggs & Stratton 22125GS

SCREW

$1.49

$

Usually ships in 2-12 days

0
