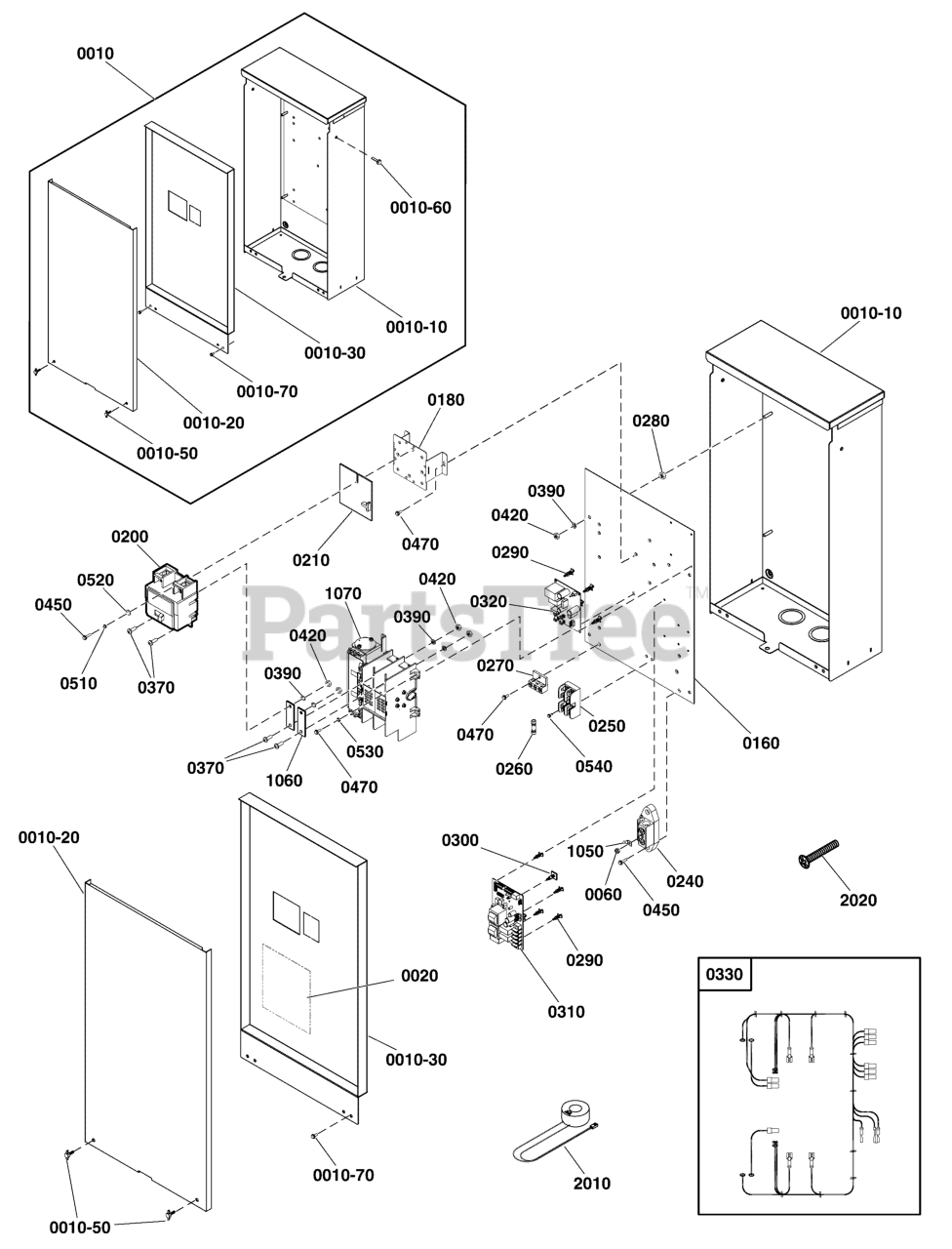

040635-00 - Briggs & Stratton 17kW Home Standby Generator with 150 Amp ATS Transfer Switch - Hingeless Enclosure Parts Diagram

17kW Home Standby Generator with 150 Amp ATS

Transfer Switch - Hingeless Enclosure Parts Diagram

  • Title

0010

ASSEMBLY, Enclosure

$

$

Not available

0010-10

ENCLOSURE

$

$

Not available

0010-20

Briggs & Stratton 770438

DOOR

Note: (Includes Decals)

$

$

Currently unavailable

0010-30

PANEL, Deadfront

$

$

Not available

0010-50

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0010-60

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0010-70

Briggs & Stratton B5763GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0060

NUT, Nylock #10-32

Note: (*See footnote)

$

$

Not available

0160

PANEL, Back

$

$

Not available

0180

Briggs & Stratton 770433

BRACKET

$25.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 204144GS

BREAKER, Circuit, 150A
(Superseded to 209168GS)

$246.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 192879GS

INSULATION, Circuit Breaker

$8.49

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 192696GS

TERMINAL, Neutral

$31.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 196094GS

LUG, Ground
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 22241GS

NUT, Hex, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2"

$5.49

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 202841GS

SUPPORT, Locking, Crct Brd

$5.49

$

Usually ships in 2-12 days

0

0310

Briggs & Stratton 771701

CONTROLLER

$394.99

$

Usually ships in 2-12 days

0

0320

Briggs & Stratton 310443GS

BOARD, Circuit

$506.99

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 201285GS

HARNESS, Wiring, ATS

$

$

Not available

0370

SCREW, Phillips Head, 1/4-20 x 3/4

Note: (*See footnote)

$

$

Not available

0390

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

0420

Briggs & Stratton 22127GS

NUT, Hex, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

0450

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0470

Briggs & Stratton 200020GS

SCREW, Trilobular, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0510

Briggs & Stratton 22152

WASHER, Lock - No. 10-32
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

0520

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5

$2.99

$

Usually ships in 2-12 days

0

0530

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

0540

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

1050

Briggs & Stratton 74138GS

ADAPTER, Male Disconnect

$17.99

$

Usually ships in 2-12 days

0

1060

Briggs & Stratton 319267GS

BAR, Bus

$16.99

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 84002607

CONTACTOR, 200A

$1062.99

$

Usually ships in 2-12 days

0

2010

Briggs & Stratton 208106GS

CURRENT TRANSFORMER

$32.99

$

Usually ships in 2-12 days

0

2020

Briggs & Stratton 770435

SCREW, Bonding

$7.99

$

Usually ships in 2-12 days

0
