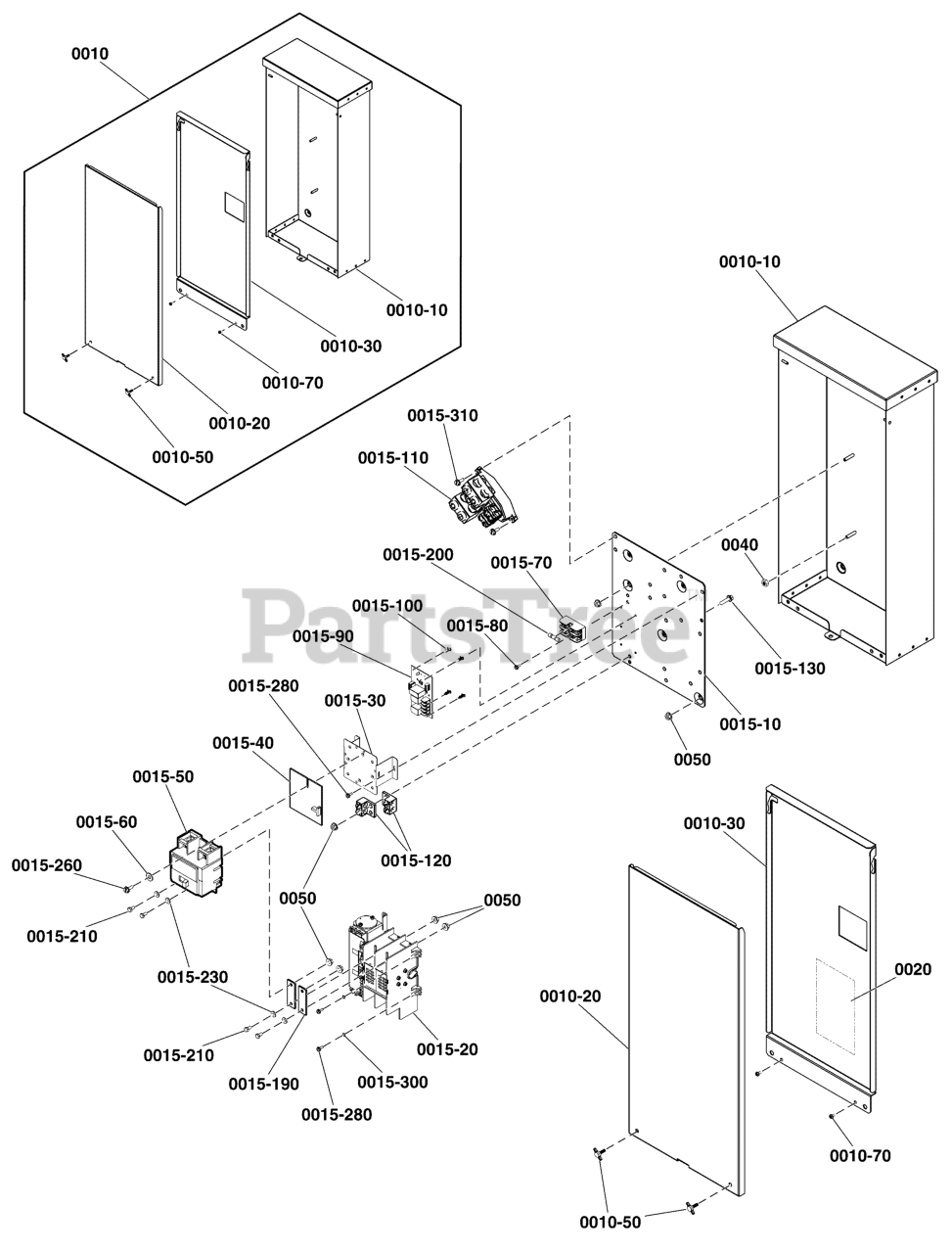

040626-01 - Briggs & Stratton 12kW Home Standby Generator with 200 Amp ATS Transfer Switch - Hingeless Enclosure Parts Diagram

12kW Home Standby Generator with 200 Amp ATS

Transfer Switch - Hingeless Enclosure Parts Diagram

  • Title

0010

ASSEMBLY, Enclosure

Note: (**See footnote)

$

$

Not available

0010-10

ENCLOSURE

Note: (**See footnote)

$

$

Not available

0010-20

Briggs & Stratton 84004672

DOOR

Note: (Incl. Ref. No. 0060)

$

$

Currently unavailable

0060

DECAL SHEET - WARNINGS

$

$

Not available

0010-30

Briggs & Stratton 84005082

PANEL, Deadfront

Note: (Incl. Ref. Nos. 0020, 0060)

$145.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0060

DECAL SHEET - WARNINGS

$

$

Not available

0010-50

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0010-70

Briggs & Stratton 703967

SCREW, #10-32 x 3/8, Torx Hex Washer Head Self-Tap, ZC/CL

$3.49

$

In Stock, Qty 20+

0

0015-10

PANEL, Back

Note: (**See footnote)

$

$

Not available

0015-20

Briggs & Stratton 84002607

CONTACTOR, 200A

$1062.99

$

Usually ships in 2-12 days

0

0015-30

Briggs & Stratton 770433

BRACKET

$25.99

$

Usually ships in 2-12 days

0

0015-40

Briggs & Stratton 192879GS

INSULATION, Circuit Breaker

$8.49

$

Usually ships in 2-12 days

0

0015-50

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$207.99

$

Usually ships in 2-12 days

0

0015-60

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5

$2.99

$

Usually ships in 2-12 days

0

0015-70

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0015-80

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0015-90

Briggs & Stratton 770434

BOARD, Circuit

$87.99

$

Usually ships in 2-12 days

0

0015-100

Briggs & Stratton 707397

SPACER

$9.99

$

Usually ships in 2-12 days

0

0015-110

Briggs & Stratton 84004679

ASSEMBLY, Neutral, 200A

$

$

Currently unavailable

0015-120

Briggs & Stratton 84004498

LUG

$8.49

$

Usually ships in 2-12 days

0

0015-130

SCREW, 1/4"-20 x 1"

$

$

Not available

0015-190

Briggs & Stratton 319267GS

BAR, Bus

$16.99

$

Usually ships in 2-12 days

0

0015-200

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0015-210

Briggs & Stratton 22287GS

SCREW, 1/4" - 20 x 3/4"

$3.49

$

Usually ships in 2-12 days

0

0015-260

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0015-280

Briggs & Stratton 194561GS

HHS, Trilobular, #10-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

0015-300

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

0015-310

Briggs & Stratton 32713GS

TAPTITE, #10-32 X 5/8

$3.49

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

0050

Briggs & Stratton 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 13

0
