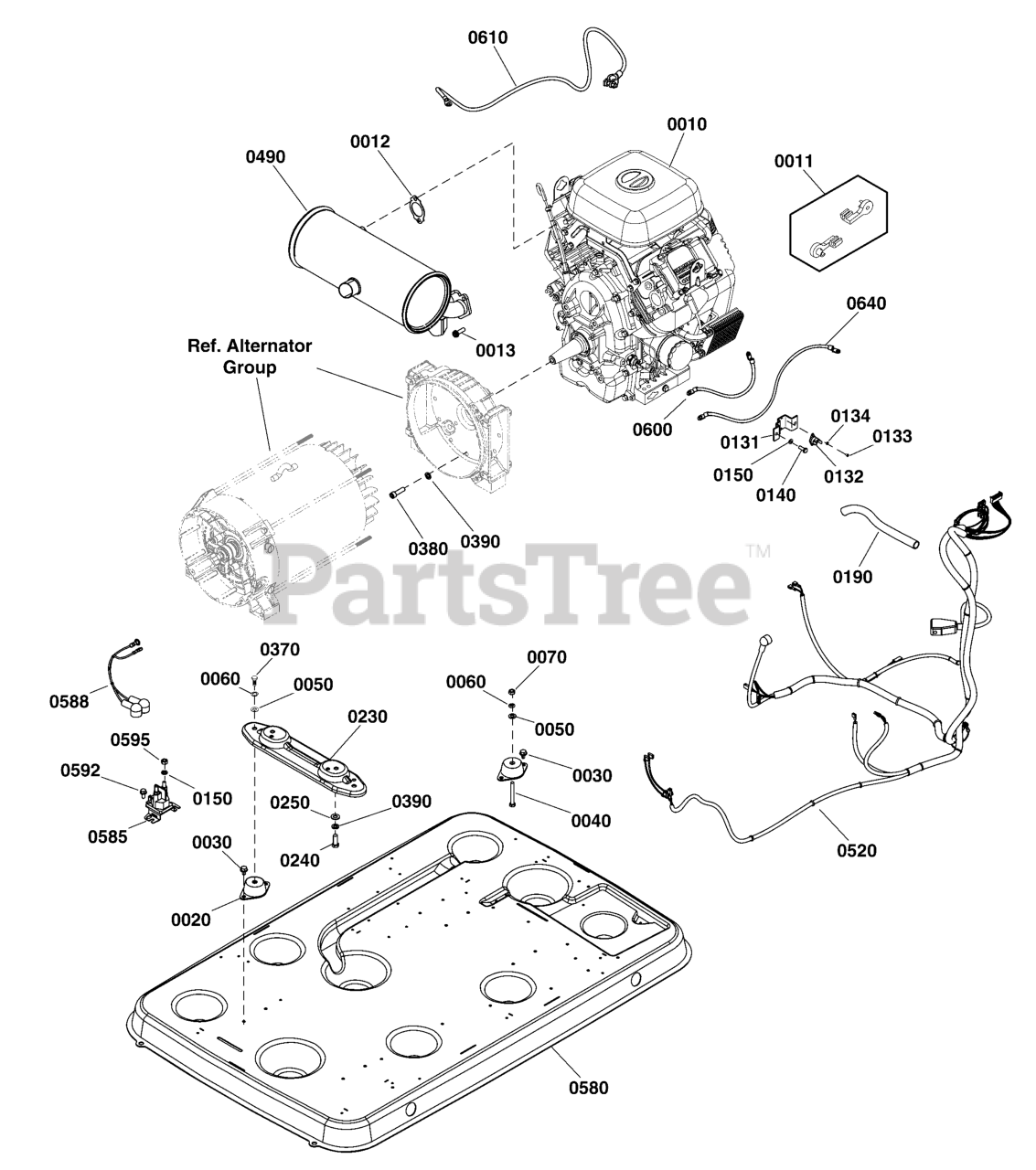

040610-01 - Briggs & Stratton 17kW Home Standby Generator Power Group Parts Diagram

17kW Home Standby Generator

Power Group Parts Diagram

  • Title

0010

**ENGINE

Note: (**See footnote)

$

$

Not available

0011

Briggs & Stratton 844862

Clevis

$

$

Currently unavailable

0012

Briggs & Stratton 807208

Gasket-Exhaust

$

$

Not available

0013

* SCREW, M8 x 25

Note: (*See footnote)

$

$

Not available

0020

Briggs & Stratton 187594GS

MOUNT, Vibration

$64.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 24910GS

*CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2

$3.99

$

Usually ships in 2-12 days

0

0040

* CAPSCREW, Hex Head, 5/16-18 x 2-1/2

Note: (*See footnote)

$

$

Not available

0050

Briggs & Stratton 22145GS

WASHER, Flat, 5/16 - M8

$2.99

$

In Stock, only 1 left!

0

0060

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

0070

Briggs & Stratton 22259GS

NUT, 5/16 - 18

$3.49

$

Usually ships in 2-12 days

0

0131

Briggs & Stratton 313561GS

PLATE, Temp Switch

$54.99

$

Usually ships in 2-12 days

0

0132

Briggs & Stratton 204426GS

SWITCH, Temperature

$38.99

$

Usually ships in 2-12 days

0

0133

Briggs & Stratton 708730

SCREW

$4.99

$

Usually ships in 2-12 days

0

0134

Briggs & Stratton 27772GS

LOCKWASHER, #4 Int.Tooth

$1.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 47411GS

SCREW

$

$

Not available

0150

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 5048681SM

HOSE, OIL DRAIN

$18.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton B198896GS

BRACKET, Mounting Alternator, Black

$41.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 29745GS

HHCS, 3/8" - 16 x 1"

$3.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 22131GS

WASHER, Flat 3/8"

$2.99

$

Usually ships in 2-12 days

0

0370

Briggs & Stratton 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR5

$3.99

$

In Stock, Qty 9

0

0380

Briggs & Stratton 23645GS

SOCKET HEAD CAP SCREW, 3/8-16 x 1-1/4"

$4.49

$

Usually ships in 2-12 days

0

0390

Briggs & Stratton 22237GS

WASHER, Locking, 3/8

$2.49

$

Usually ships in 2-12 days

0

0490

Briggs & Stratton 314663GS

MUFFLER

$410.99

$

Usually ships in 2-12 days

0

0520

Briggs & Stratton 772380

HARNESS, Wire, Main

$402.99

$

Usually ships in 2-12 days

0

0580

Briggs & Stratton 706061

BASE

$979.99

$

Usually ships in 2-12 days

0

0585

Briggs & Stratton 772333

SOLENOID, Starter

$12.99

$

Usually ships in 2-12 days

0

0588

Briggs & Stratton 772381

HARNESS, Intermediate, Relay

$21.99

$

Usually ships in 2-12 days

0

0592

Briggs & Stratton 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 7

0

0595

Briggs & Stratton 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0600

Briggs & Stratton 706527

WIRE, Ground

$31.99

$

Usually ships in 2-12 days

0

0610

Briggs & Stratton 314640GS

WIRE, Battery, Ground

$96.99

$

Usually ships in 2-12 days

0

0640

Briggs & Stratton 772393

CABLE, Ground

$42.99

$

Usually ships in 2-12 days

0
