040579-00 - Briggs & Stratton Fortress 12kW Home Standby Generator Power Group Parts Diagram

Fortress 12kW Home Standby Generator

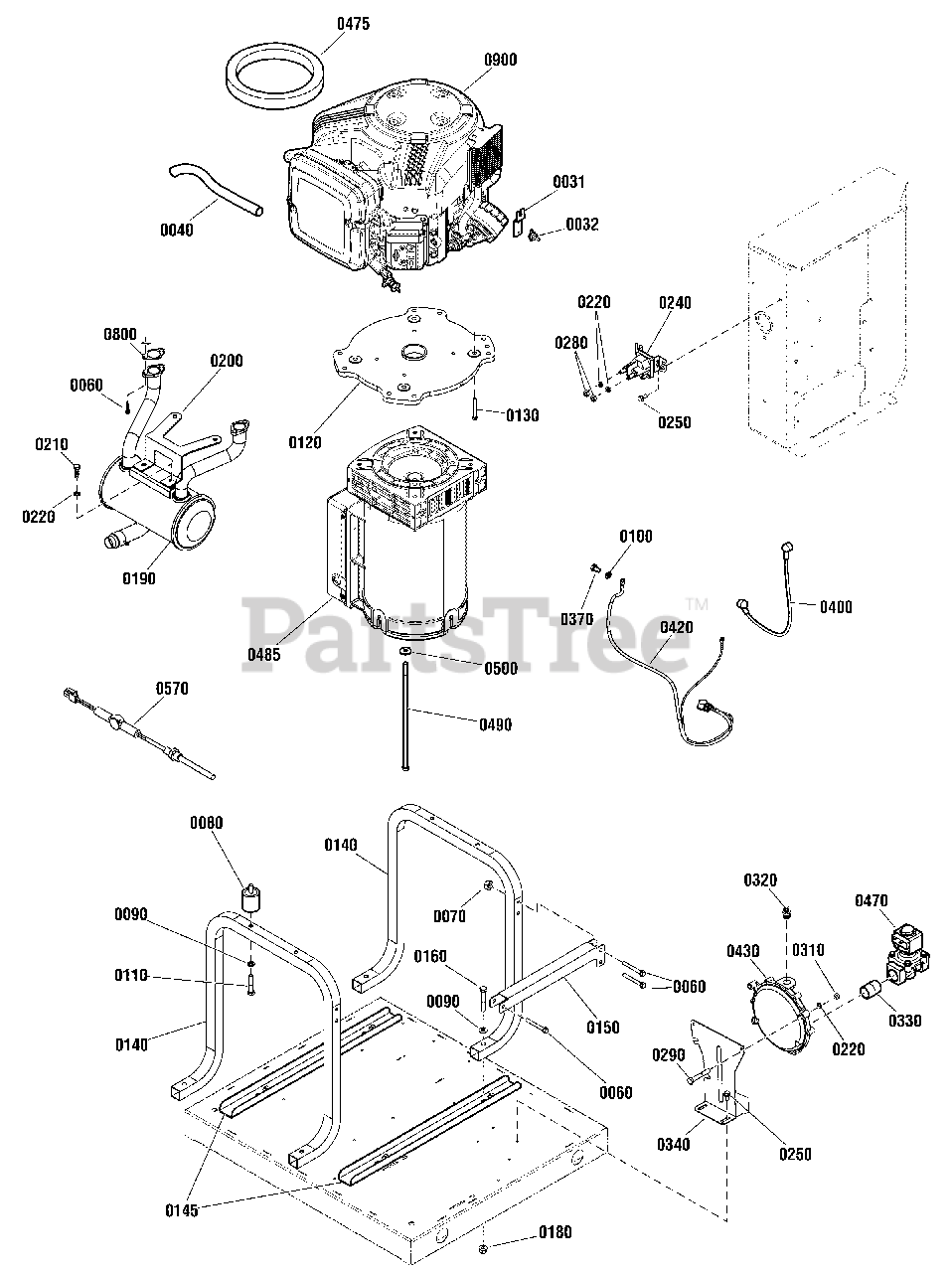

Power Group Parts Diagram

  • Title

0031

Briggs & Stratton 195124GS

PLATE, Temp Switch

$21.99

$

Usually ships in 2-12 days

0

0032

Briggs & Stratton 204426GS

SWITCH, Temperature

$38.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 1723165SM

HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings

$20.99

$

In Stock, Qty 9

0

0060

Briggs & Stratton 691902

Screw

$3.49

$

In Stock, only 4 left!

0

0070

* NUT-1/4-20

$

$

Not available

0080

Briggs & Stratton 189108GS

MOUNT, Vibration

$9.49

$

Usually ships in 2-12 days

0

0090

* WASHER, Flat, M8 (or 5/16)

$

$

Not available

0100

* WASHER, Lock, M8 (or 5/16)

$

$

Not available

0110

* CAPSCREW, Hex Head, M8-1.25 x 40

$

$

Not available

0120

Briggs & Stratton 319353GS

ADAPTER-ENGINE

$159.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 704010

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2 (For 1692768)

$4.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton BF319470GS

CRADLE

$195.99

$

Usually ships in 2-12 days

0

0145

Briggs & Stratton 706923

PLATE, CRADLE SUPPORT

$37.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 319471GS

BRACKET

$72.99

$

Usually ships in 2-12 days

0

0160

* CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

0180

* NUT, Flange, 5/16-18

$

$

Not available

0190

Briggs & Stratton 706924

MUFFLER

$323.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 704682

BRACKET, Muffler

$52.99

$

Usually ships in 2-12 days

0

0210

Hex Head Cap Screw M6-1.0 x 16

$

$

Not available

0220

* WASHER, Lock, M6 (or 1/4)

$

$

Not available

0240

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

0250

Briggs & Stratton 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 7

0

0280

* NUT, KEPS, 1/4-20

$

$

Not available

0290

* CAPSCREW, Hex Head, M6-1.0 x 30

$

$

Not available

0310

* NUT, Hex, M6

$

$

Not available

0320

Briggs & Stratton 202382GS

FITTING, 1/2 Flare 3/8 - 18 NPT

$9.99

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 206976GS

FITTING

$10.99

$

Usually ships in 2-12 days

0

0340

Briggs & Stratton 706379

BRACKET

$19.99

$

Usually ships in 2-12 days

0

0370

* CAPSCREW, M8-1.25 x 12

$

$

Not available

0400

Briggs & Stratton 316814GS

WIRE

$82.99

$

Usually ships in 2-12 days

0

0420

Briggs & Stratton 316817GS

WIRE

$104.99

$

Usually ships in 2-12 days

0

0430

Briggs & Stratton 706992

REGULATOR-FUEL

$295.99

$

Usually ships in 2-12 days

0

0470

Briggs & Stratton 318880GS

SOLENOID, Fuel

$365.99

$

Usually ships in 2-12 days

0

0475

Briggs & Stratton 316881GS

SEAL

$51.99

$

Usually ships in 2-12 days

0

0485

Briggs & Stratton 706952

ALTERNATOR

$2792.99

$

Usually ships in 2-12 days

0

0490

Briggs & Stratton 706941

BOLT

$11.99

$

Usually ships in 2-12 days

0

0500

Briggs & Stratton 96796GS

WASHER, Flat M8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

0570

Briggs & Stratton 197616GS

HEATER, Oil, 240V
(Superseded to 771985)

$152.99

$

Usually ships in 2-12 days

0

0800

Briggs & Stratton 806425

Gasket-Exhaust

$5.49

$

In Stock, Qty 10

0

0900

Briggs & Stratton 389575-0001-E1

** ENGINE

$

$

Not available
